Digital Transmission Range (TR) Sensor: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
  2. Disconnect the connector.

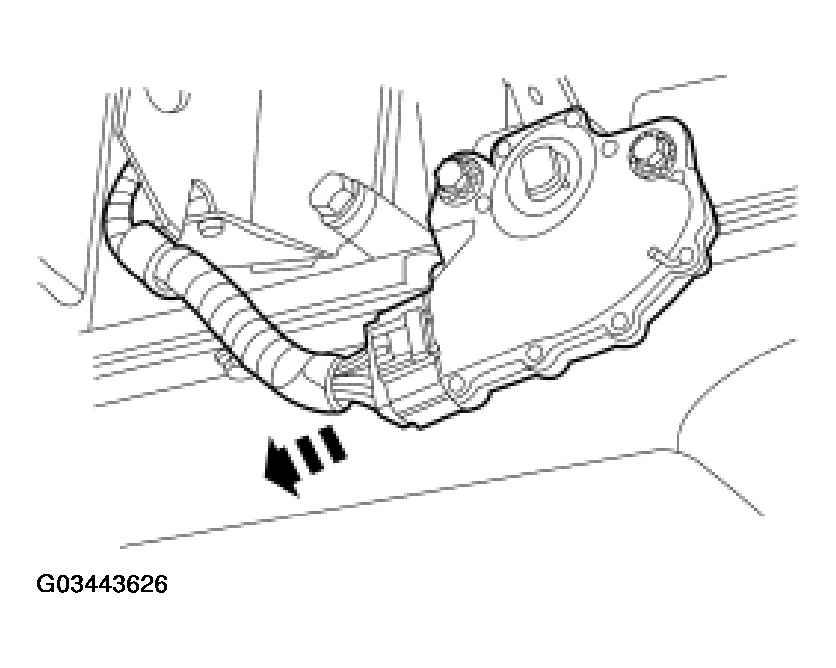

    Fig 1: Disconnecting Connector
    G03443626Courtesy of FORD MOTOR CO.
  3. Disconnect the shift cable at the manual control lever.

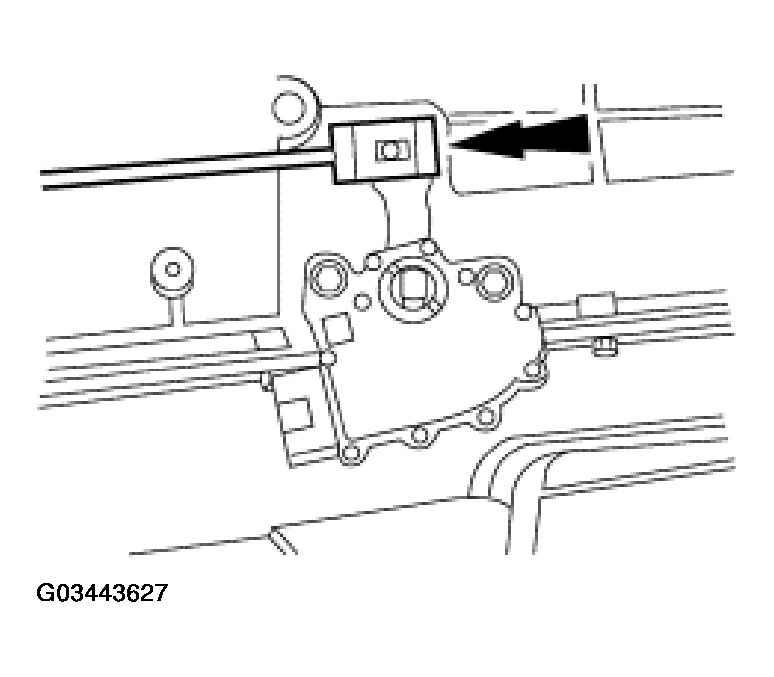

    Fig 2: Disconnecting Shift Cable At Manual Control Lever
    G03443627Courtesy of FORD MOTOR CO.
  4. Remove the digital transmission range (TR) sensor.
    1. Remove the bolts.
    2. Remove the digital transmission range (TR) sensor.

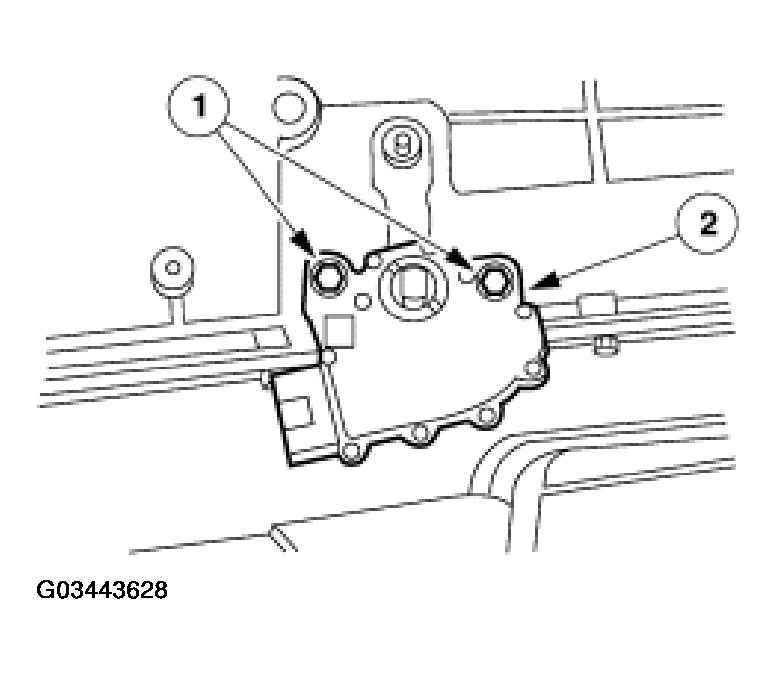

    Fig 3: Removing Digital Transmission Range (TR) Sensor & Bolts
    G03443628Courtesy of FORD MOTOR CO.
