Low and Reverse Drive System

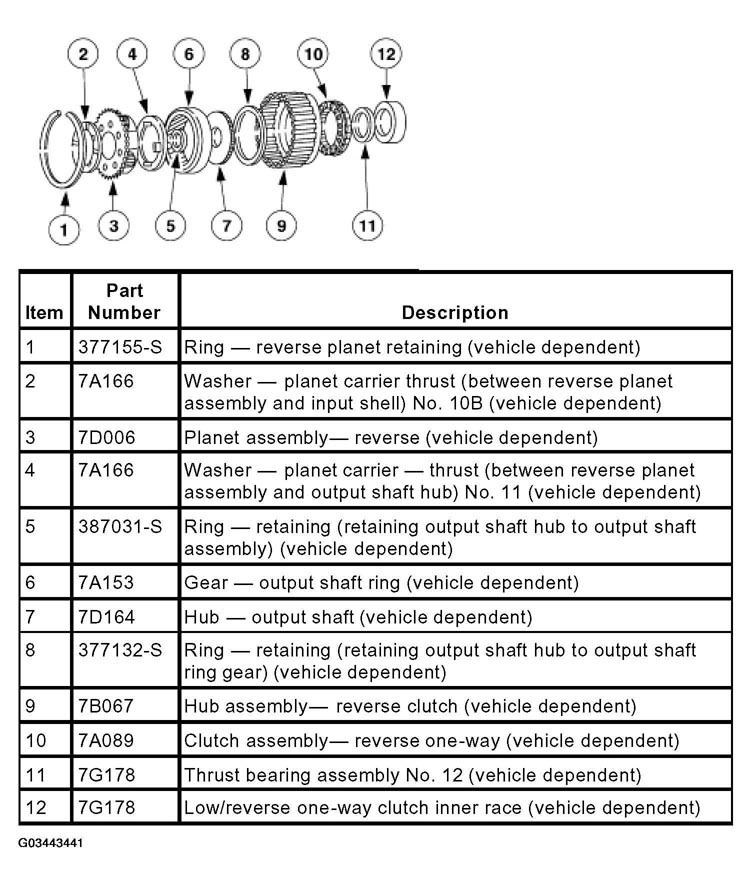

The reverse planetary assembly consists of the reverse planetary carrier, reverse planet gears, the reverse ring gear, the reverse ring gear hub, the reverse clutch hub and the low-reverse one-way clutch assembly.
The reverse ring gear hub is splined to the output shaft and to the reverse ring gear. The reverse ring gear hub is laterally held by a needle bearing on the inner race of the low-reverse one-way clutch and a snap ring on the output shaft. The reverse planet assembly is splined to the low-reverse clutch hub. The low-reverse clutch hub is connected by the reverse clutch to the case. The inner race of the one-way clutch is bolted to the case.
The reverse clutch assembly is activated in REVERSE gear and in MANUAL 1. The reverse clutch bypasses the reverse one-way clutch during coast and MANUAL 1. The reverse clutch holds the reverse planet assembly in REVERSE gear to enable the sun gear to drive the reverse ring gear in the opposite direction.
