Wheel Track

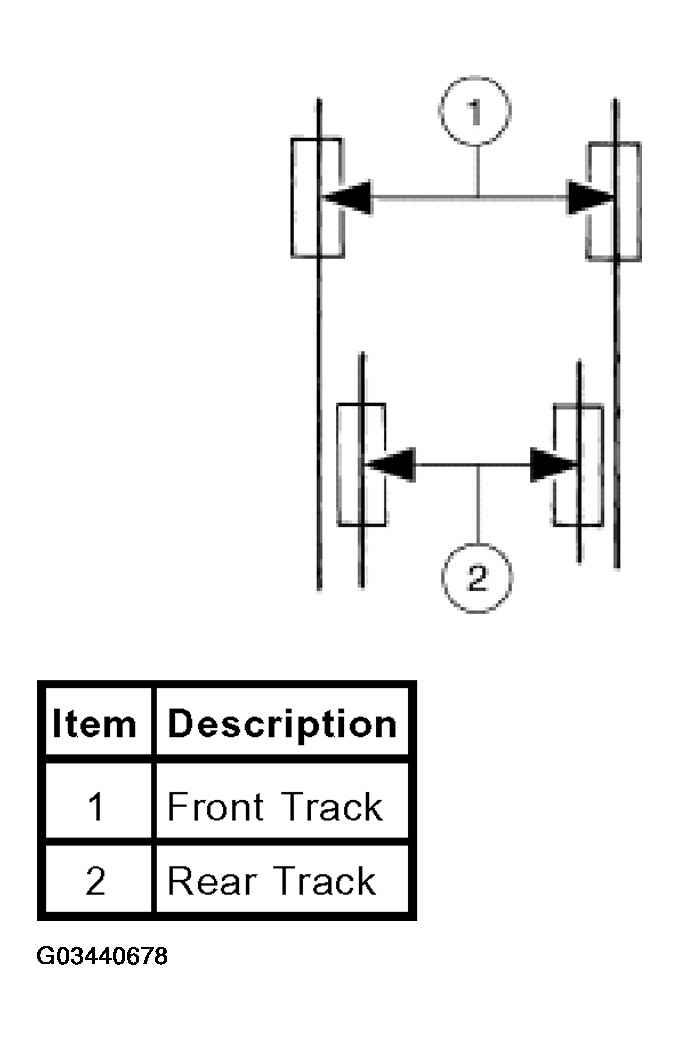

Fig 1: Identifying Wheel Track
G03440678Courtesy of FORD MOTOR CO.

By design the vehicle has a front track that is wider at the front than the rear. Front track is the distance between the two front tires; rear track is the distance between the two rear tires.
