Wheel Alignment Angles: Caster

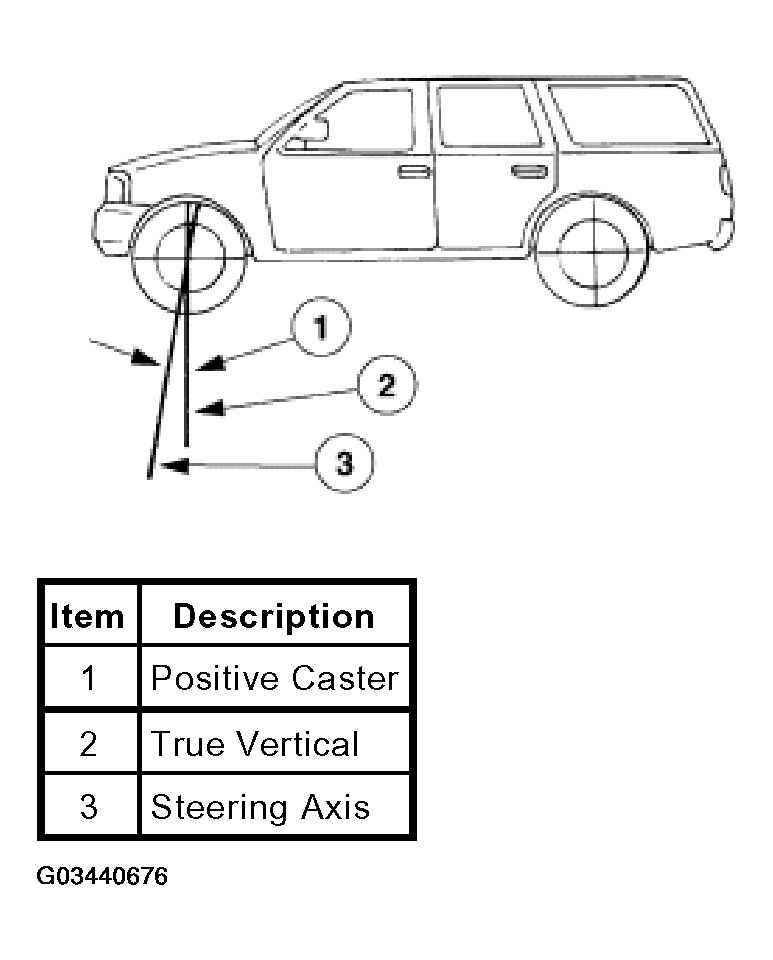

Fig 1: Identifying Caster

Courtesy of FORD MOTOR CO.

Caster is the tilting of the steering axis either forward or backward from vertical. A backward tilt is positive (+) and a forward tilt is negative (-).
