Steering System

NOTE: Navigator vehicles are equipped with an electronic variable orifice (EVO) power steering system. For additional information, refer to DIAGNOSIS AND TESTING  in this article.

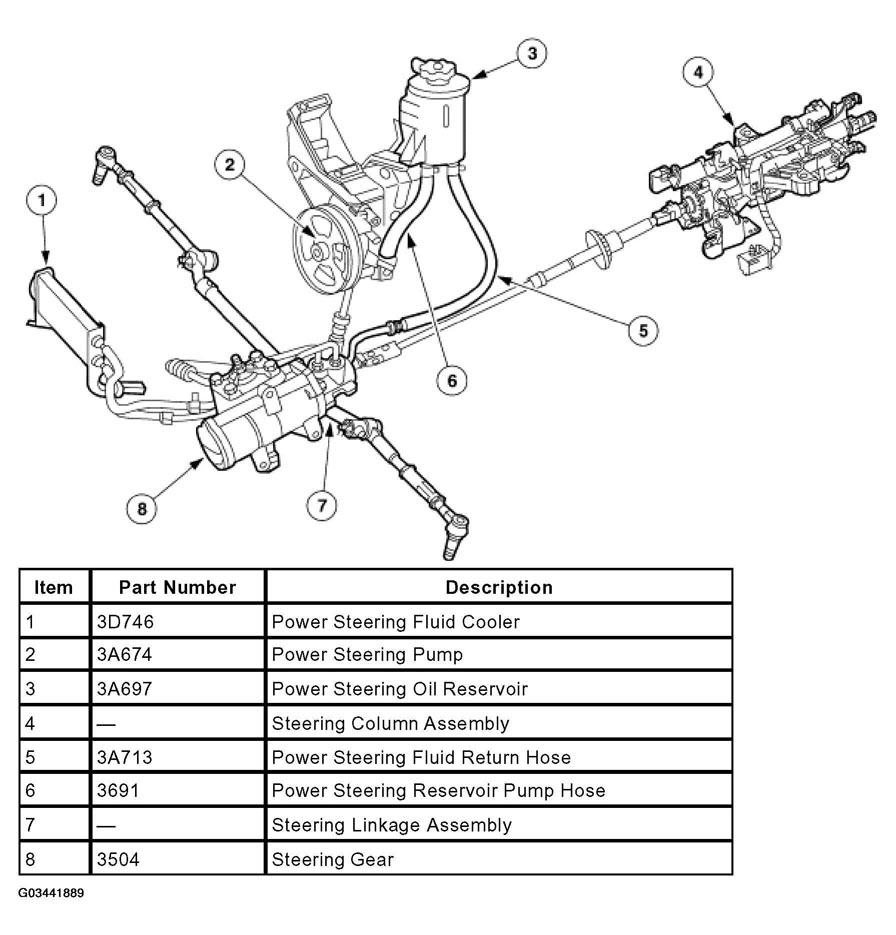

Fig 1: Identifying Steering System Components
G03441889Courtesy of FORD MOTOR CO.
