Removal and Installation

WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to removal of the power liftgate module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new power liftgate module once installed. For additional information, refer to MODULE CONFIGURATION .

Remove the rear quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the power liftgate module.
1. Disconnect the electrical connectors.
2. Remove the bolts.

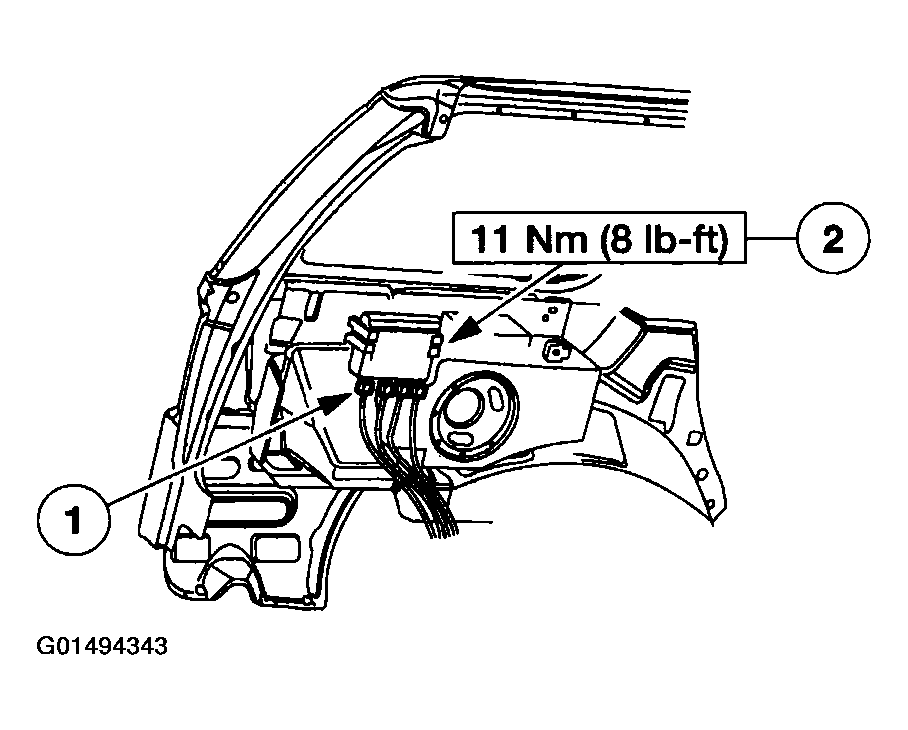

  Fig 1: Removing Power Liftgate Module
  Courtesy of FORD MOTOR CO.

NOTE: Once the new power liftgate module is installed, it is necessary to download the module configuration information from the diagnostic tool into the new power liftgate module. For additional information, refer to MODULE CONFIGURATION .

To install, reverse the removal procedure.
