Battery Junction Box
NOTE:

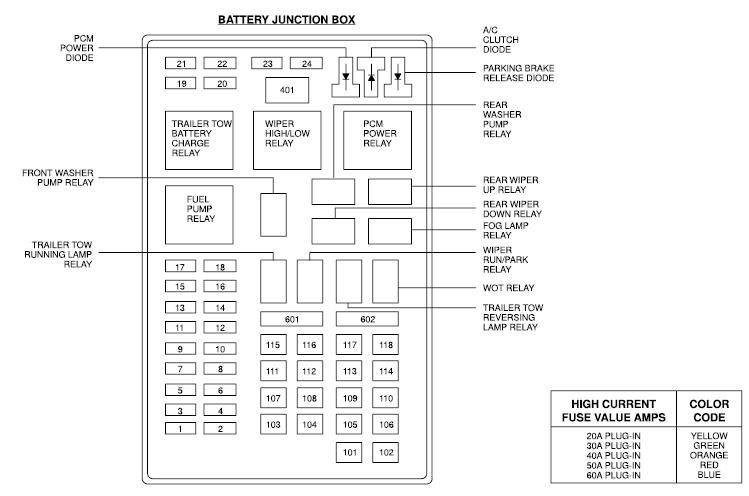

Battery junction box is located on driver's side of engine compartment. See Fig 1.
BATTERY JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Front Washer Pump Relay |
| Trailer Tow Running Lamp Relay |
| Fuel Pump Relay |
| Trailer Tow Battery Charge Relay |
| Wiper High/Low Relay |
| PCM Power Relay |
| Rear Washer Pump Relay |
| Rear Wiper Up Relay |
| Fog Lamp Relay |
| Rear Wiper Down Relay |
| Wiper Run/Park Relay |
| WOT Relay |
| Trailer Tow Reversing Lamp Relay |
BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Mini Fused | Amps | Circuits Protected |
|---|---|---|
| 1 | 20 | Auxiliary Power Socket |
| 2 | 30 | PCM Power Relay |
| 3 | 30 | Main Light Switch, Headlamp Relay, Multifunction Switch |
| 4 | 20 | Console Auxiliary Power Socket |
| 5 | 20 | Trailer Tow Running Lamp Relay, Trailer Tow Reversing Lamp Relay |
| 6 | 15 | Main Light Switch, Central Security Module |
| 7 | 20 | Central Security Module |
| 8 | 30 | Central Security Module |
| 9 | 15 | Daytime Running Lamps (DRL), Resistor, Fog Lamp Relay |
| 10 | 20 | Fuel Pump Relay |
| 11 | 20 | Charging System |
| 12 | 10 | Rear Wipers Up and Down |
| 13 | 15 | WOT Relay |
| 14 | - | NOT USED |
| 15 | 10 | Right Running Board Lamp, Left Running Board Lamp |
| 16 | - | NOT USED |
| 17 | 10 | Radio, Vent Windows |
| 18 | 15 | Fuel Injectors, PCM |
| 19 | - | NOT USED |
| 20 | - | NOT USED |
| 21 | - | NOT USED |
| 22 | - | NOT USED |
| 23 | 15 | Heated Oxygen Sensors, Transmission |
| 24 | - | NOT USED |
| 101 | 30 | Trailer Two Battery Charge Relay |
| 102 | 50 | (4WABS) Module |
| 103 | 50 | Central Junction Box |
| 104 | 30 | Transfer Case Shift Relays, Torque on Demand (TOD) Relay |
| 105 | 40 | Blower Relay |
| 106 | - | NOT USED |
| 107 | 30 | Passenger Power Seat Control Switch, Passenger Power Lumbar Switch |
| 108 | 30 | Trailer Tow (Battery Feed) |
| 109 | 50 | Air Suspension Compressor Relay |
| 110 | 30 | Temperature Controlled Seat Modules, Heated Seat Modules |
| 111 | 40 | Ignition Switch (B4 and B5) |
| 112 | 30 | Driver Power Seat Control Switch, Driver Power Lumbar Switch, Seat Module, Adjustable Pedal Switch |
| 113 | 40 | Ignition Switch (B1 and B3) |
| 114 | 30 | Auxiliary A/C Relay |
| 115 | - | NOT USED |
| 116 | 40 | Heated Grid Relay, Heated Mirrors |
| 117 | - | NOT USED |
| 118 | - | NOT USED |
| 601 c.b. | 30 | Acc Delay Relay to Windows and Sliding Roof Panel |
| 602 c.b. | - | NOT USED |
