Torque Converter End Play Check

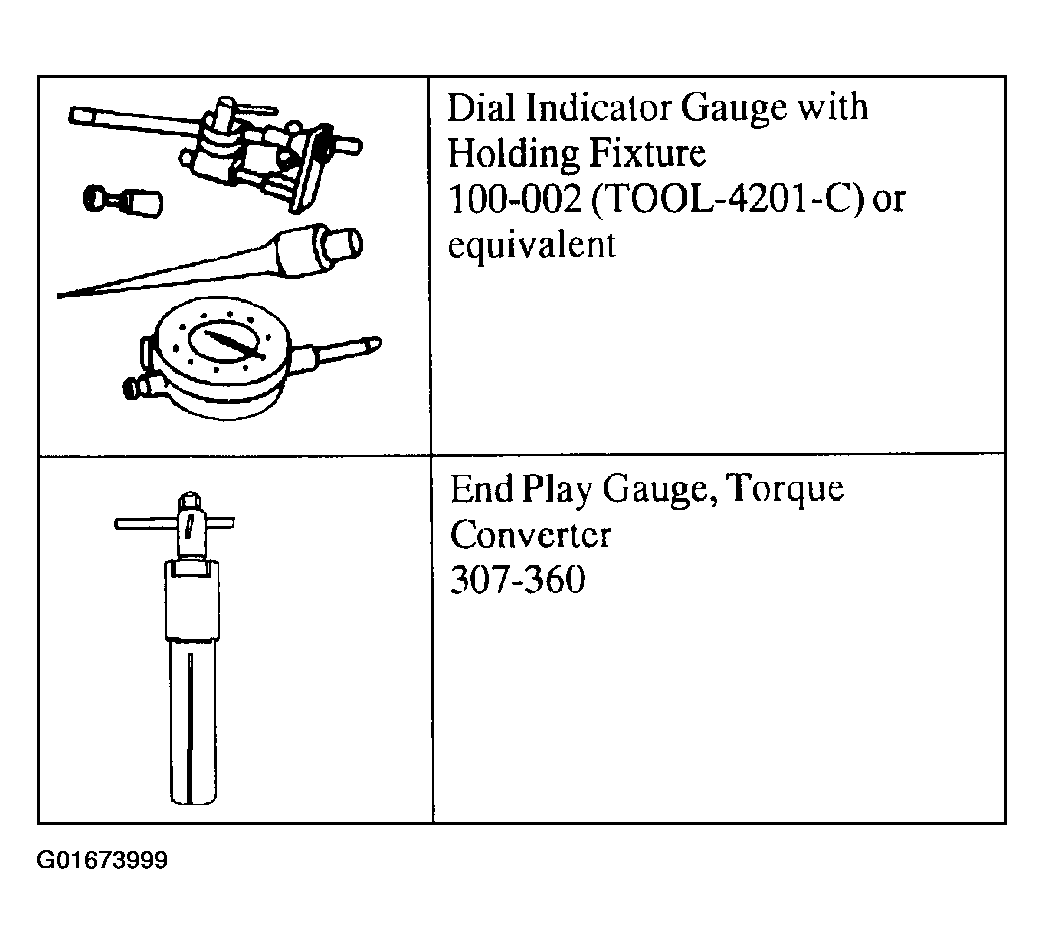

Fig 1: Identifying Special Tools

Courtesy of FORD MOTOR CO.

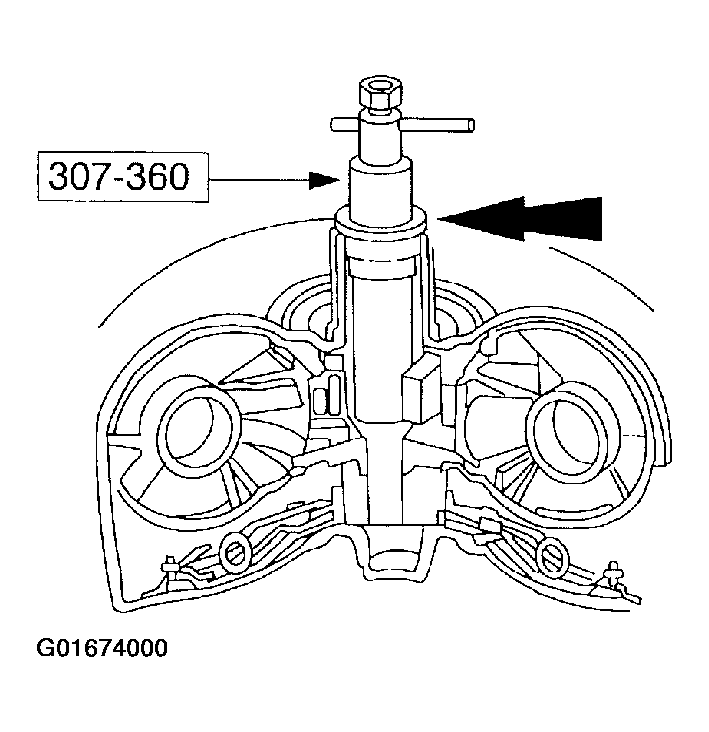

Install the special tool into the torque converter until it bottoms out.
- Tighten the inner post until the tool is securely locked.

  Fig 2: Installing Special Tool Into Torque Converter
  Courtesy of FORD MOTOR CO.

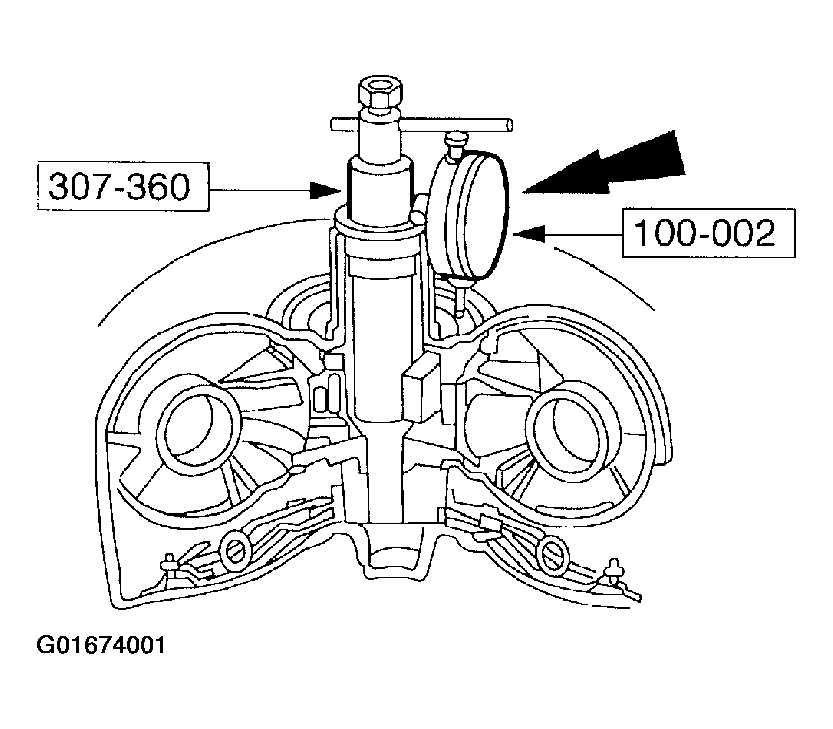

Install the special tool on the converter impeller housing and zero the dial.

Fig 3: Installing Dial Indicator
Courtesy of FORD MOTOR CO.

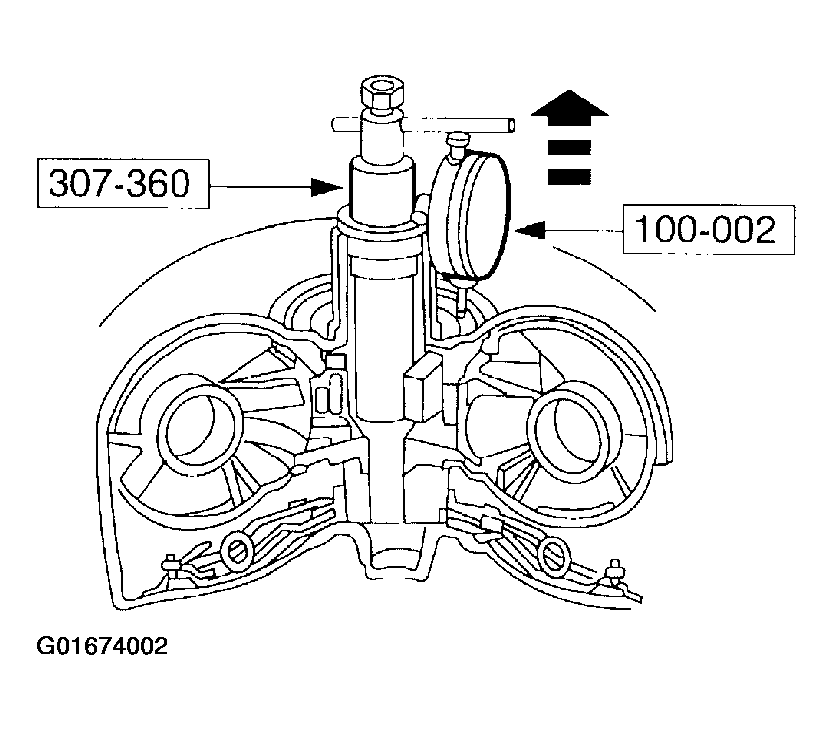

Lift up on the special tool and note the dial indicator reading. If the reading exceeds end play limits, install new or rebuilt torque converter.

Fig 4: Checking Torque Converter End Play
Courtesy of FORD MOTOR CO.

Fig 5: Torque Converter End Play Specifications

Courtesy of FORD MOTOR CO.
