Overdrive Planetary Gears: Assembly

    NOTE: Thoroughly clean all parts and blow dry with moisture-free compressed air.
    NOTE: Use petroleum jelly to hold the No. 2 overdrive planetary thrust bearing in place.

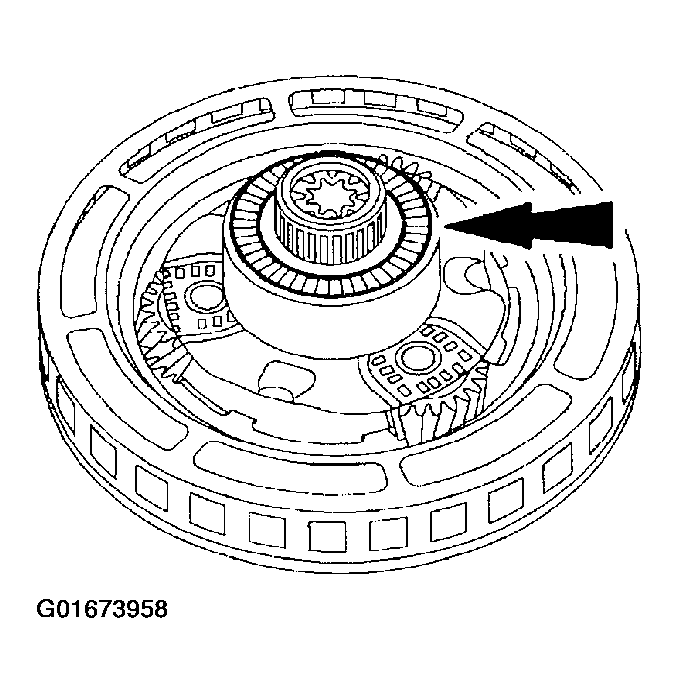

    Fig 1: Installing No. 2 Overdrive Planetary Thrust Bearing
    G01673958Courtesy of FORD MOTOR CO.
  1. Install the No. 2 overdrive planetary thrust bearing.
  2. Install the overdrive planetary gear carrier into the center shaft and overdrive.

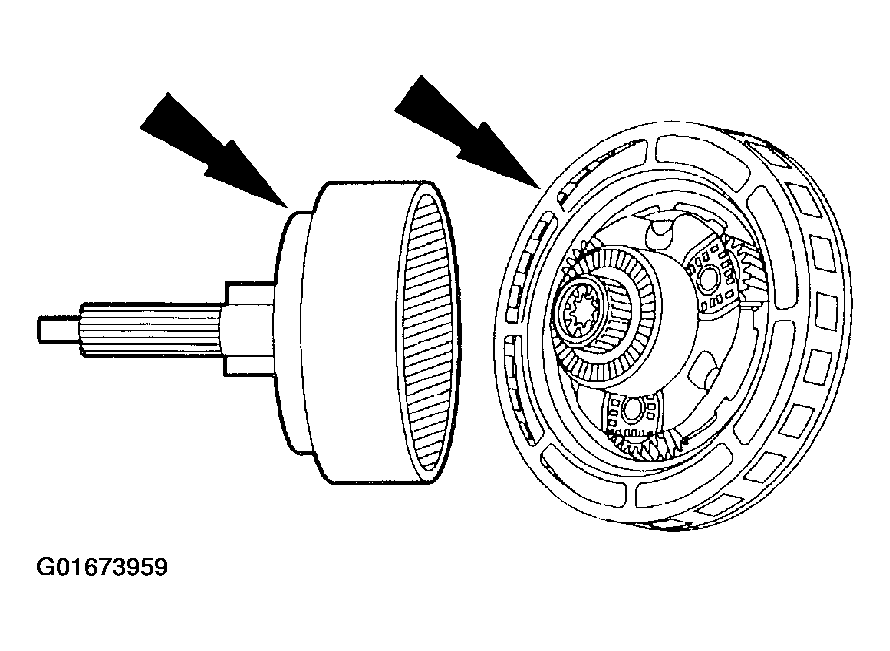

    Fig 2: Installing Overdrive Planetary Gear Carrier Into The Center Shaft & Overdrive
    G01673959Courtesy of FORD MOTOR CO.
  3. Install the overdrive sun gear with the recessed gear teeth facing toward the adapter.

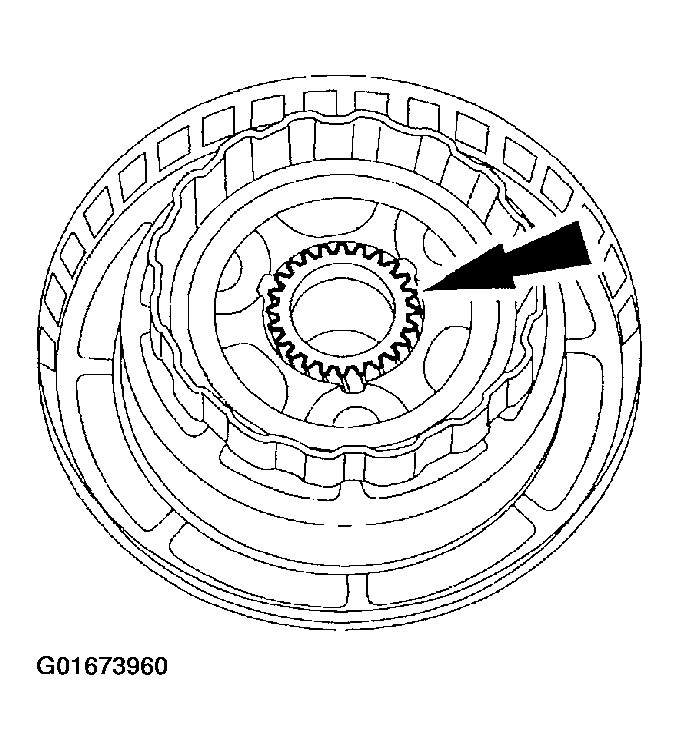

    Fig 3: Installing Overdrive Sun Gear
    G01673960Courtesy of FORD MOTOR CO.
    4. NOTE: Inspect the sun gear for damaged or worn teeth.
  4. Install the coast clutch-to-overdrive carrier adapter.

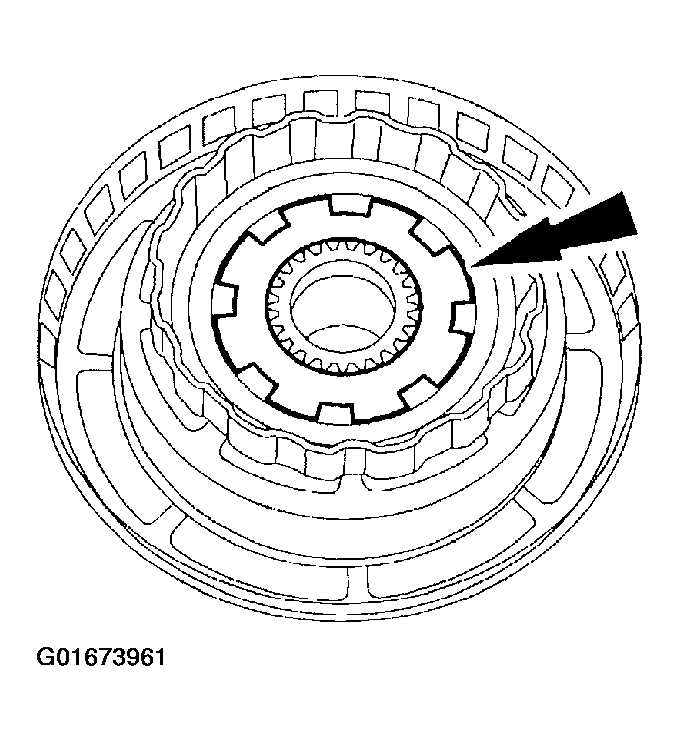

    5. Fig 4: Installing Coast Clutch-To-Overdrive Carrier Adapter
    G01673961Courtesy of FORD MOTOR CO.
