Home >> Lincoln >> 2002 >> LS 3.9 A >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Disassembly & Assembly Of Subassemblies >> Overdrive Planetary & One-Way Clutch Assembly >> Notes

Overdrive Planetary & One-Way Clutch Assembly: Notes

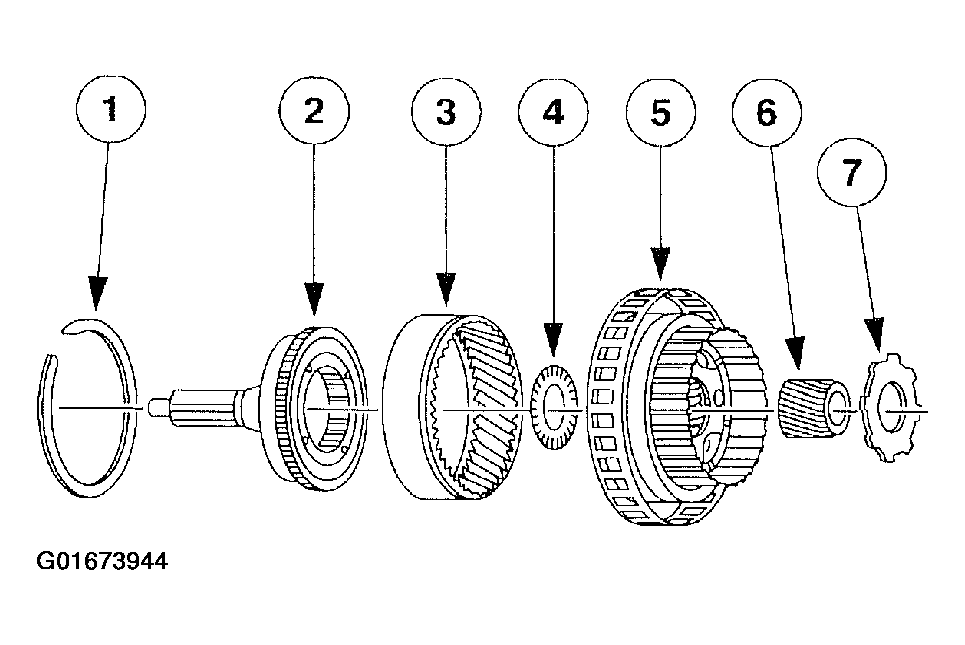

Fig 1: Overdrive Planetary & One-Way Clutch Assembly
G01673944Courtesy of FORD MOTOR CO.
Fig 2: Part Number & Description Table (Items 1-2)
G01673945Courtesy of FORD MOTOR CO.

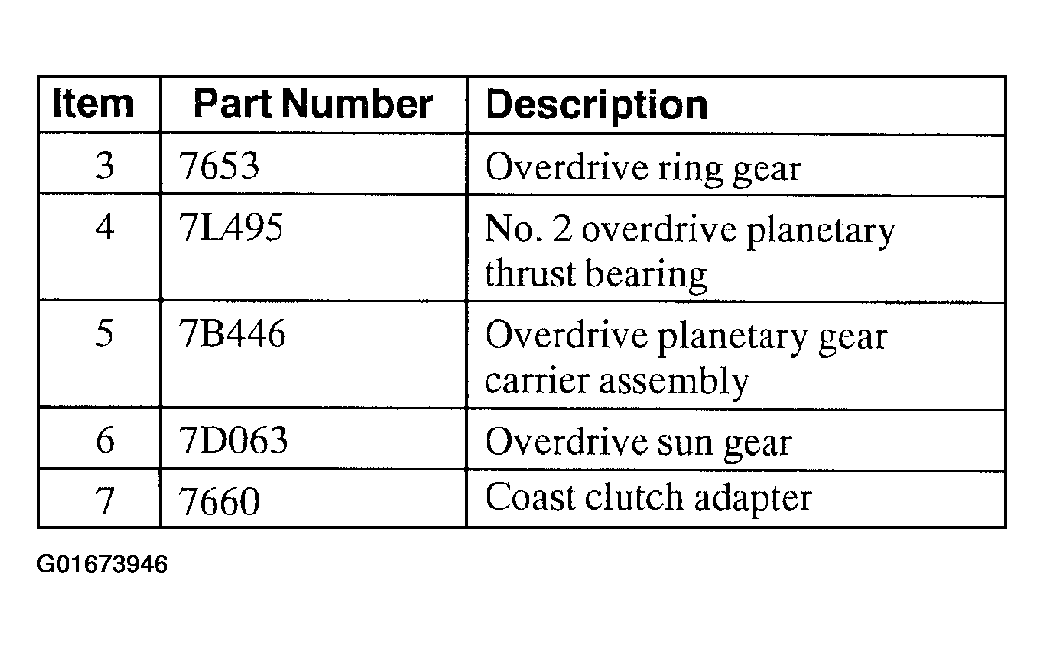

Fig 3: Part Number & Description Table (Items 3-7)
G01673946Courtesy of FORD MOTOR CO.
