Forward Clutch - Bonded Piston: Notes

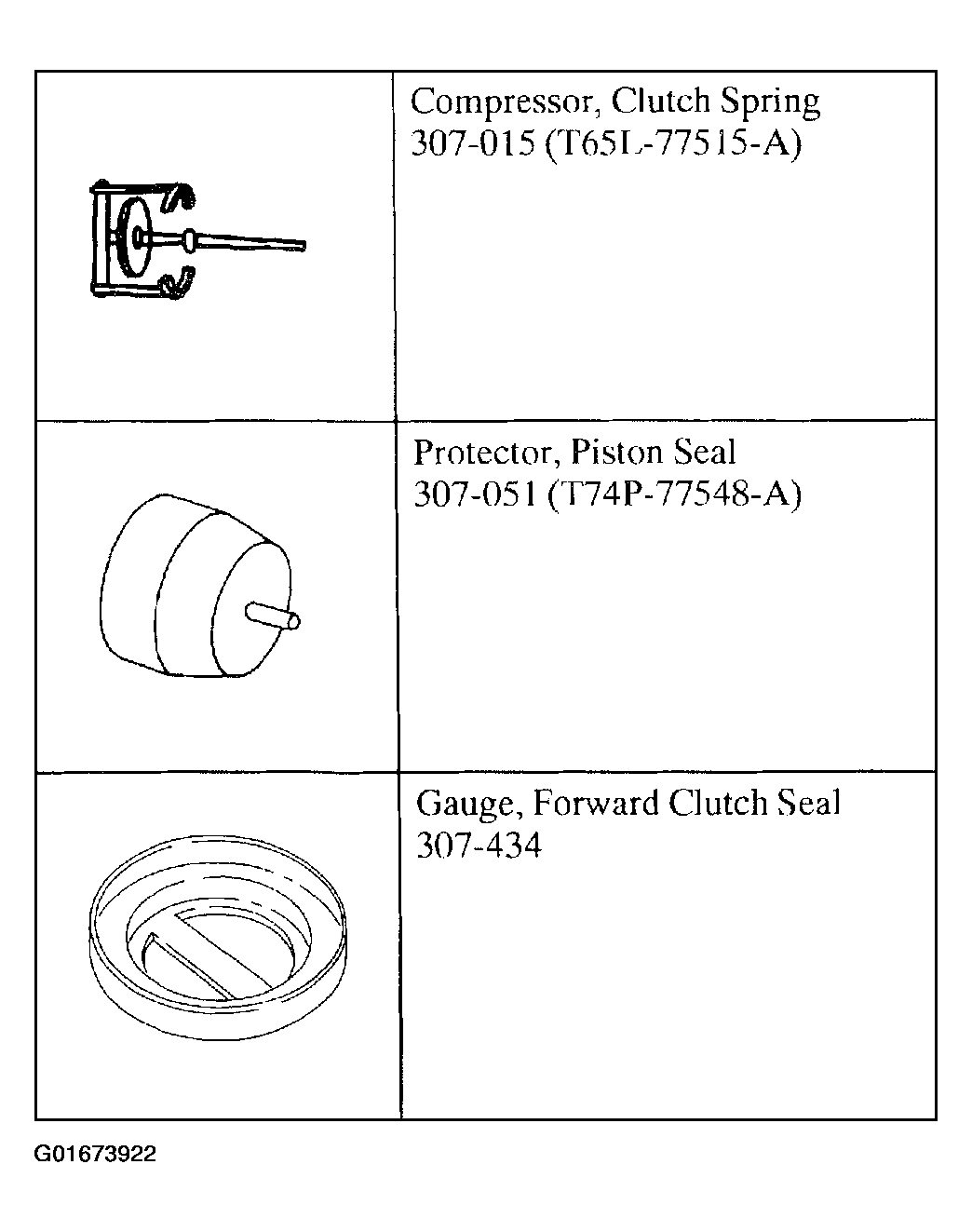

Fig 1: Identifying Special Tools
G01673922Courtesy of FORD MOTOR CO.

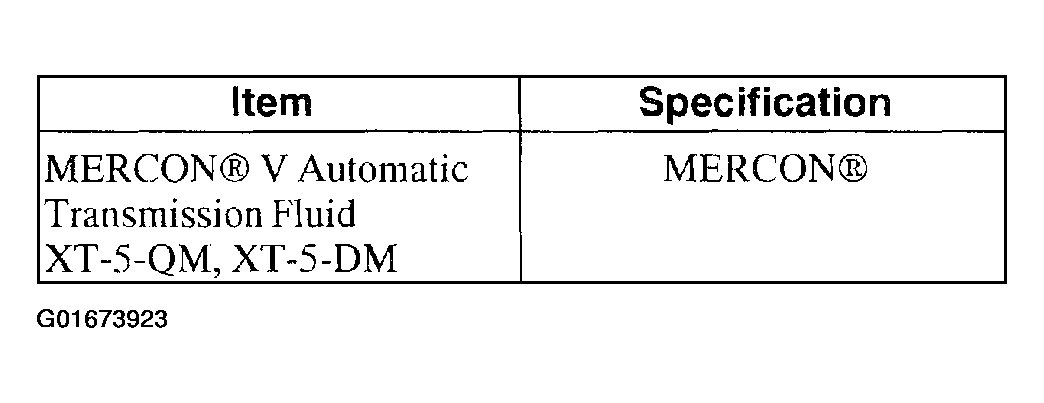

Fig 2: Identifying Transmission Fluid
G01673923Courtesy of FORD MOTOR CO.

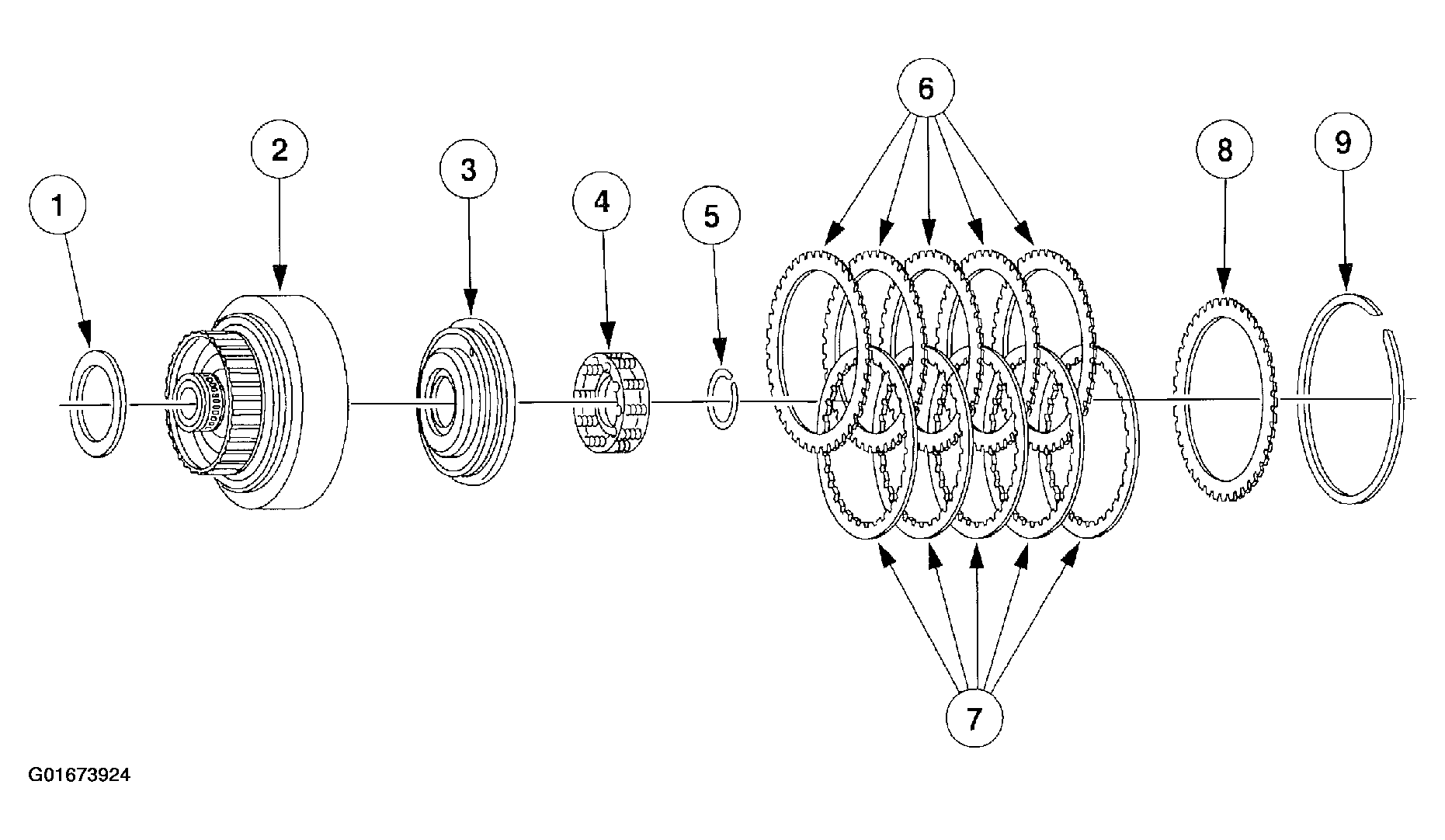

Fig 3: Forward Clutch Assembly
G01673924Courtesy of FORD MOTOR CO.

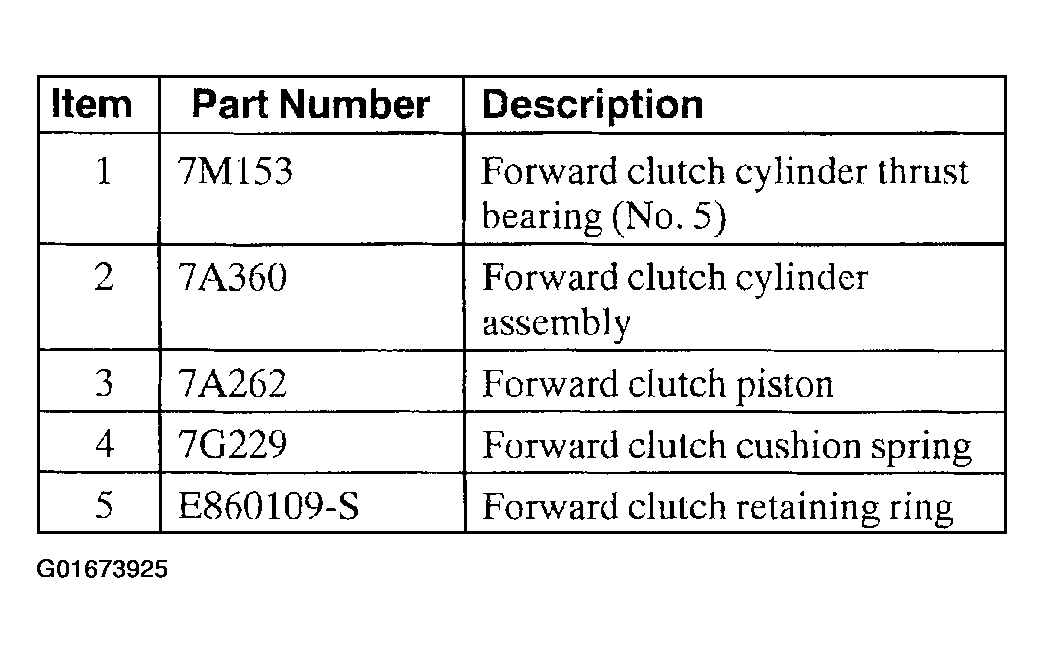

Fig 4: Part Number & Description Table (Items 1-5)
G01673925Courtesy of FORD MOTOR CO.

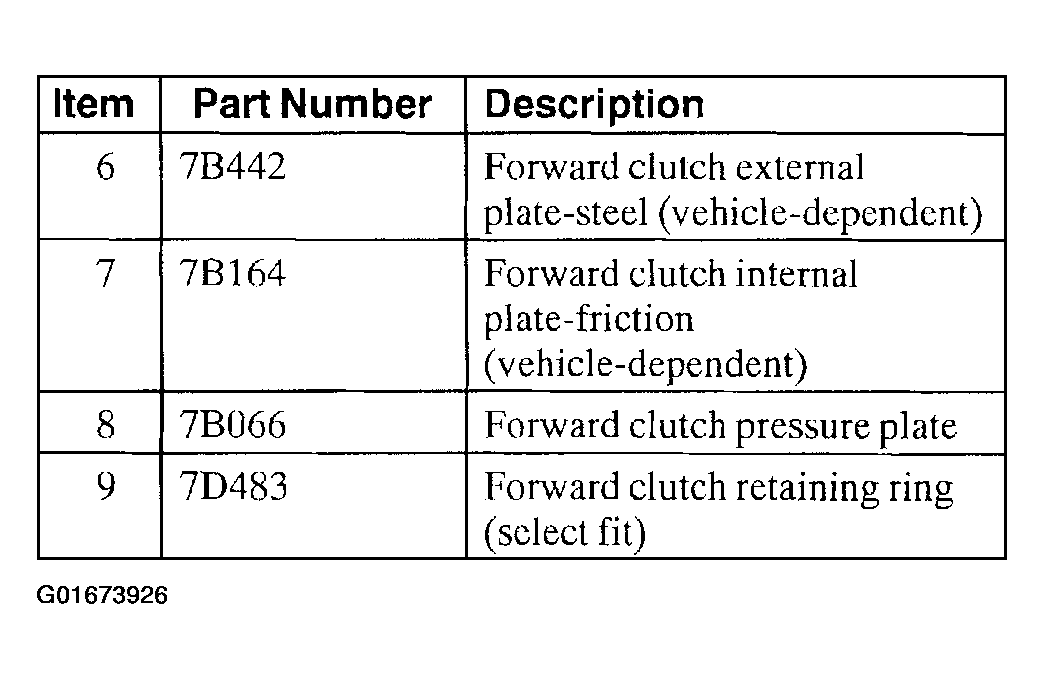

Fig 5: Part Number & Description Table (Items 6-9)
G01673926Courtesy of FORD MOTOR CO.
