Direct Clutch Drum Assembly: Assembly

  1. Inspect the clutch components for damage or wear. Install new components as necessary.
    • Inspect the drum surface for damage.
    • Inspect the clutch piston bore, and piston.
    • Check the fluid passages for obstructions. All fluid passages must be clean and free of obstructions.
    • Inspect the clutch plates for damage.
    • Inspect the clutch springs.
  2. CAUTION: The lip seals must be positioned as shown. Care must be taken to prevent rollover of the lip seal.
    NOTE: Use new seals to help prevent seal failures.

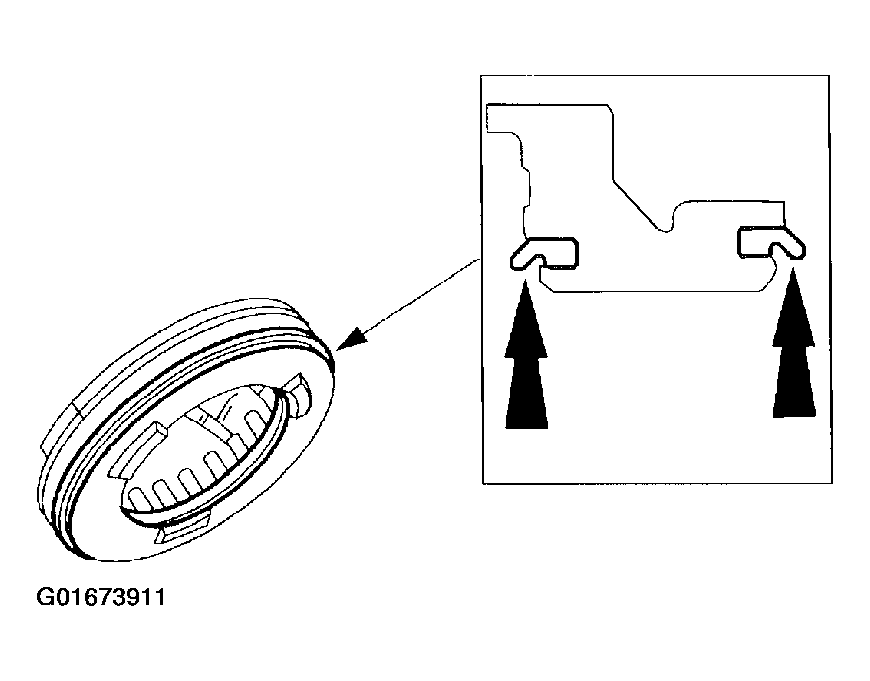

    Fig 1: Installing Direct Clutch Piston Inner Seal & Direct Clutch Piston Outer Seal
    G01673911Courtesy of FORD MOTOR CO.
  3. Install the new direct clutch piston inner seal and the direct clutch piston outer seal.
  4. Verify the check ball is free to move.

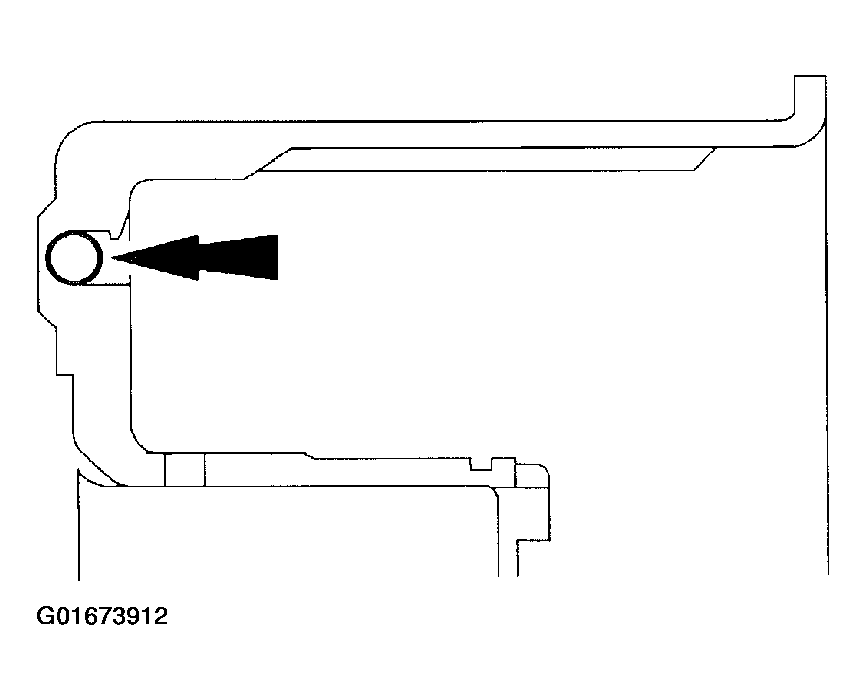

    Fig 2: Verifying Check Ball Is Free To Move
    G01673912Courtesy of FORD MOTOR CO.
  5. CAUTION: Care must be taken to prevent damage to the seals during installation.

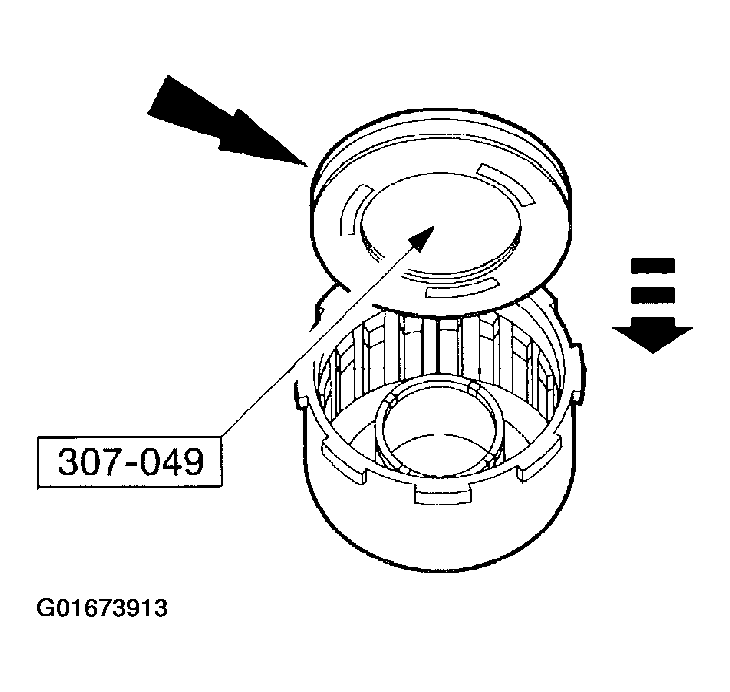

    Fig 3: Installing The Direct Clutch Piston
    G01673913Courtesy of FORD MOTOR CO.
  6. Using the special tool, install the direct clutch piston.
  7. Install the direct clutch piston springs and the retainer.

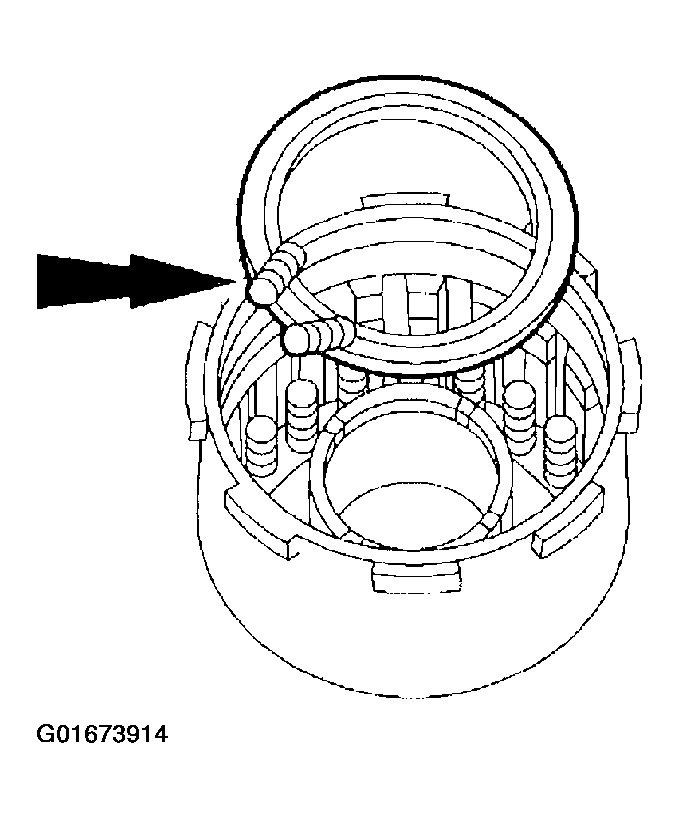

    Fig 4: Installing Direct Clutch Piston Springs & Retainer
    G01673914Courtesy of FORD MOTOR CO.
  8. Relieve the direct clutch spring tension and remove the special tool.
  9. WARNING: After removing the retaining ring, use care when releasing the pressure on the springs. Failure to follow these instructions may result in personal injury.
    CAUTION: Do not fully compress the special tool or damage to the spring retainer may occur.

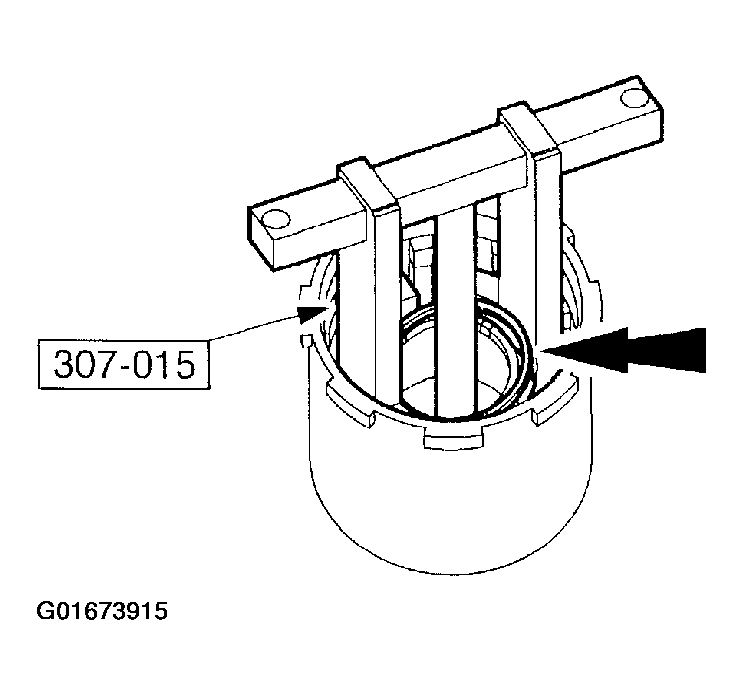

    Fig 5: Installing Direct Clutch Piston Retaining Ring
    G01673915Courtesy of FORD MOTOR CO.
  10. Using the special tool, install the direct clutch piston retaining ring.
  11. CAUTION: The direct clutch friction plates are directional and must be installed correctly. Alternate the internally splined (clockwise) and the externally splined (counterclockwise) clutch plates.
    CAUTION: If new plates are used, they should be soaked in clean automatic transmission fluid for at least 30 minutes before assembly.

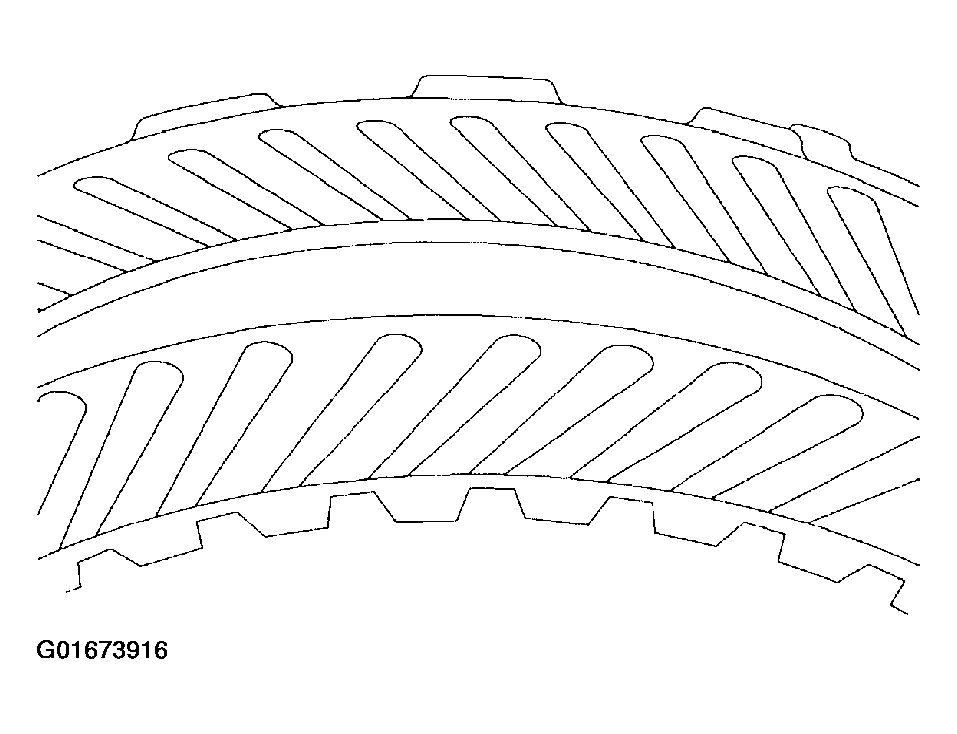

    Fig 6: Installing Direct Clutch Disc Pack
    G01673916Courtesy of FORD MOTOR CO.
  12. When installing friction plates, alternate the internally splined (clockwise) and the externally splined (counterclockwise) clutch plates. Install the direct clutch disc pack.
  13. Install the friction plates alternating the internally splined (clockwise) and the externally splined (counterclockwise) clutch plates starting with an externally splined (counterclockwise) clutch plate.

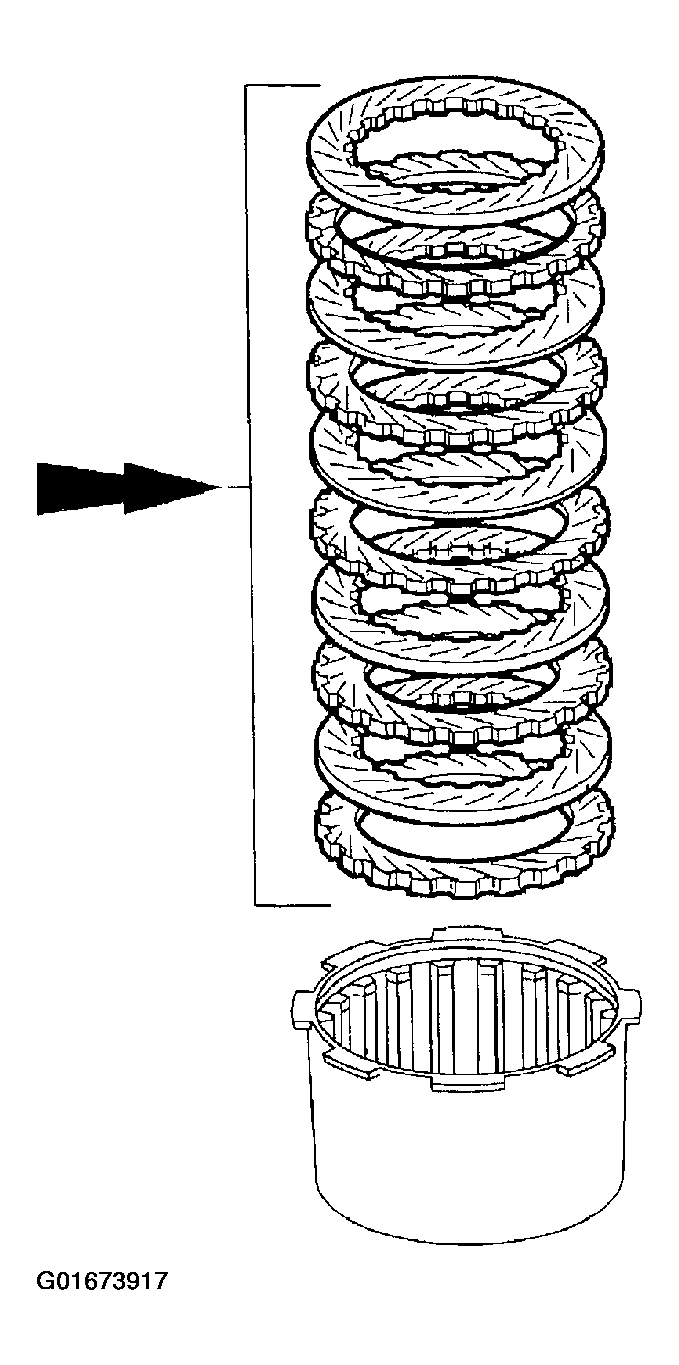

    Fig 7: Installing Friction Plates
    G01673917Courtesy of FORD MOTOR CO.
  14. CAUTION: The retaining ring is a select fit.

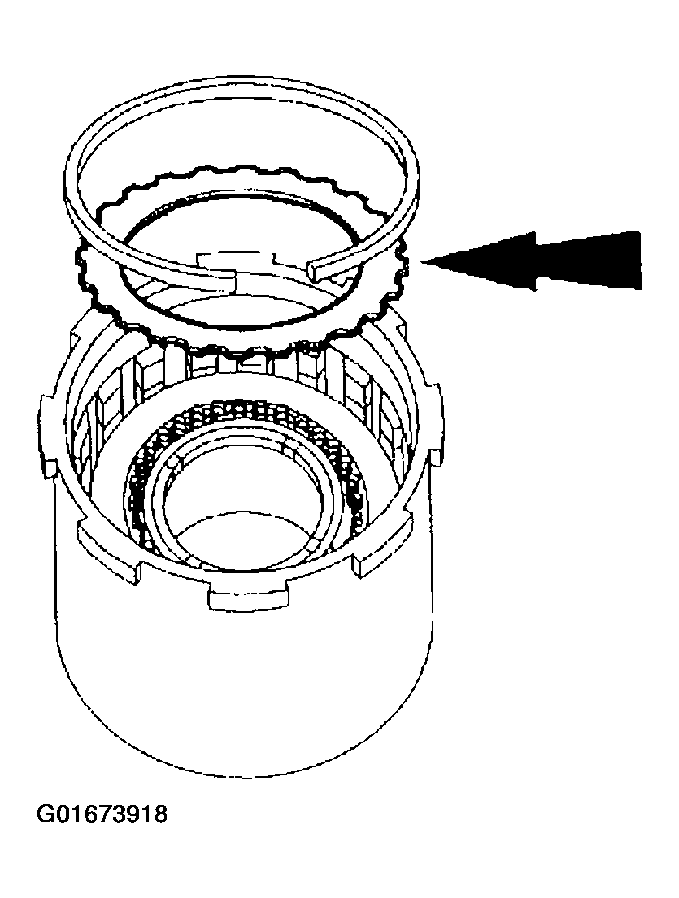

    Fig 8: Installing Direct Clutch Pressure Plate
    G01673918Courtesy of FORD MOTOR CO.
  15. Install the direct clutch pressure plate using the original direct clutch retaining ring.
  16. WARNING: Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air, and make sure drum is facing down as shown. Failure to follow these instructions may result in personal injury.
  17. Air check the assembly.
    • Apply air pressure to the hole in the drum while blocking the other hole with a finger.

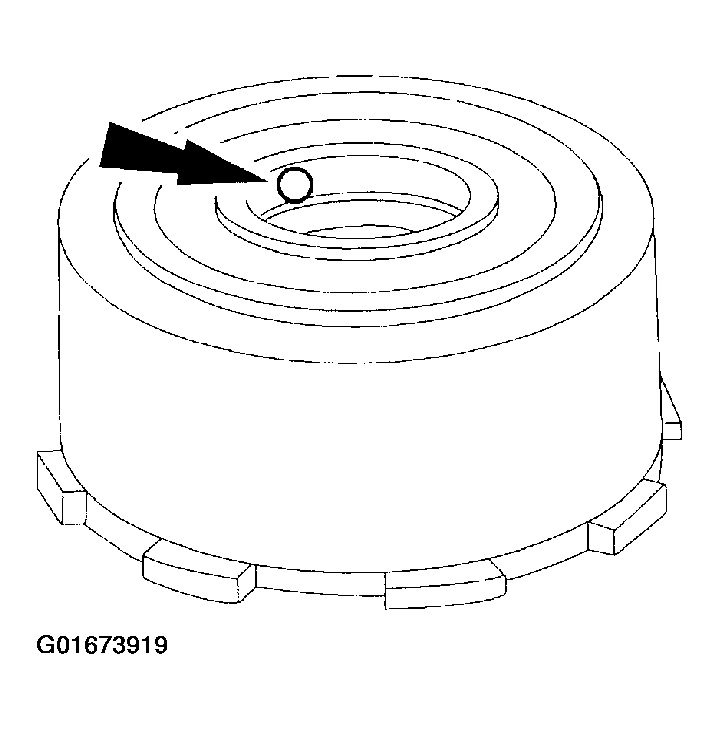

    • Fig 9: Identifying Air Pressure Port
      G01673919Courtesy of FORD MOTOR CO.
  18. Push down on direct clutch disc pack and check gap between the direct clutch retaining ring and the direct clutch pressure plate with a feeler gauge.
    • If specifications do not match use a select fit direct clutch retaining ring to match specifications and verify with a feeler gauge.

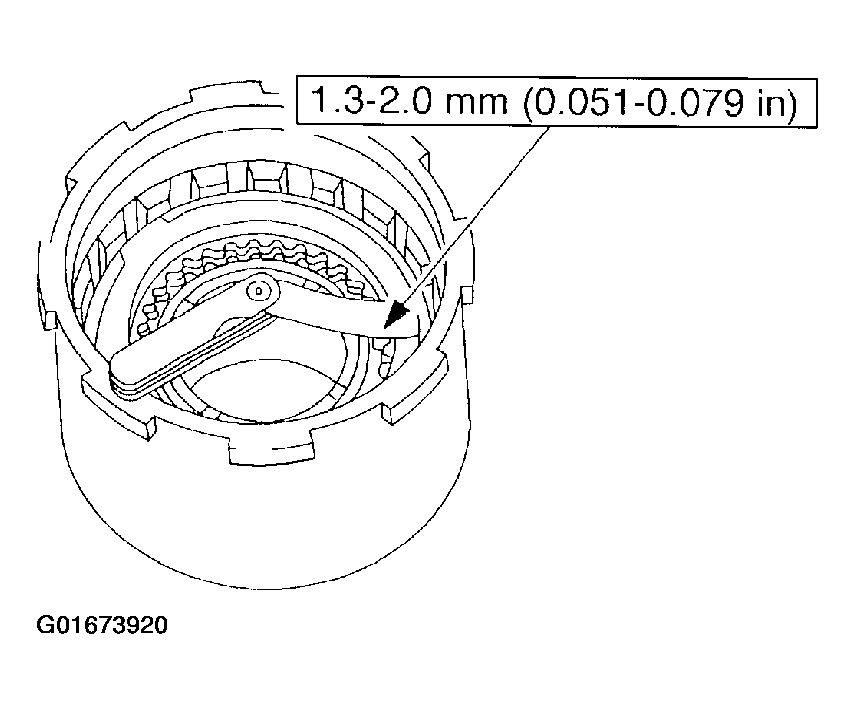

    • Fig 10: Checking Gap Between Direct Clutch Retaining Ring & Direct Clutch Pressure Plate
      G01673920Courtesy of FORD MOTOR CO.

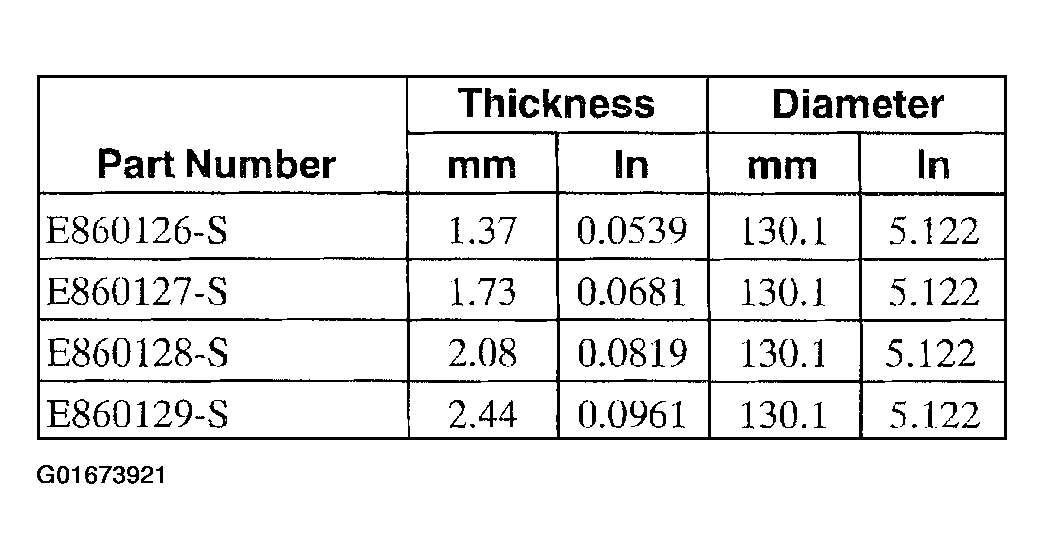

Fig 11: Direct Clutch Specification Table
G01673921Courtesy of FORD MOTOR CO.
