Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. For additional information, see JACKING & HOISTING .
  2. Position the transmission jack and install a holding strap around the transmission.

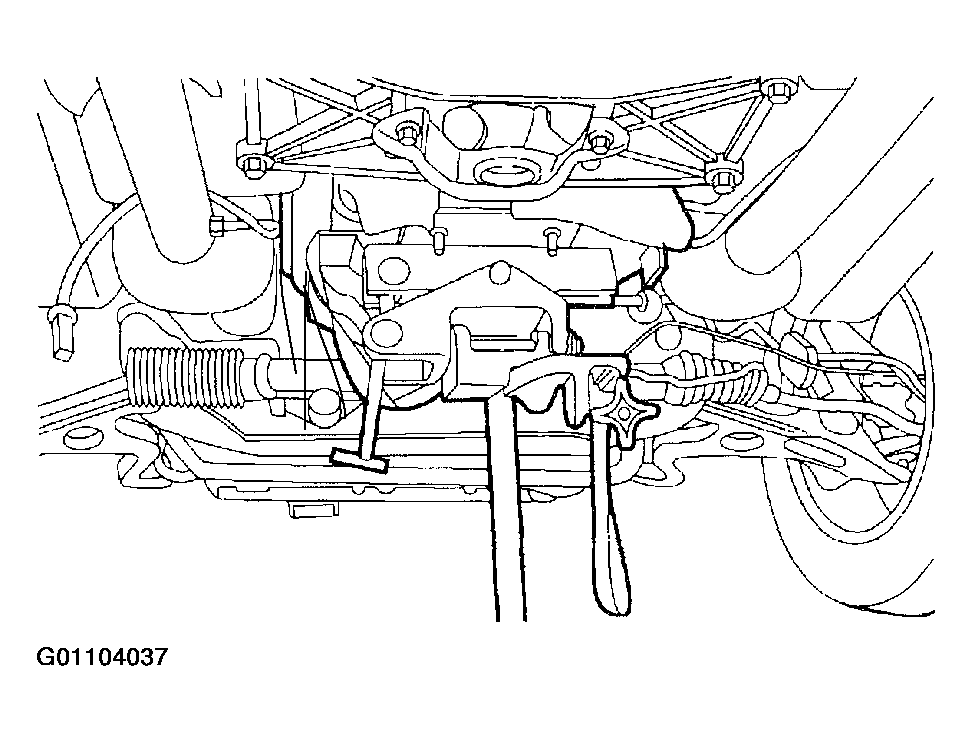

    Fig 1: Positioning Transmission Jack
    G01104037Courtesy of FORD MOTOR CO.
  3. Remove the transmission support insulator.

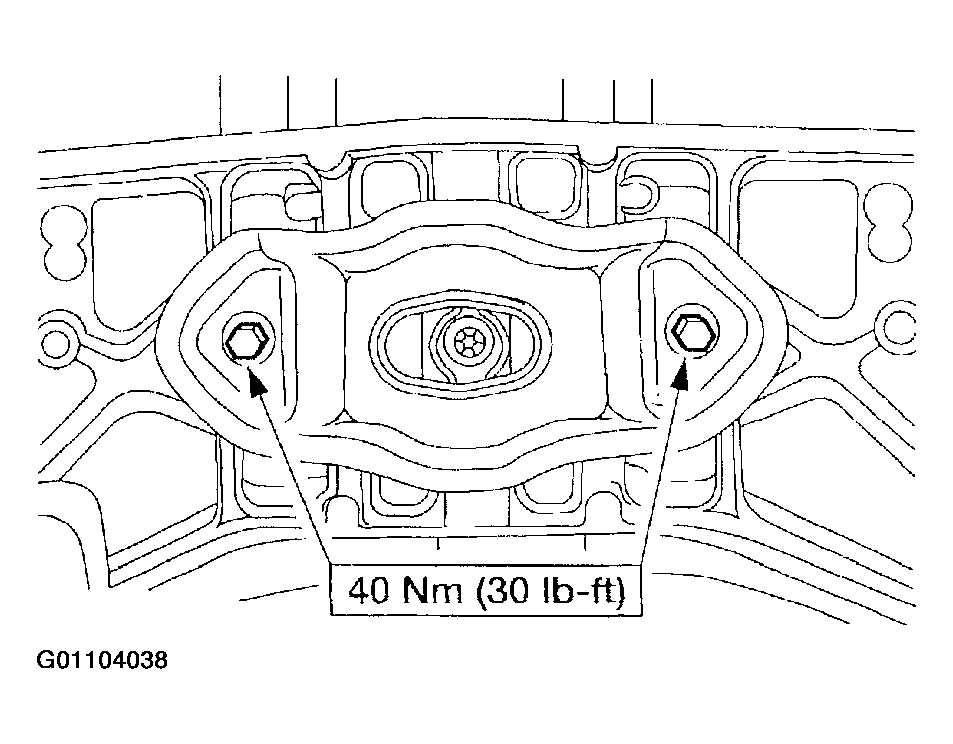

    Fig 2: Removing Transmission Support Insulator
    G01104038Courtesy of FORD MOTOR CO.
  4. Remove the transmission support.

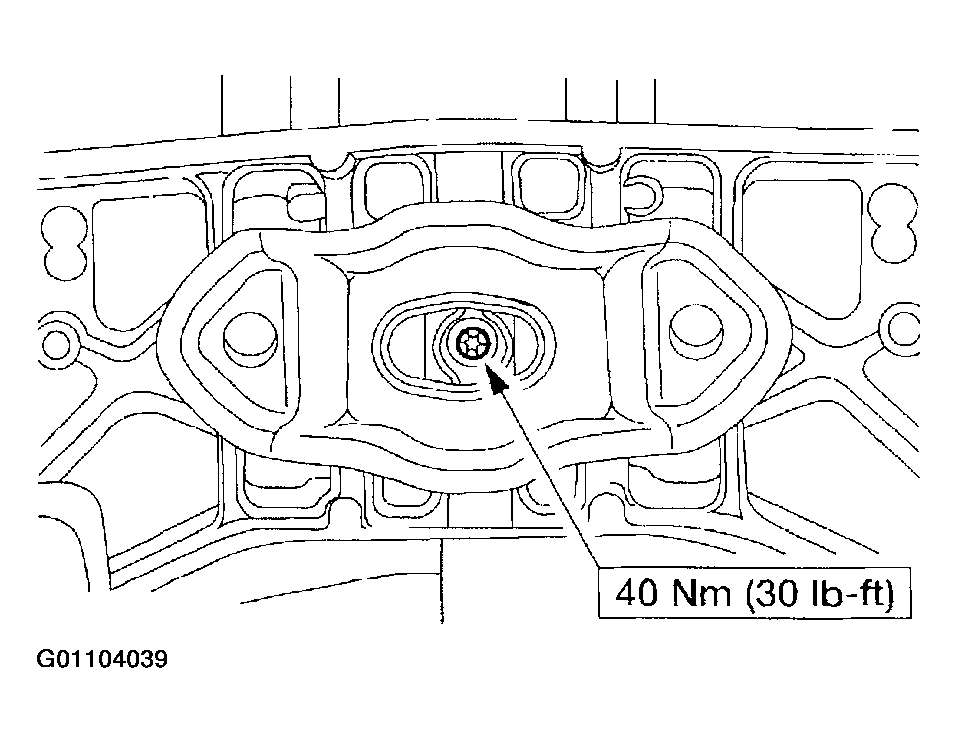

    Fig 3: Removing Transmission Support
    G01104039Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
