Fuel Tank: Installation

Raise the fuel tank slightly below the fully installed position.

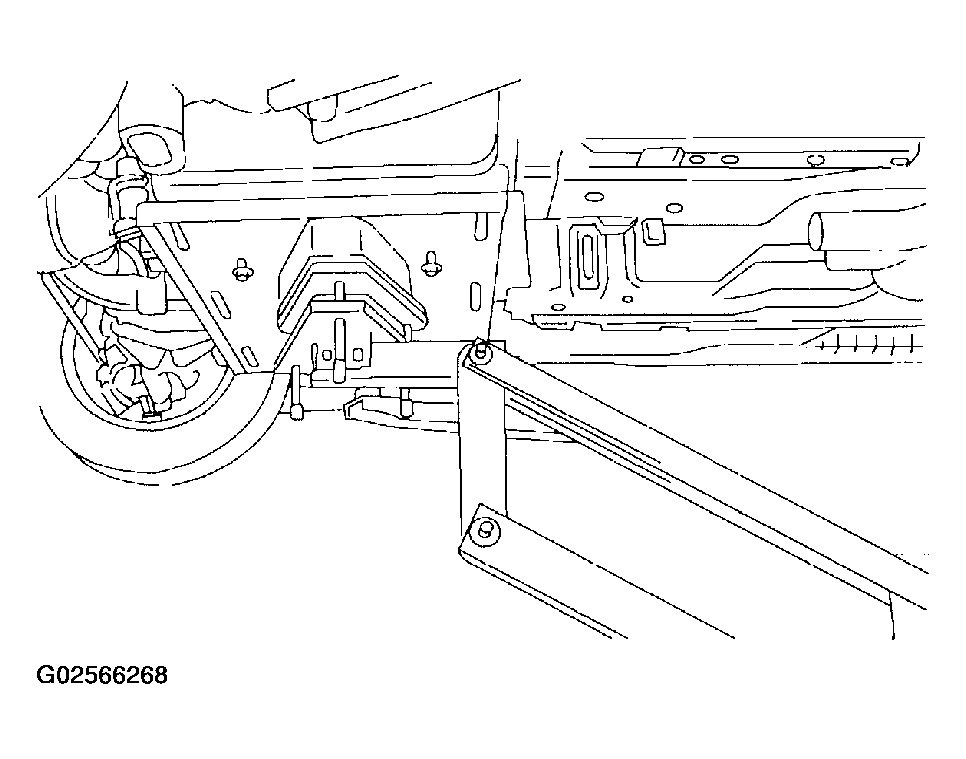

Fig 1: Raising Fuel Tank
Courtesy of FORD MOTOR CO.
Connect the vapor tube at the top rear of the fuel tank.

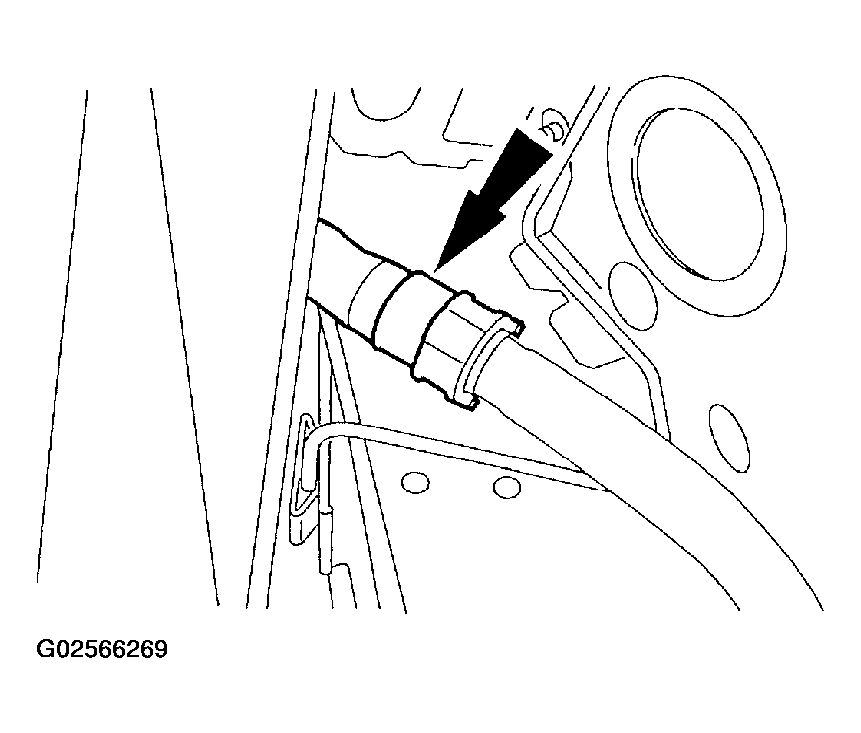

Fig 2: Connecting Vapor Tube
Courtesy of FORD MOTOR CO.
Connect the fuel tank electrical connector.

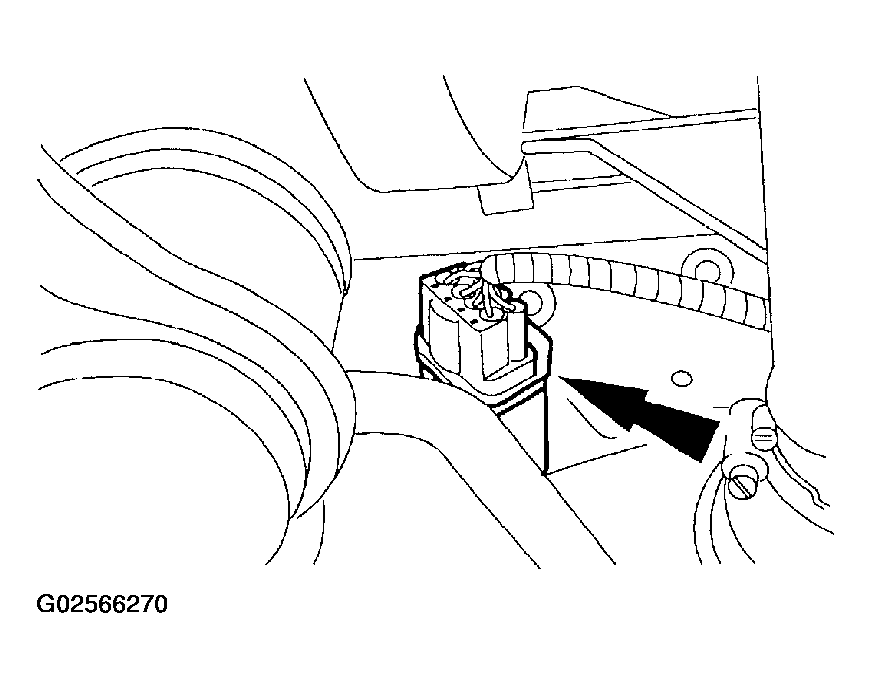

Fig 3: Connecting Fuel Tank Electrical Connector
Courtesy of FORD MOTOR CO.
Raise the tank into position and install the right support strap and bolt.

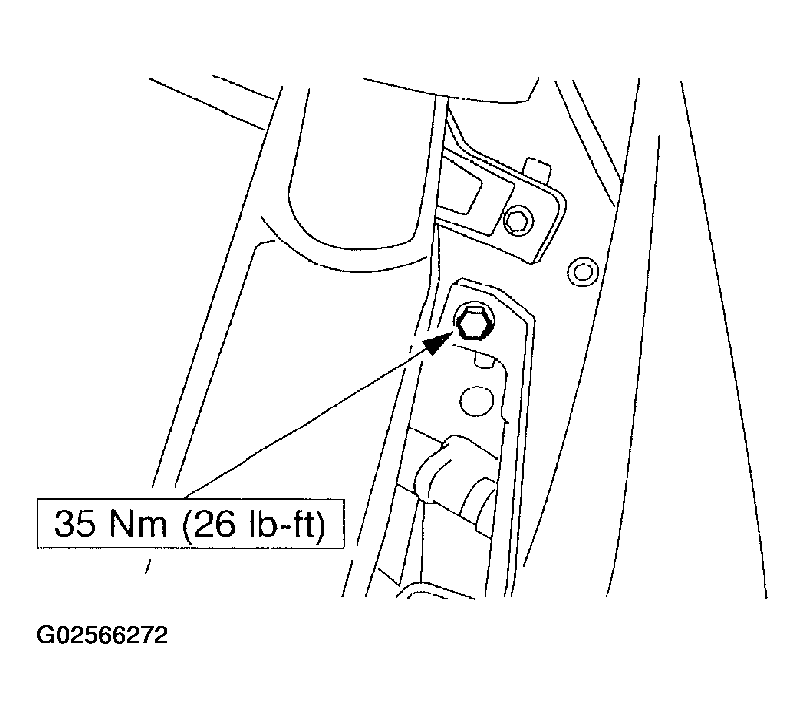

Fig 4: Installing Right Support Strap
Courtesy of FORD MOTOR CO.
Install the left support strap and bolt. Remove the lifting device.

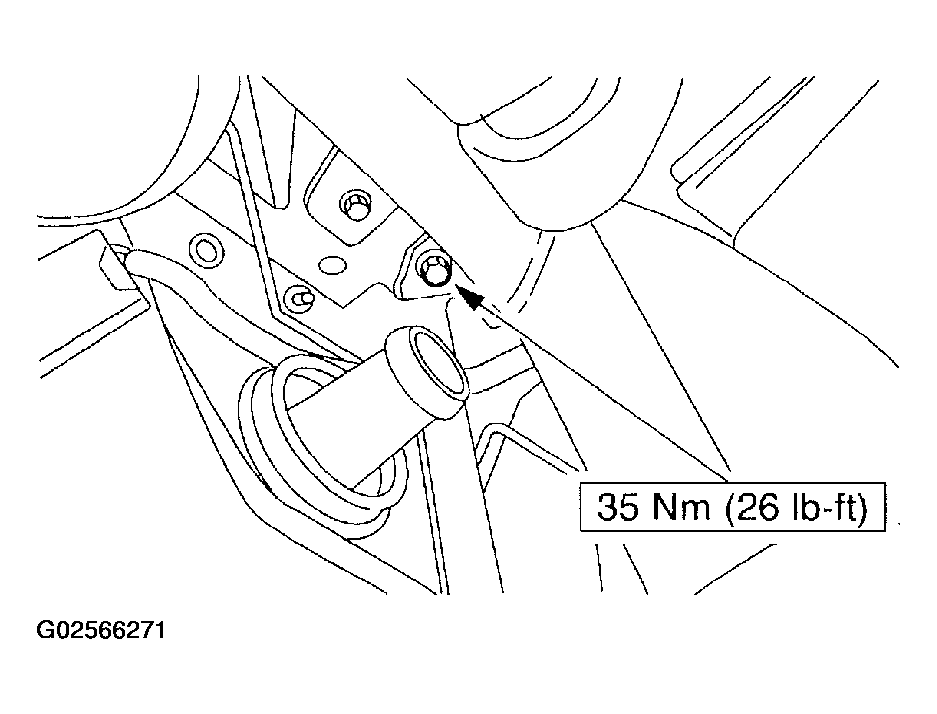

Fig 5: Installing Left Support Strap
Courtesy of FORD MOTOR CO.
Connect the fuel delivery line and vapor tube.
- Connect the ground strap.

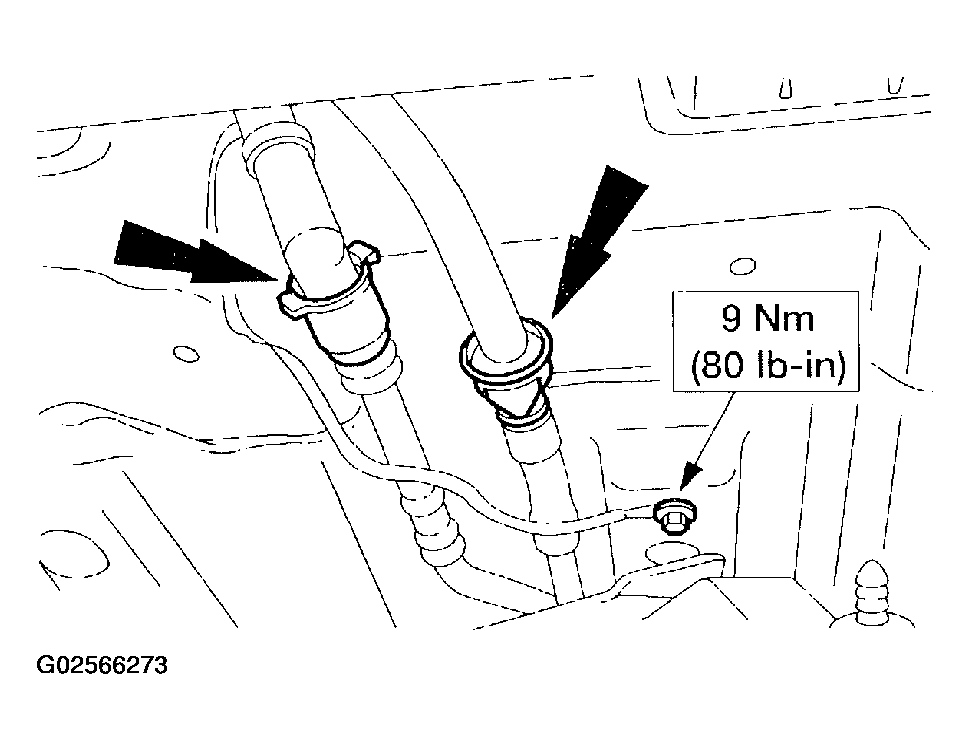

  Fig 6: Connecting Fuel Delivery Line & Vapor Tube
  Courtesy of FORD MOTOR CO.
Install the fuel line shield.
1. Install the pin-type retainers.
2. Install the bolt.

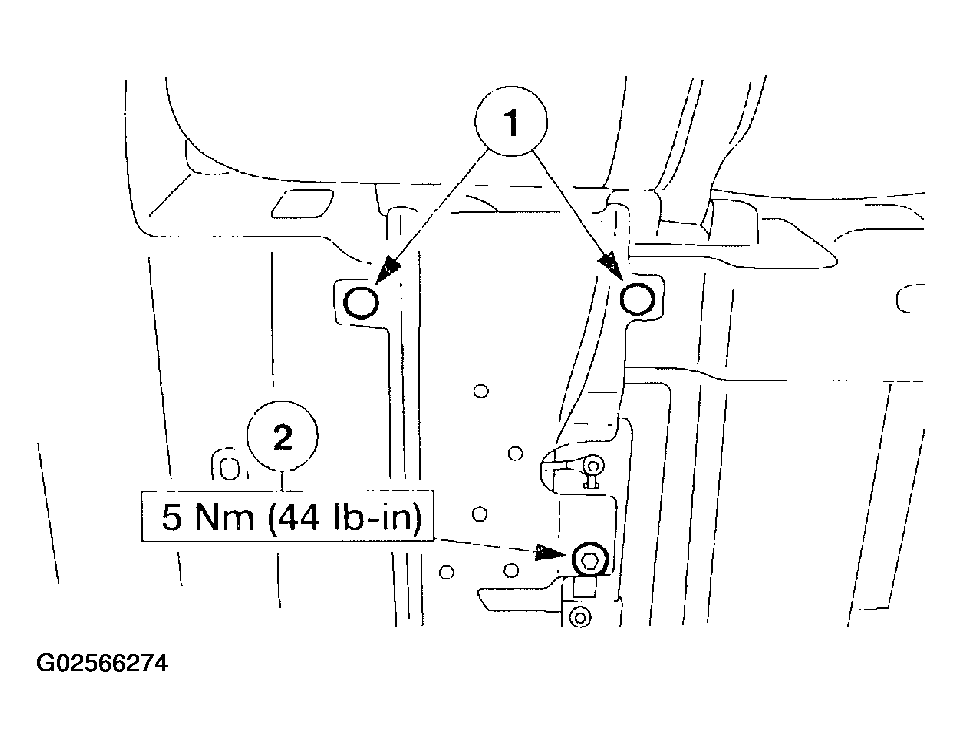

  Fig 7: Installing Fuel Line Shield
  Courtesy of FORD MOTOR CO.
Connect the fuel tank filler pipe hose and tighten clamp.

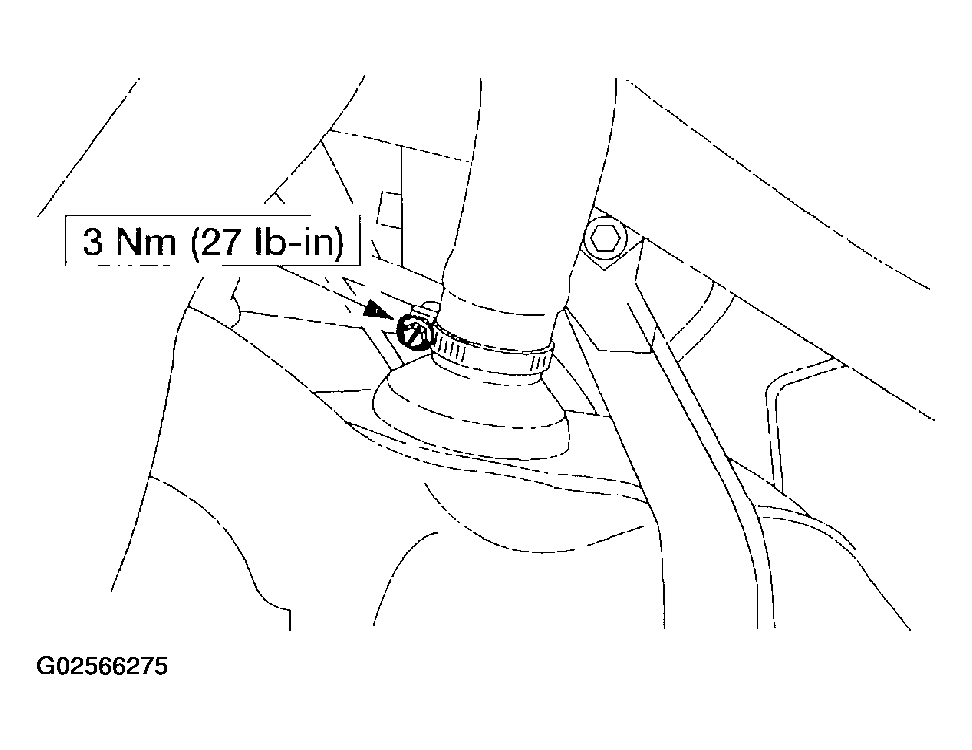

Fig 8: Connecting Fuel Tank Filler Pipe
Courtesy of FORD MOTOR CO.
Install the driveshaft. For additional information, see DRIVE SHAFT .
Connect the battery negative cable.
Turn the ignition key to the ON position to pressurize the fuel system.
Visually inspect the fuel system for leaks.
