Removal and Installation

Disconnect the accelerator cable and speed control cable from the bracket.
1. Disconnect the accelerator cable and speed control cable from the throttle levers.
2. Depress the lock tab and rotate the fitting 90 degrees counter clockwise.
3. Slide the cable up and out of the bracket.
4. Depress the lock tabs and disconnect the speed control cable from the bracket.

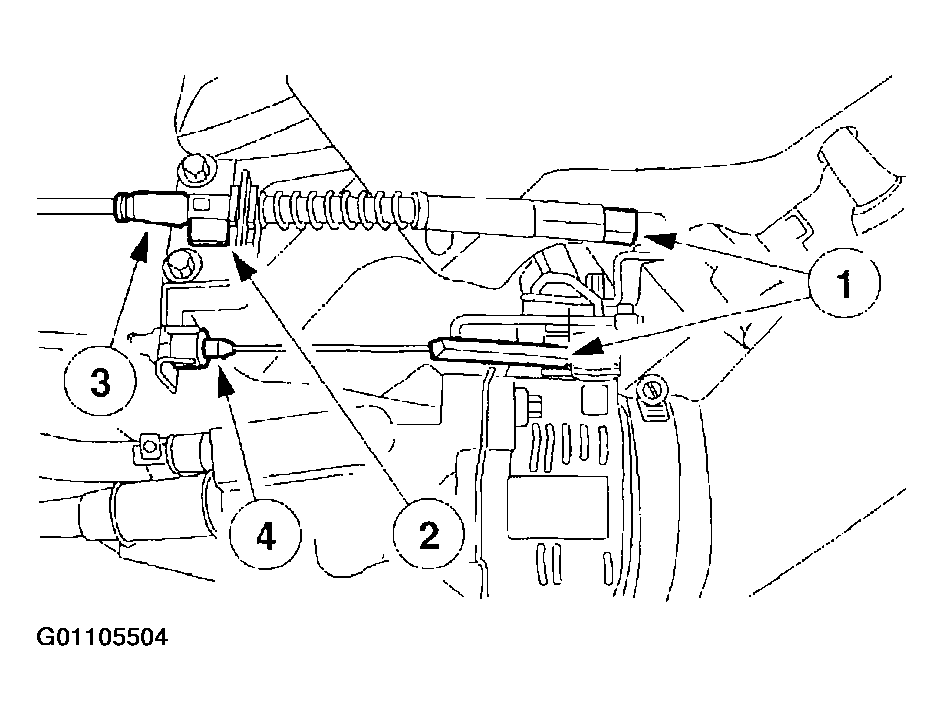

Fig 1: Disconnecting Accelerator & Speed Control Cable From Throttle Body
Courtesy of FORD MOTOR CO.
Remove the bolts and the accelerator cable bracket.

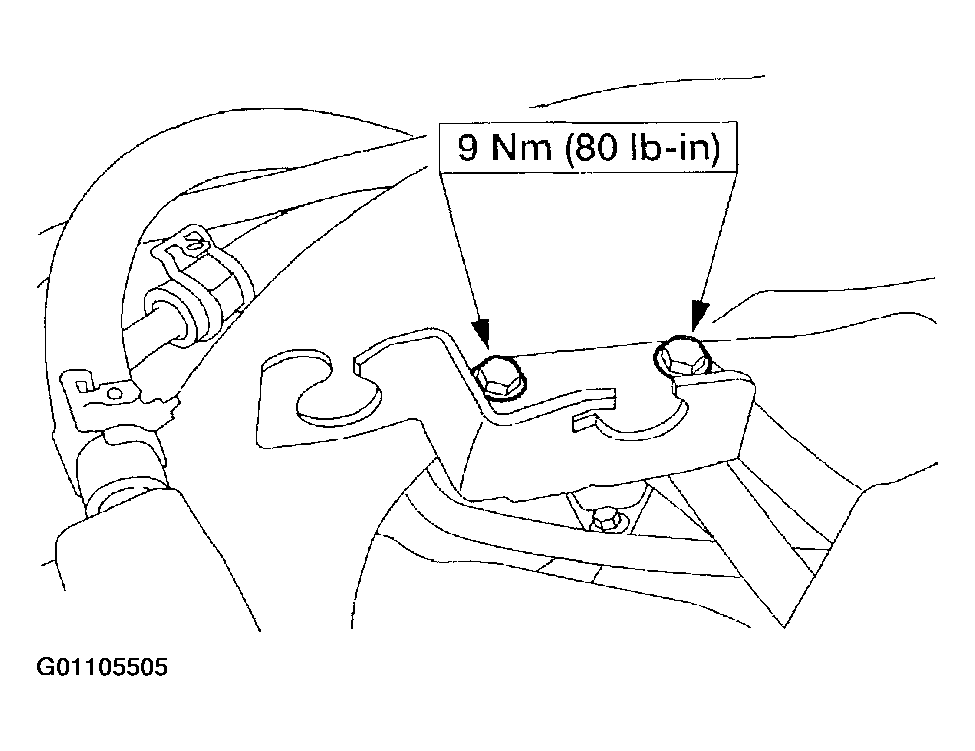

Fig 2: Removing Accelerator Cable Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
