Removal and Installation

Raise and support the vehicle. For additional information, see JACKING & HOISTING .
Position the inner splash shield aside.
1. Remove the pin-type retainers.
2. Position the inner splash shield aside.

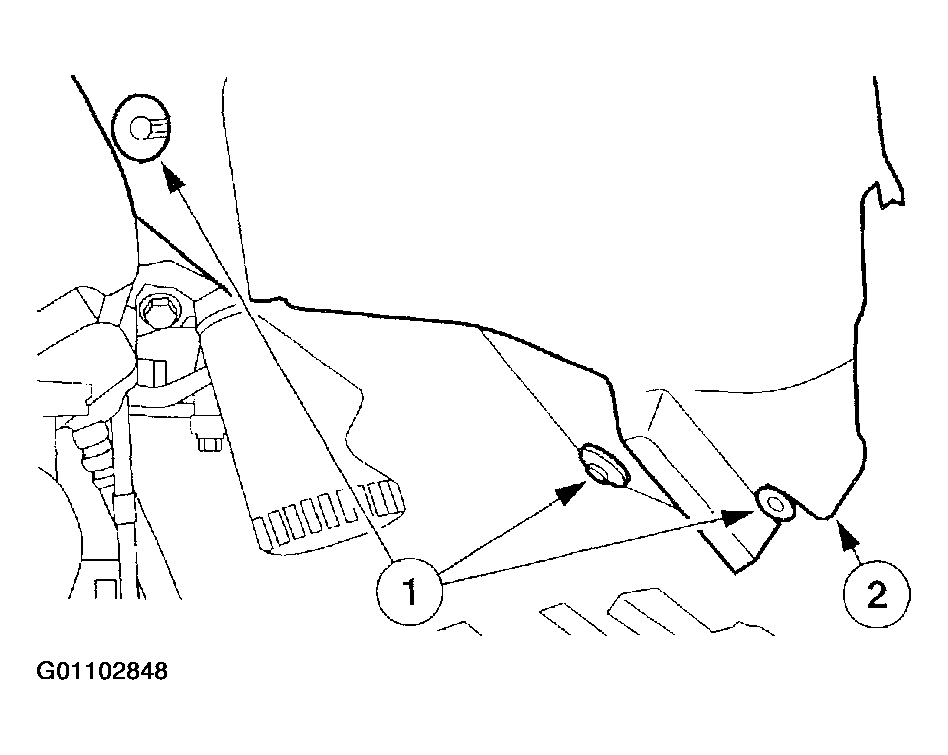

  Fig 1: Positioning Inner Splash Shield Aside
  Courtesy of FORD MOTOR CO.
Disconnect the anti-lock brake sensor electrical connector.

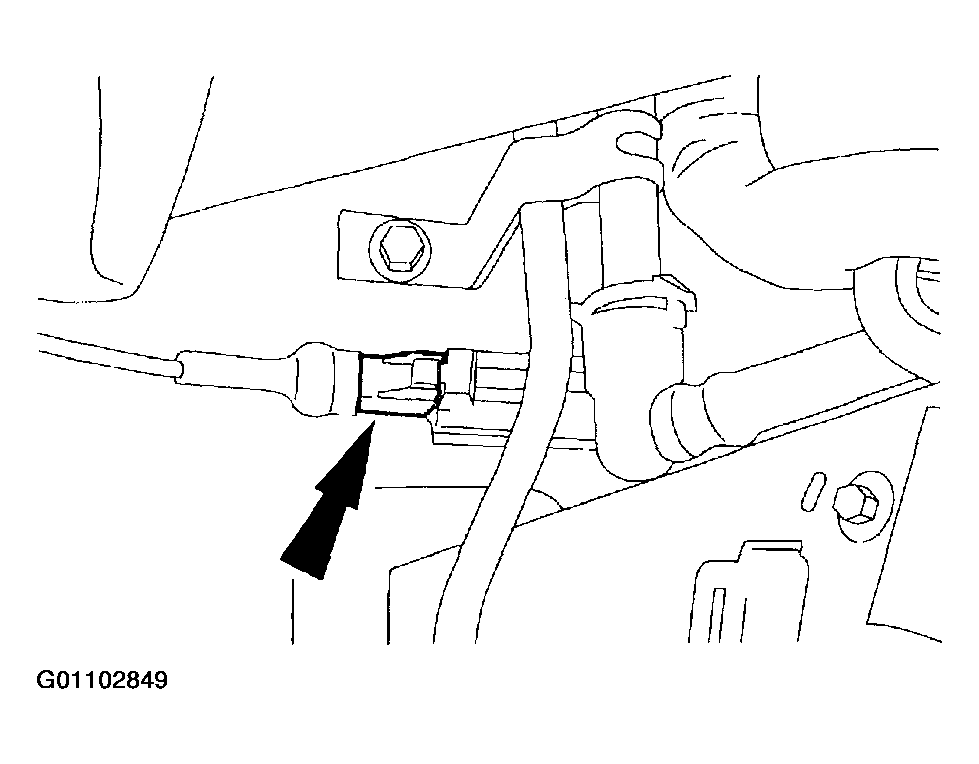

Fig 2: Disconnecting Anti-Lock Brake Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake sensor harness from the brake hose clips.

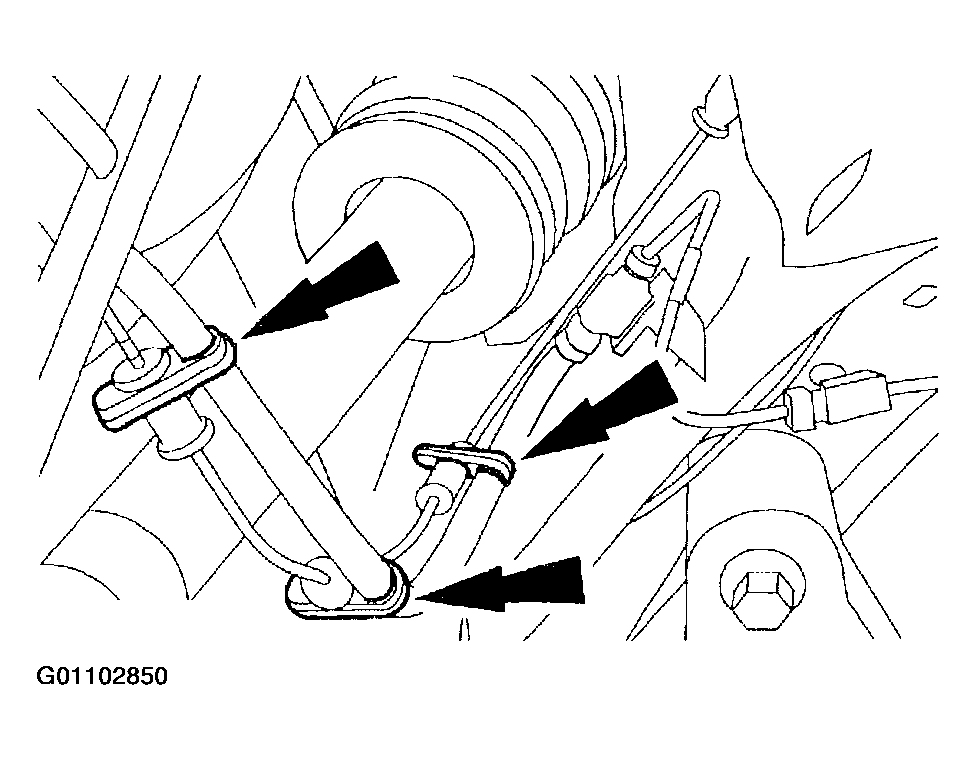

Fig 3: Removing Anti-Lock Brake Sensor Harness
Courtesy of FORD MOTOR CO.
Remove the anti-lock brake sensor.
1. Remove the anti-lock brake sensor clip.
2. Remove the anti-lock brake sensor.

  Fig 4: Removing Anti-Lock Brake Sensor
  Courtesy of FORD MOTOR CO.

NOTE: Make sure the anti-lock brake sensor is fully seated before installation of the new clip.

To install, reverse the removal procedure.
- Apply a 2.5 mm (0.1 in) bead of silicone sealant to the outside diameter of the anti-lock brake sensor.
