Pinpoint Test M: No ISO 9141 Network Communication

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

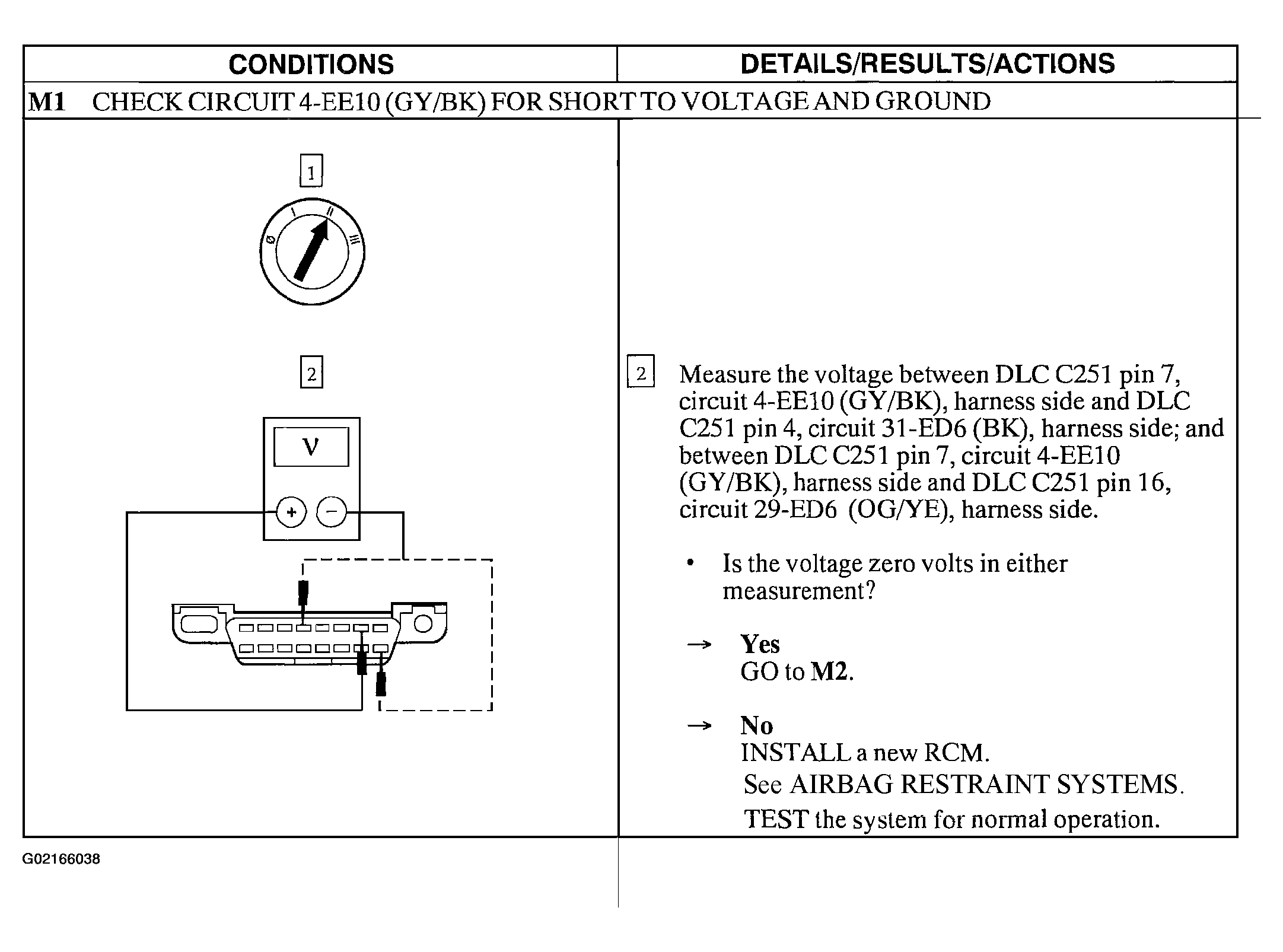

Fig 1: Pinpoint Test M: No ISO 9141 Network Communication (Step M1)

Courtesy of FORD MOTOR CO.

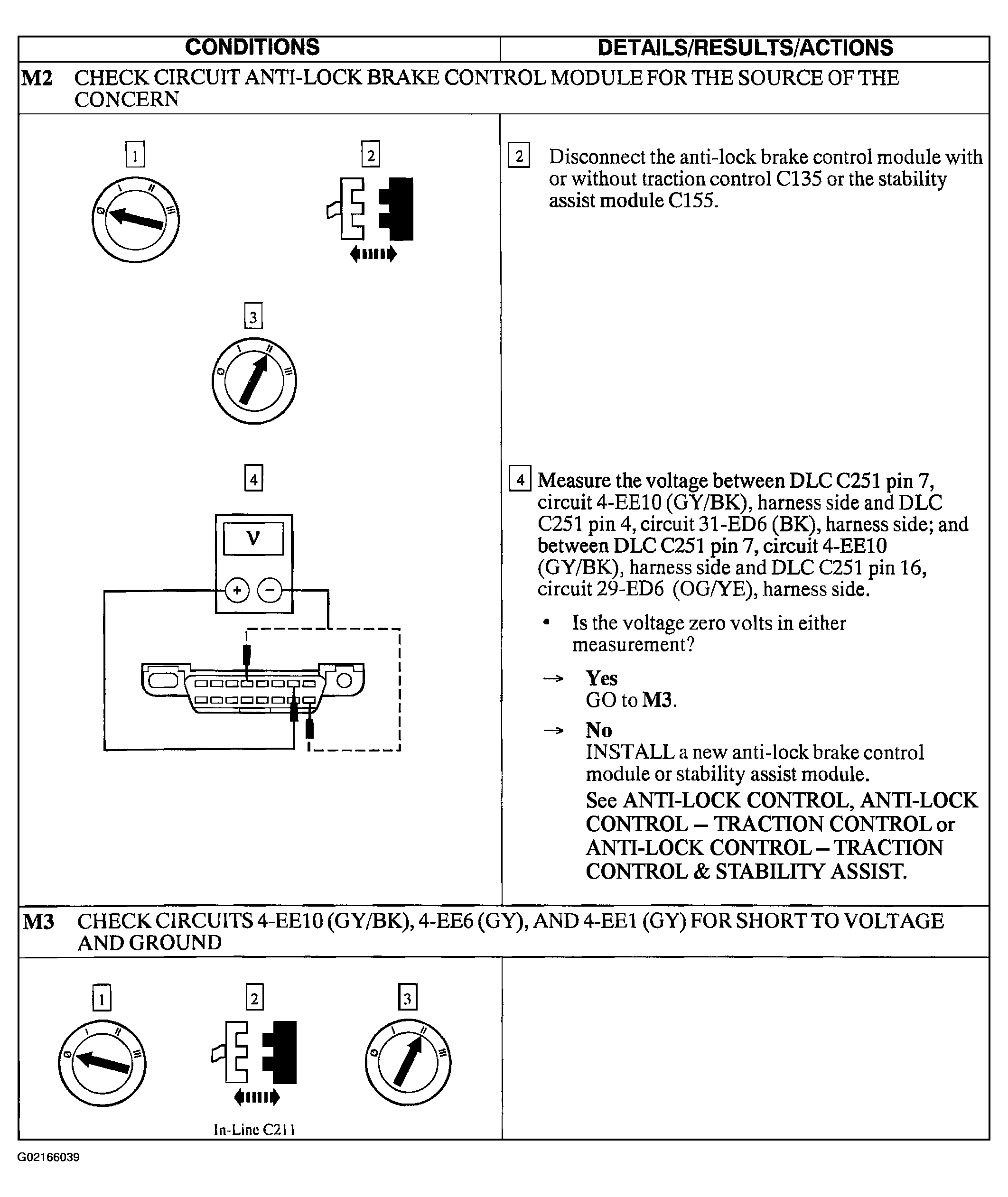

Fig 2: Pinpoint Test M: No ISO 9141 Network Communication (Steps M2 & M3)

Courtesy of FORD MOTOR CO.

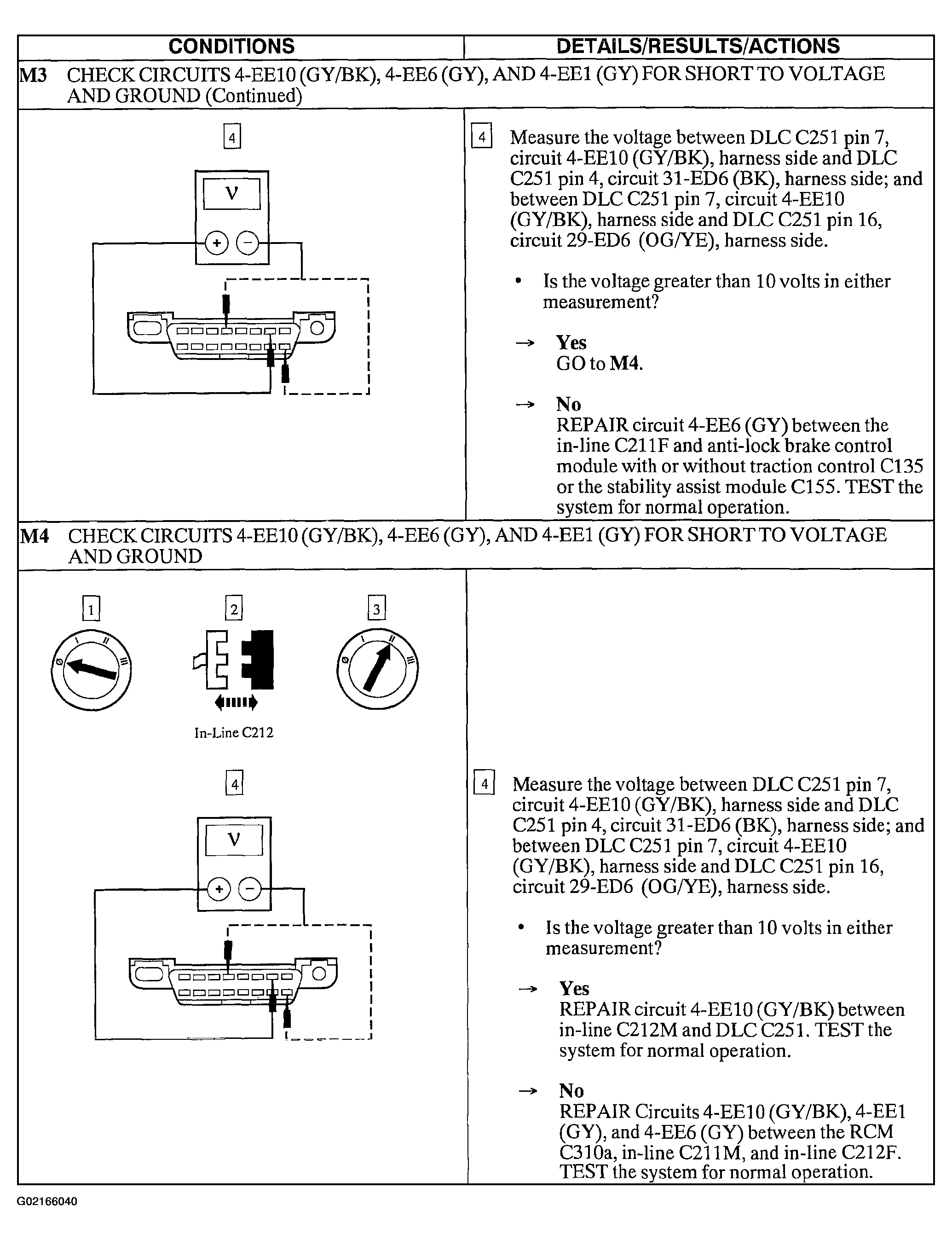

Fig 3: Pinpoint Test M: No ISO 9141 Network Communication (Steps M3 Cont. & M4)
