Removal and Installation

  1. Remove the driver seat; see FRONT SEAT .
  2. Release the driver seat module (DSM) bracket from the seat track.
    1. Release the four retainers.
    2. Release the module bracket.

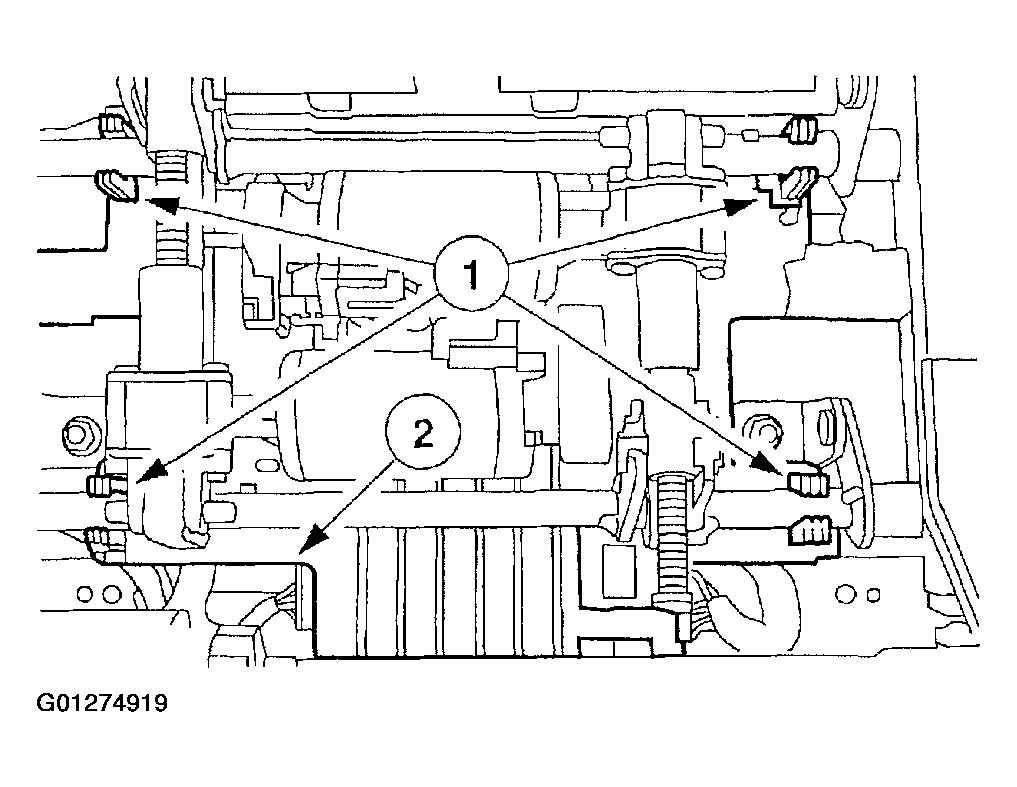

    Fig 1: Releasing DSM Bracket
    G01274919Courtesy of FORD MOTOR CO.
  3. Remove the DSM.
    1. Disconnect the electrical connectors.
    2. Remove the screws.
    3. Remove the DSM.

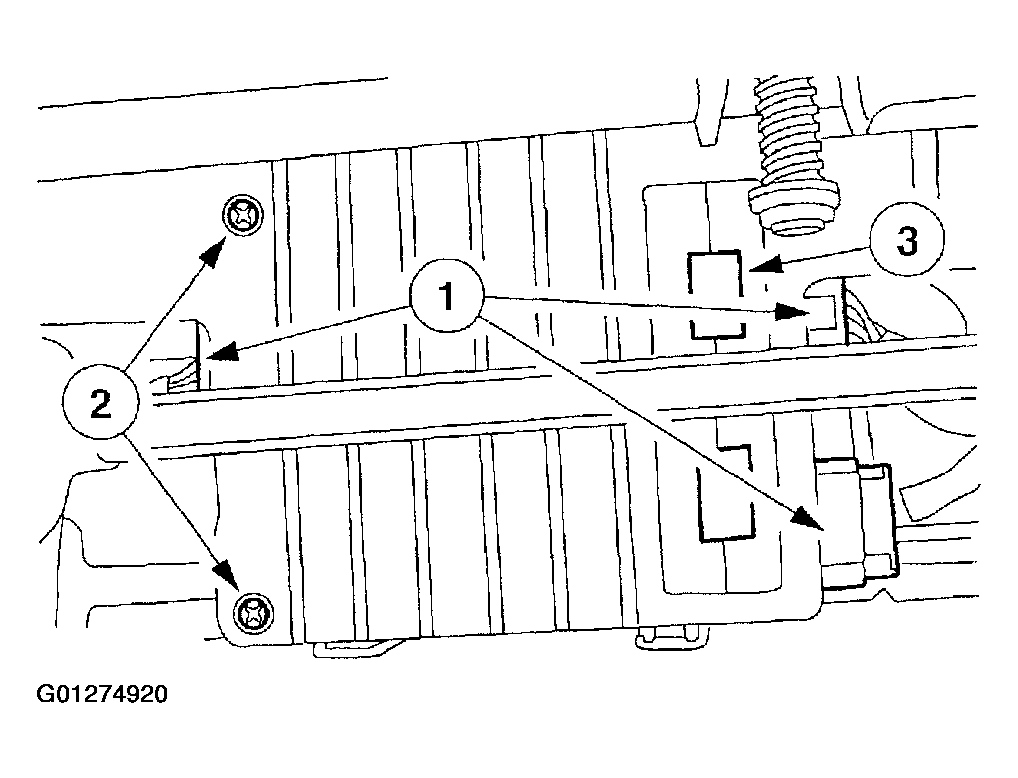

    Fig 2: Removing DSM
    G01274920Courtesy of FORD MOTOR CO.
    4. NOTE: Once the new module is installed, it is necessary to calibrate the seat. For additional information, see SEATING .
    NOTE: It is important to make sure that the locking tabs are in the correct locations.
  4. To install, reverse the removal procedure.
