Removal and Installation

  1. Remove the speed control servo. See SPEED CONTROL ACTUATOR .
  2. Lower the vehicle.
    3. NOTE: 3.9L shown, 3.0L similar.

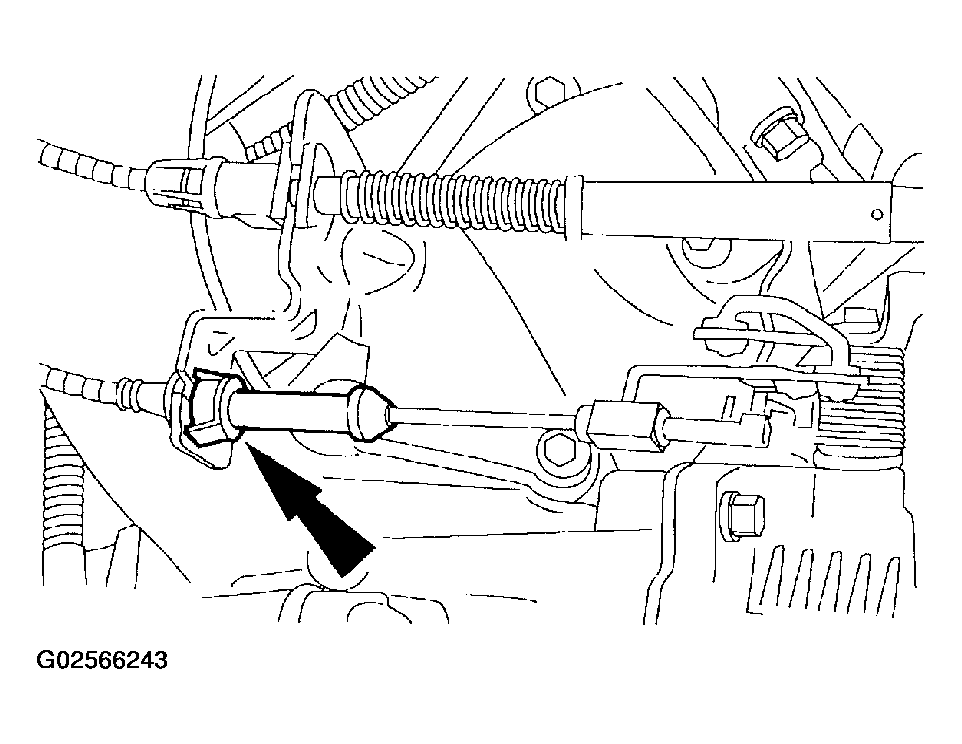

    Fig 1: Removing Speed Control Actuator Cable
    G02566243Courtesy of FORD MOTOR CO.
  3. Remove the speed control actuator cable from the throttle bracket by squeezing the locking ears.
  4. To install, reverse the removal procedure.
