Speed Control Actuator: Installation

  1. Insert the speed control cable slug into the speed control servo pulley slot.
    1. Gently push the retaining spring.
    2. Insert the speed control cable slug completely into the speed control servo pulley slot.

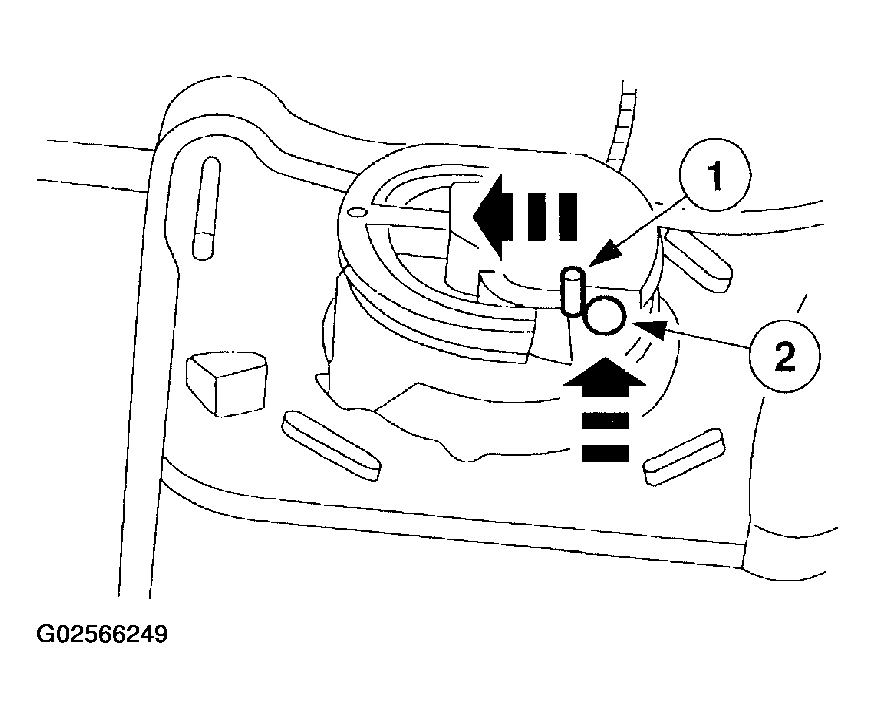

      Fig 1: Inserting Speed Control Cable Into Speed Control Servo Pulley
      G02566249Courtesy of FORD MOTOR CO.
    2. CAUTION: It is necessary to squarely seat the speed control actuator cable cap and seal around the speed control servo pulley.
    CAUTION: Incorrect wrapping of the speed control actuator cable around the speed control servo pulley may result in high idle conditions.
    NOTE: Make sure the rubber seal is fully seated onto the speed control actuator cable cap.

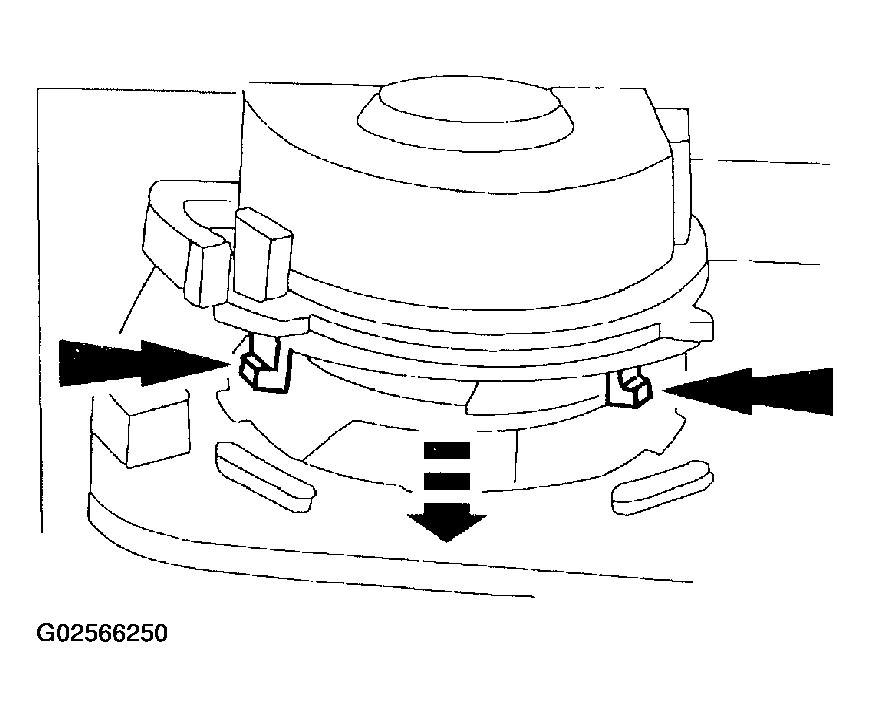

    Fig 2: Aligning Speed Control Actuator Cable Cap Tabs
    G02566250Courtesy of FORD MOTOR CO.
  2. Align the speed control actuator cable cap tabs with the slots in the speed control servo housing.
  3. Rotate the speed control actuator cable cap until the locking tab engages.

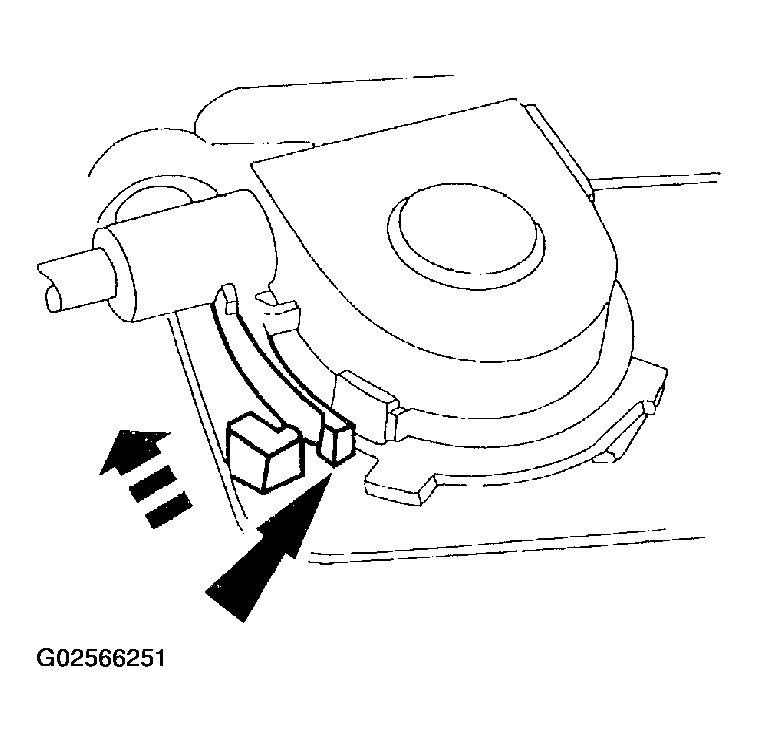

    Fig 3: Rotating Speed Control Actuator Cable Cap
    G02566251Courtesy of FORD MOTOR CO.
  4. Attach the bracket to the speed control servo and install the bolts.

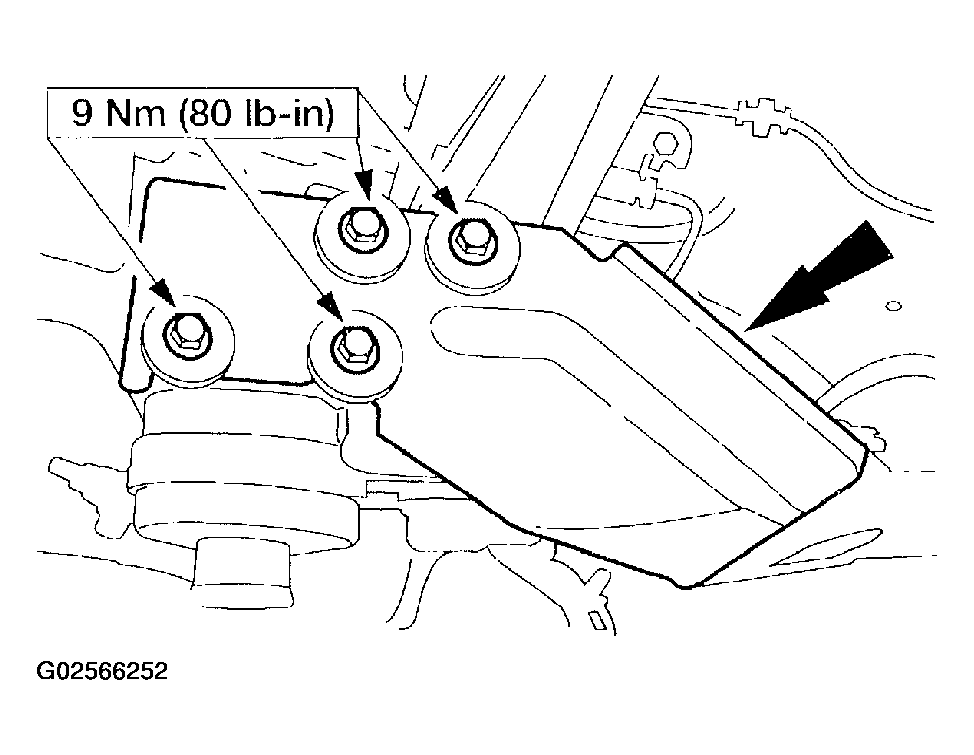

    Fig 4: Attaching Bracket To Speed Control Servo
    G02566252Courtesy of FORD MOTOR CO.
  5. Install the speed control servo bracket assembly.
    1. Install the bolts.
    2. Connect the electrical connector.

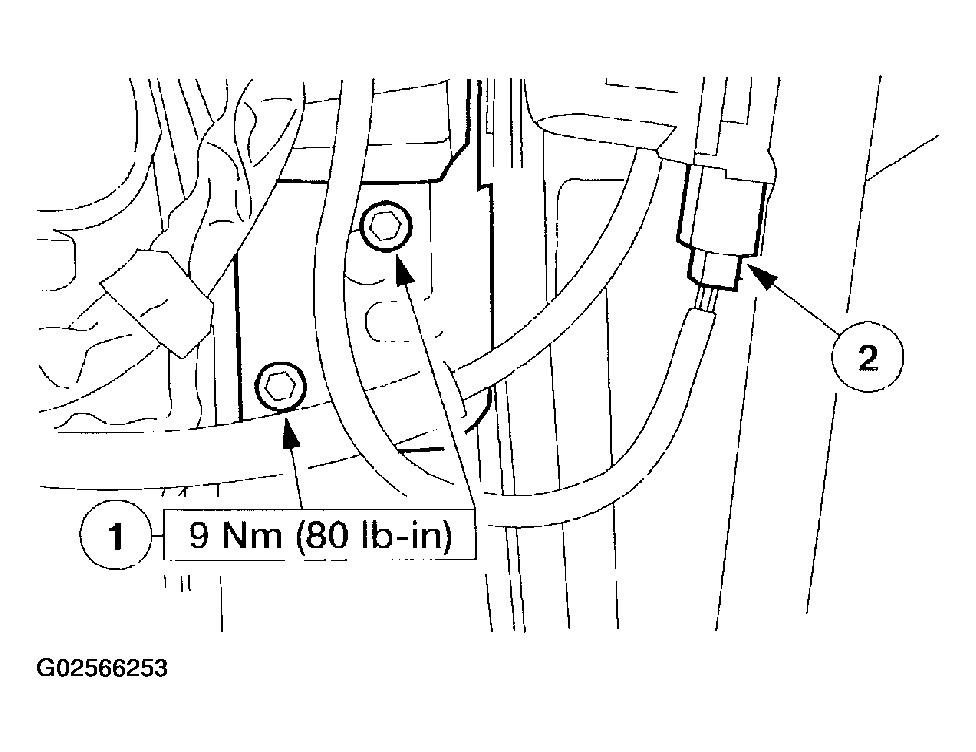

      3. Fig 5: Installing Speed Control Bracket Assembly
      G02566253Courtesy of FORD MOTOR CO.
  6. Install the LF inner splash shield.
  7. Install the wheel and tire.
  8. Attach the speed control actuator cable end to the throttle nailhead.

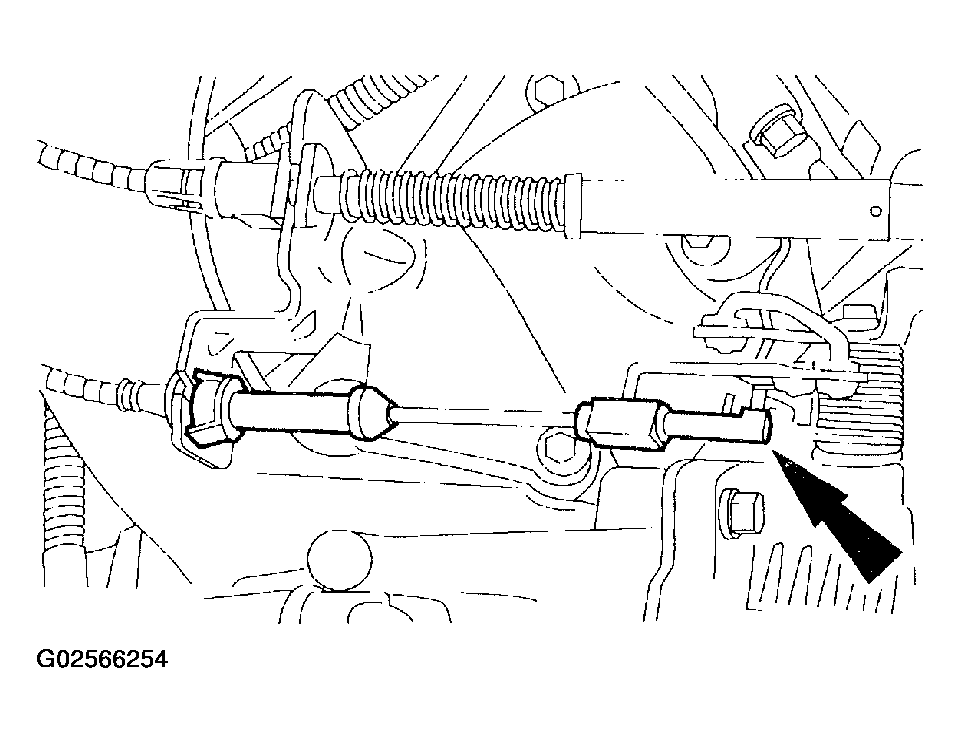

    Fig 6: Attaching Speed Control Actuator Cable
    G02566254Courtesy of FORD MOTOR CO.
  9. If equipped, install the engine cover.
