Vehicle Speed Control - LS
>>
Diagnosis And Testing
>>
Vehicle Speed Control
>>
Symptom Chart
Symptom Chart
NOTE:
See
SYSTEM WIRING DIAGRAMS
for connector numbers stated in the pinpoint test.

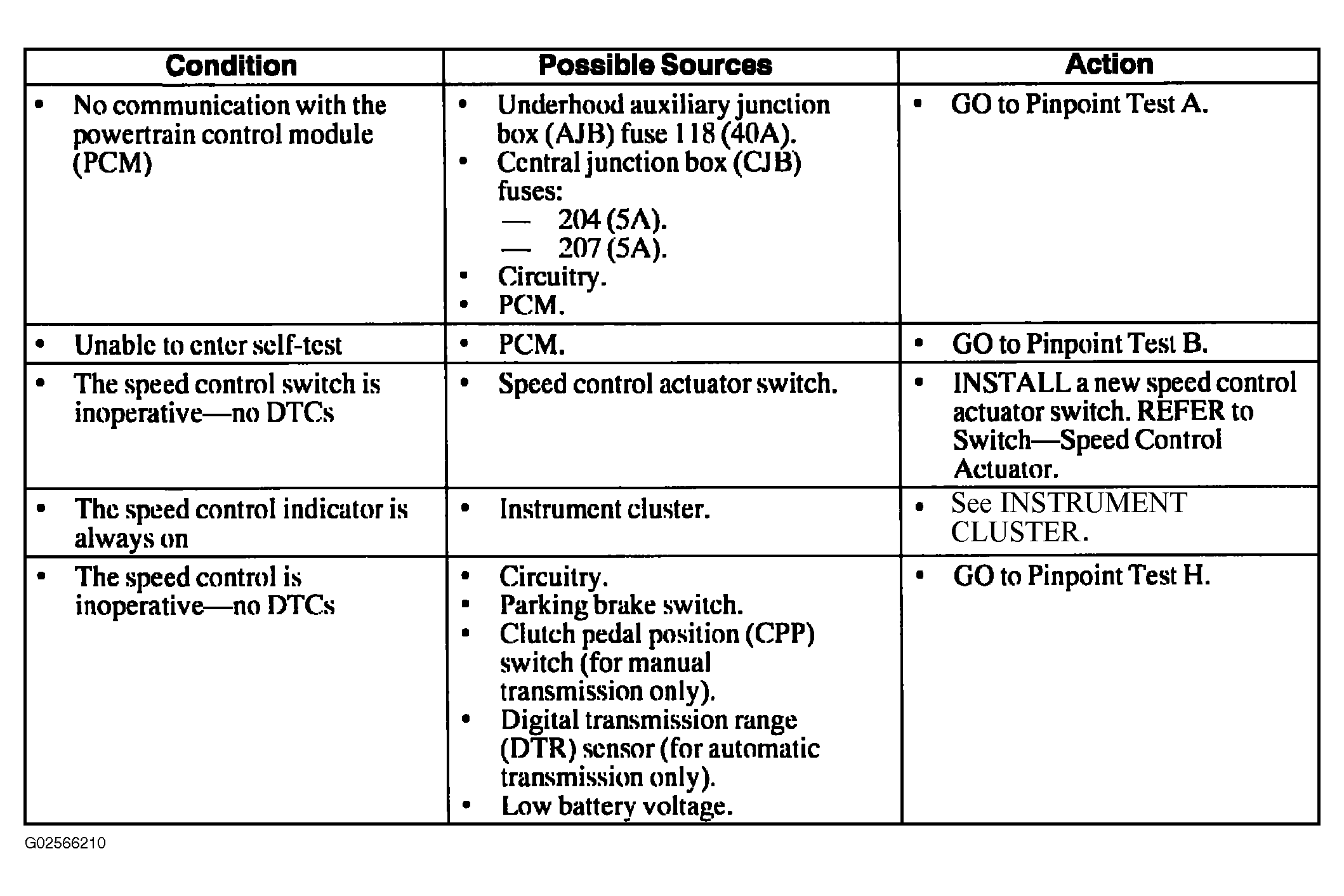

Fig 1: Symptom Chart
Courtesy of FORD MOTOR CO.
