FEM Diagnostic Trouble Code (DTC) Index
FEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX

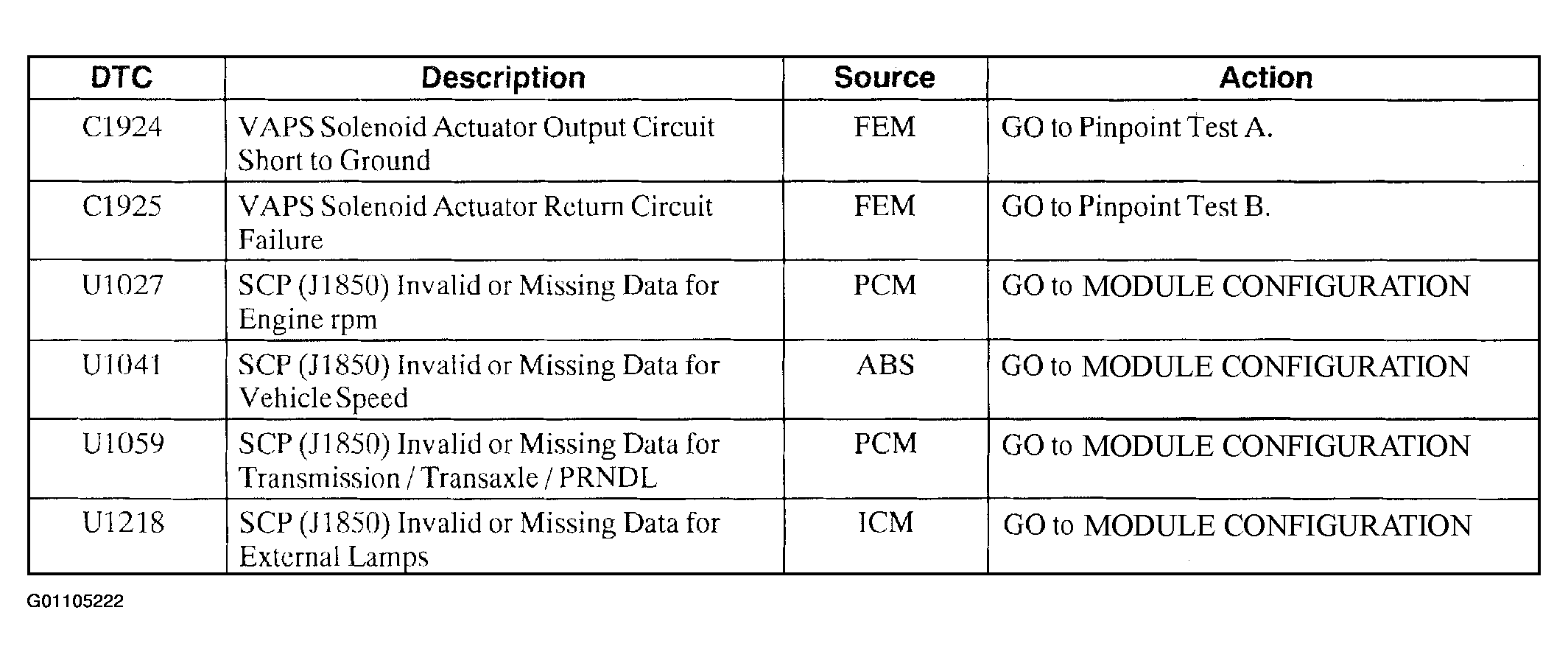

| DTC | Description | Source | Action |
|---|---|---|---|
| C1924 | VAPS Solenoid Actuator Output Circuit Short to Ground | FEM | Go To PINPOINT TEST A . |
| C1925 | VAPS Solenoid Actuator Return Circuit Failure | FEM | Go To PINPOINT TEST B . |
| U1027 | SCP (J1850) Invalid or Missing Data for Engine rpm | PCM | GO to MODULE CONFIGURATION Section 418-01. |
| U1041 | SCP (J1850) Invalid or Missing Data for Vehicle Speed | ABS | GO to MODULE CONFIGURATION . |
| U1059 | SCP (J1850) Invalid or Missing Data for Transmission / Transaxle / PRNDL | PCM | GO to MODULE CONFIGURATION . |
| U1218 | SCP (J1850) Invalid or Missing Data for External Lamps | ICM | GO to MODULE CONFIGURATION . |
| U1222 | SCP (J1850) Invalid or Missing Data for Interior Lamps | ICM | GO to MODULE CONFIGURATION . |
| U1227 | SCP (J1850) Invalid or Missing Data for Body Status Request | ICM | GO to MODULE CONFIGURATION . |
