Symptom Chart

NOTE: See ANTI-LOCK BRAKES for connector numbers stated in the pinpoint tests.

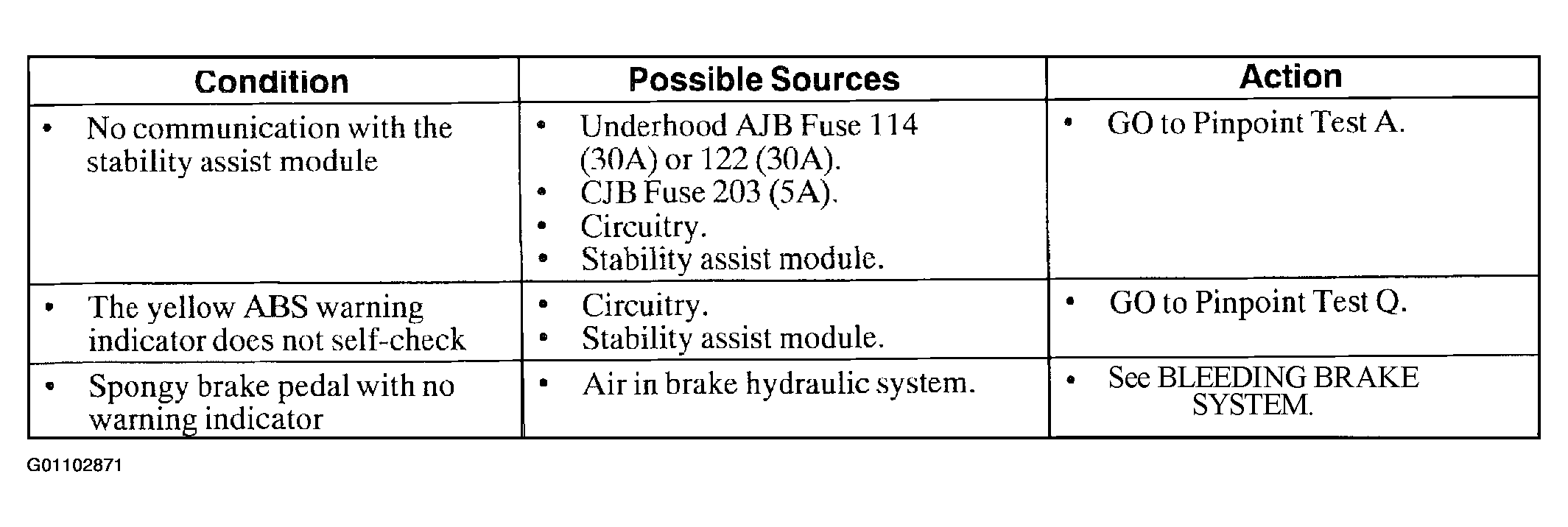

Fig 1: Symptom Chart (1 Of 2)
G01102871Courtesy of FORD MOTOR CO.

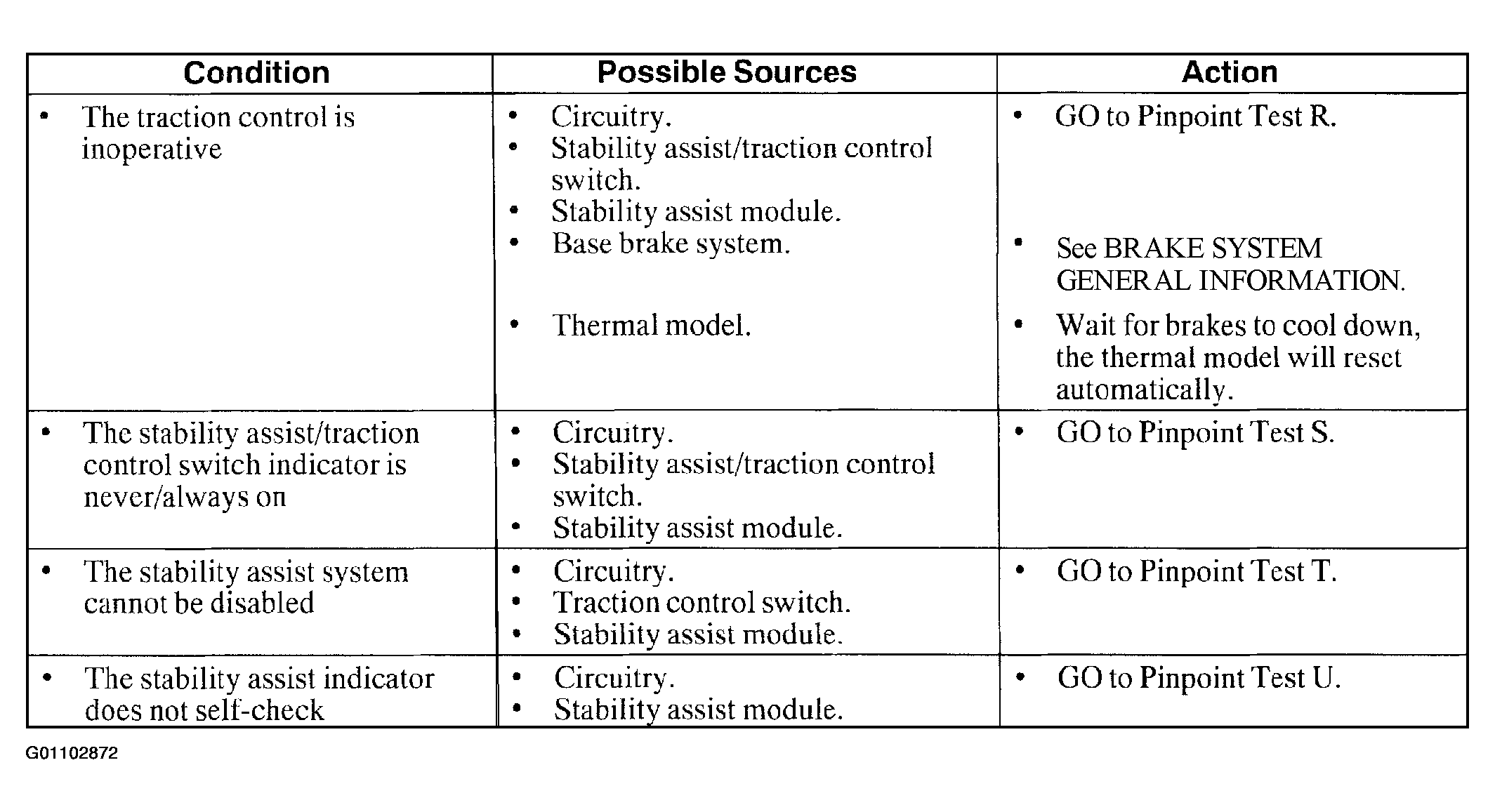

Fig 2: Symptom Chart (2 Of 2)
G01102872Courtesy of FORD MOTOR CO.
