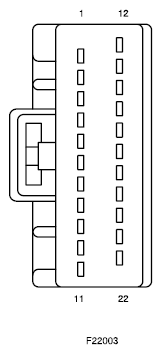

Front Electronic Module (FEM) Connector end view (C201b)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Circuit function |
| 1 |
91S-KA39 (BN/YE) |
Ground, Switched |
| 2 |
... |
not used |
| 3 |
91S-KA16 (BN/GN) |
Ground, Switched |
| 4 |
... |
not used |
| 5 |
... |
not used |
| 6 |
... |
not used |
| 7 |
... |
not used |
| 8 |
... |
not used |
| 9 |
... |
not used |
| 10 |
... |
not used |
| 11 |
31S-LF17 (BK/WH) |
Ground, Switched |
| 12 |
... |
not used |
| 13 |
31S-KA8 (BK/BU) |
Ground, Switched |
| 14 |
31S-KA7 (BK/WH) |
Ground, Switched |
| 15 |
8-GC8 (WH/BU) |
Sensor signal |
| 16 |
... |
not used |
| 17 |
... |
not used |
| 18 |
... |
not used |
| 19 |
... |
not used |
| 20 |
... |
not used |
| 21 |
31S-DK21 (BK/WH) |
Ground, Switched |
| 22 |
31S-LF8 (BK/OG) |
Ground, Switched |
