Torque Converter End Play Check

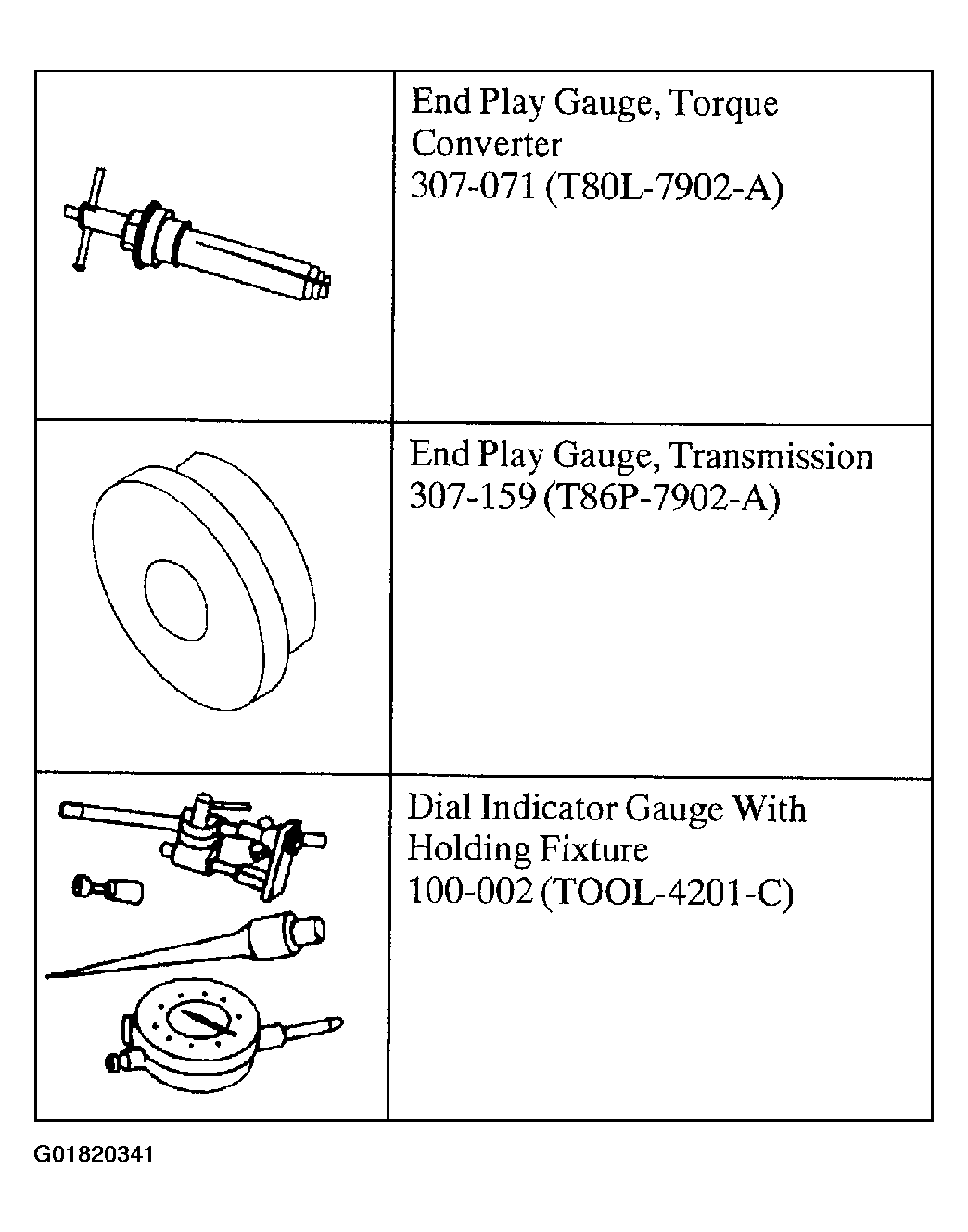

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

Fig 2: Installing End Play Gauge

Courtesy of FORD MOTOR CO.

Fig 3: Installing Dial Indicator

Courtesy of FORD MOTOR CO.

NOTE: If the indicator reading is above specification, install a new the torque converter (7902).

With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.

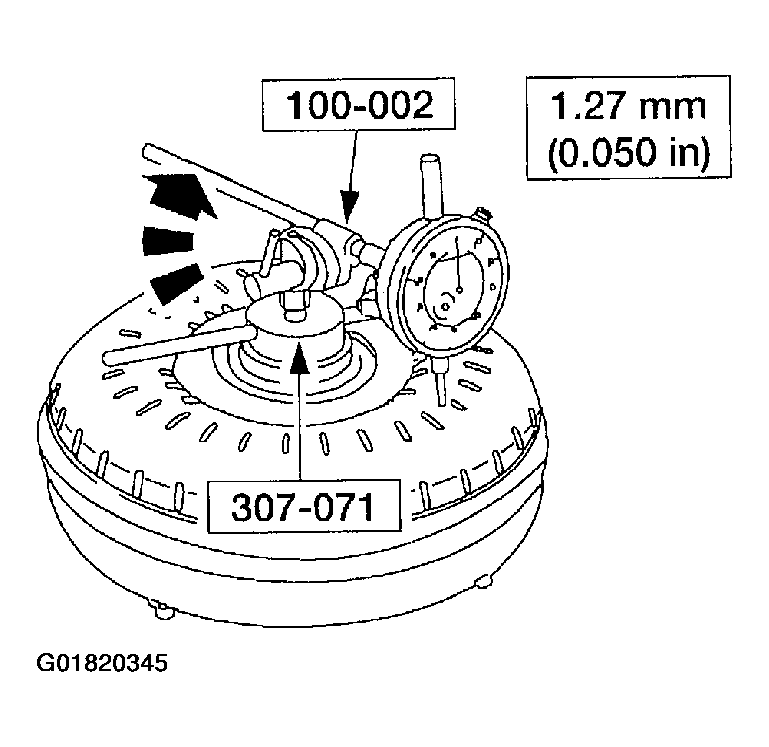

Fig 4: Checking Converter End Play

Courtesy of FORD MOTOR CO.
