Reverse Clutch: Disassembly

  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retainer snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.

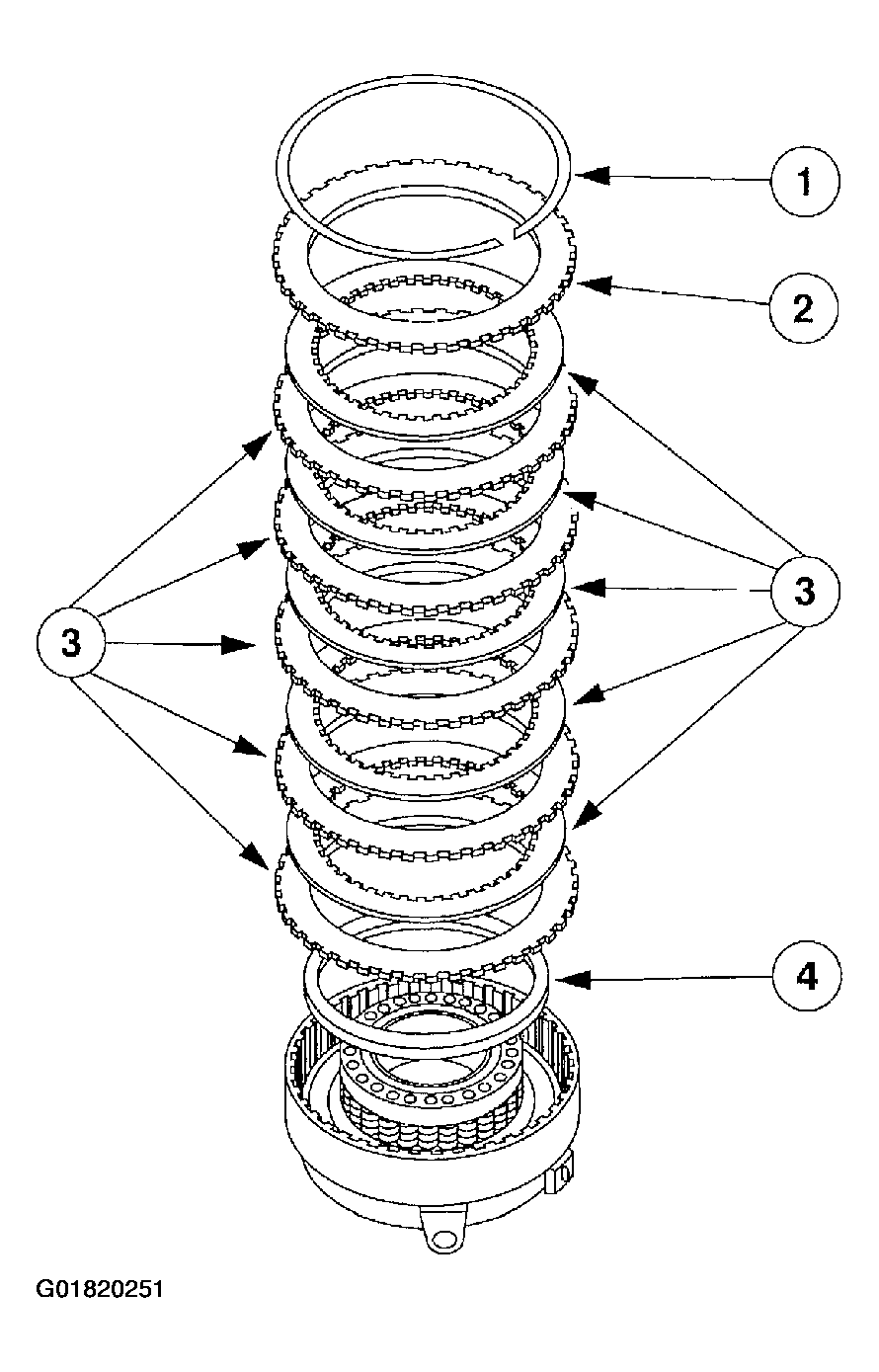

    2. Fig 1: Removing Reverse Clutch Pack Assembly
    G01820251Courtesy of FORD MOTOR CO.
    CAUTION: Do not fully compress the spring retainer.
  2. Use the special tool and snap ring pliers to remove the snap ring.
    3. Fig 2: Removing Snap Ring
    G01820252Courtesy of FORD MOTOR CO.
  3. Remove the reverse clutch support and spring.

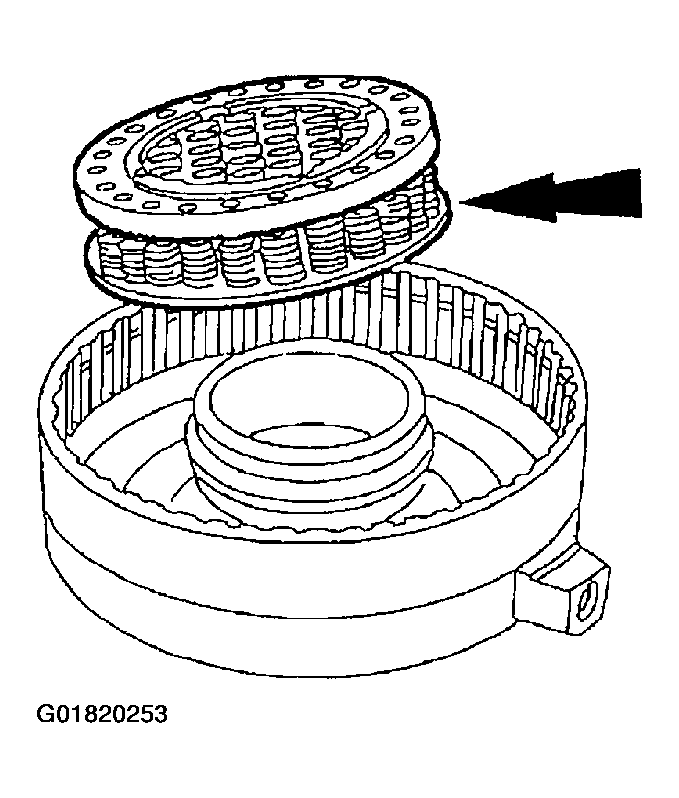

    4. Fig 3: Removing Reverse Clutch Support & Spring
    G01820253Courtesy of FORD MOTOR CO.
  4. Remove the reverse clutch piston.

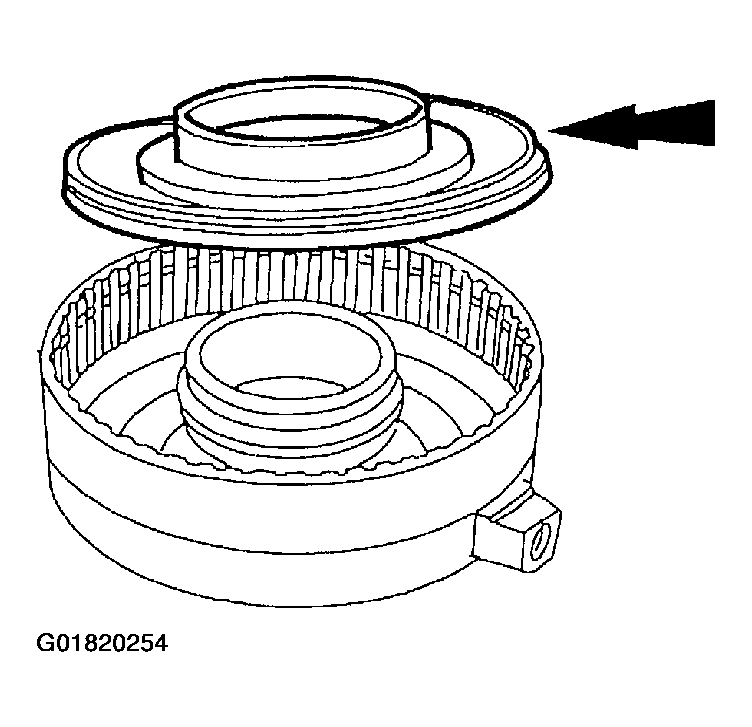

    5. Fig 4: Removing Reverse Clutch Piston
    G01820254Courtesy of FORD MOTOR CO.
  5. Remove the reverse clutch piston outer seal.
    6. Fig 5: Removing Reverse Clutch Piston Outer Seal
    G01820255Courtesy of FORD MOTOR CO.
  6. Using the special tool, remove the reverse clutch piston inner seal.
Fig 6: Removing Reverse Clutch Piston Inner Seal
G01820256Courtesy of FORD MOTOR CO.
