Neutral Drive Accumulator

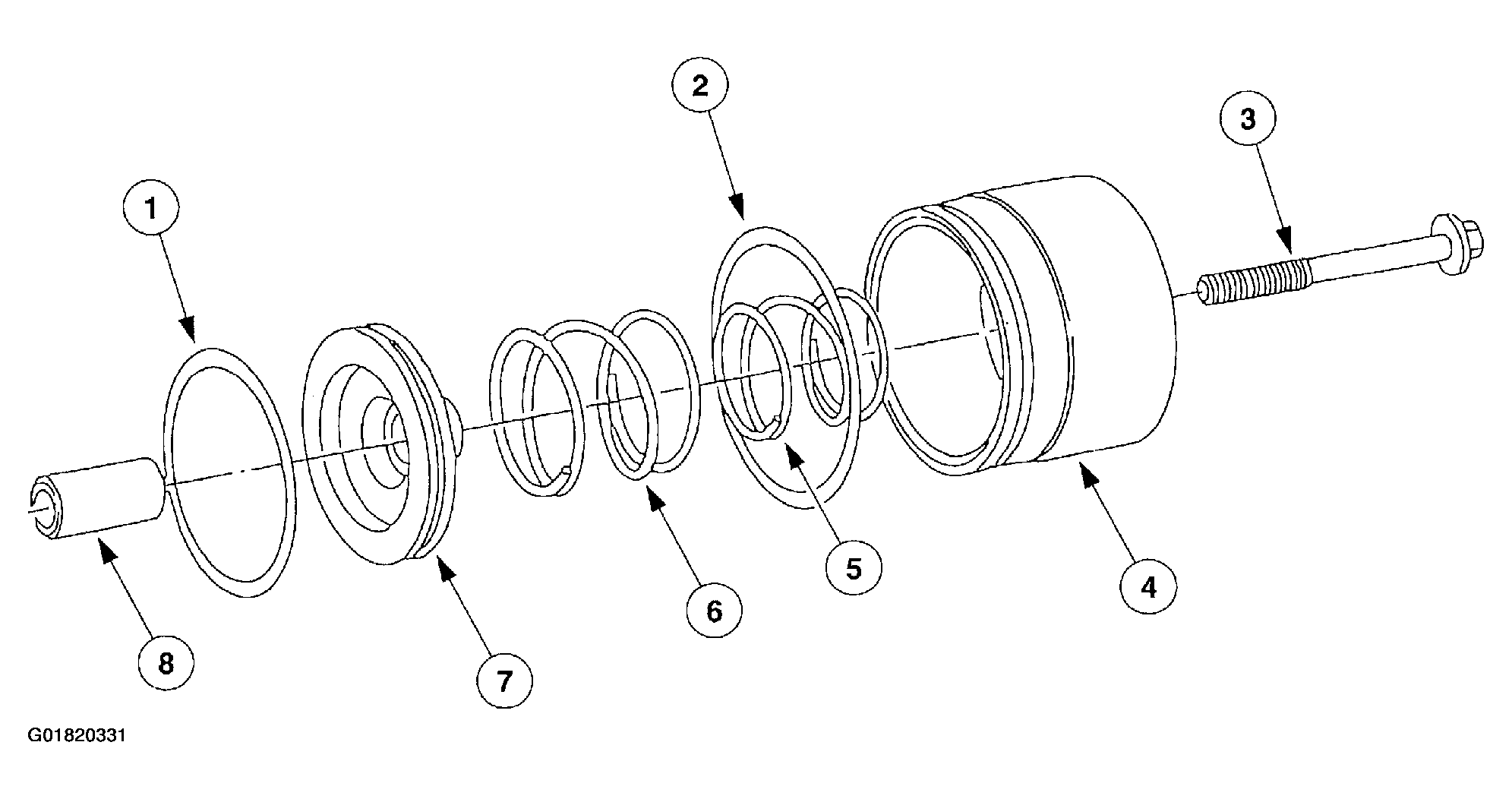

Fig 1: Neutral Drive Accumulator - Component View
G01820331Courtesy of FORD MOTOR CO.

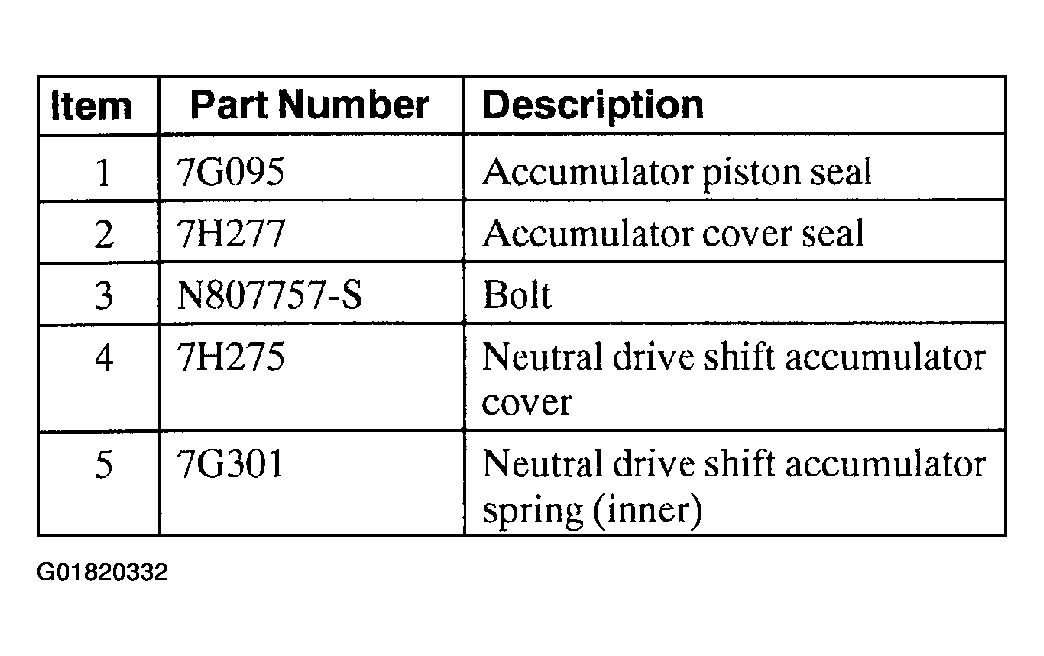

Fig 2: Neutral Drive Accumulator - Component View Legend (Items 1-5)
G01820332Courtesy of FORD MOTOR CO.

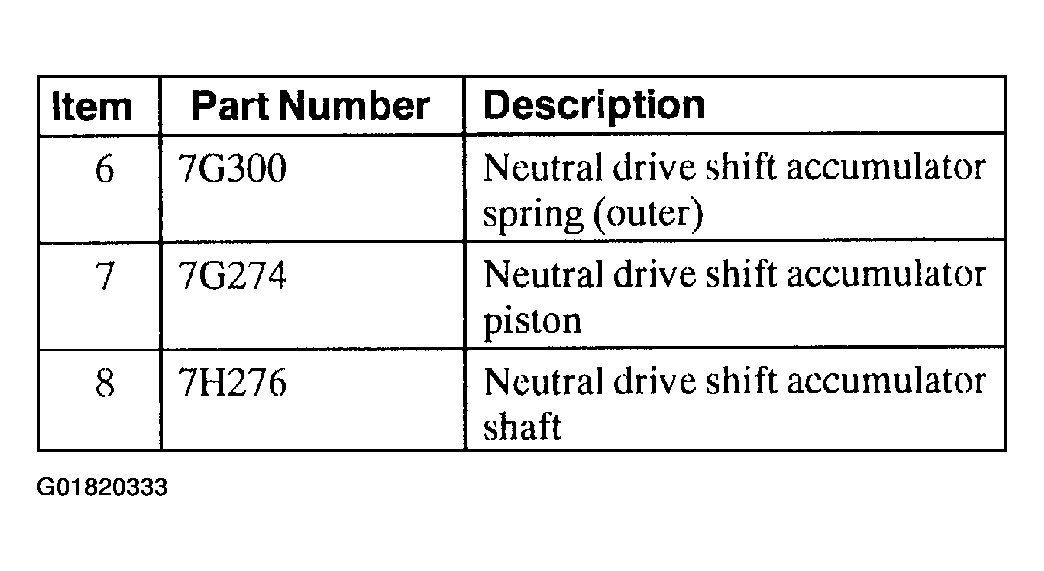

Fig 3: Neutral Drive Accumulator - Component View Legend (Items 6-8)
G01820333Courtesy of FORD MOTOR CO.
    NOTE: Lightly coat the seals with petroleum jelly prior to installation.
    • Remove and install a new neutral drive accumulator piston seal.
    • Remove and install a new neutral drive accumulator cover seal.
Fig 4: Locating Neutral Drive Accumulator Seals
G01820334Courtesy of FORD MOTOR CO.
