Low-Intermediate One-Way Clutch: Disassembly

  1. Remove the low-intermediate one-way clutch assembly.
    2. Fig 1: Removing Low-Intermediate One-Way Clutch Assembly
    G01820295Courtesy of FORD MOTOR CO.

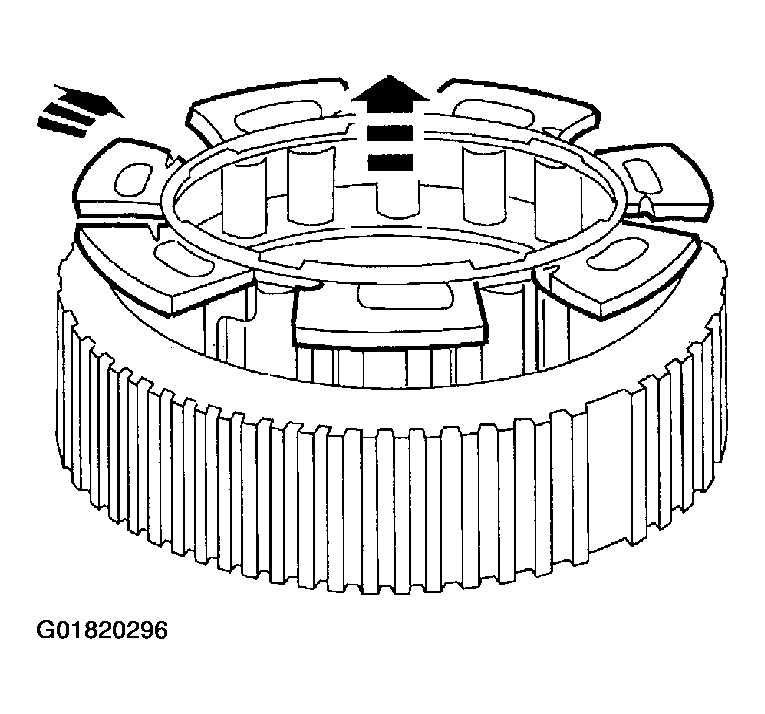

  2. Remove the low-intermediate one-way clutch roller and cage. Rotate clockwise to unlock.
Fig 2: Removing Low-Intermediate One-Way Clutch Roller & Cage
G01820296Courtesy of FORD MOTOR CO.
