Low-Intermediate One-Way Clutch: Assembly

NOTE: Before installing, clean and inspect the low-intermediate one-way clutch rollers and cage for cracks, brinelling, or scoring. Install new if necessary.
1. Install the low-intermediate one-way clutch roller and cage. Rotate counterclockwise to lock in place.

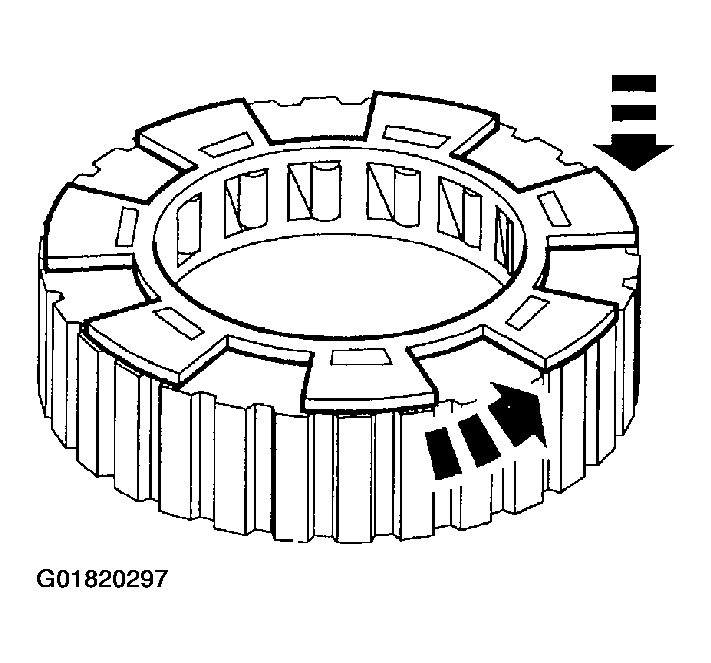

Fig 1: Installing Low-Intermediate One-Way Clutch Roller & Cage
Courtesy of FORD MOTOR CO.
2. Clean and inspect the rear sun gear assembly.
   1. Inspect the bushing.
   2. Inspect the inner race.
   3. Inspect the bearing.
Fig 2: Inspecting Rear Sun Gear Assembly
Courtesy of FORD MOTOR CO.
NOTE: The outer splined race should rotate counterclockwise and hold clockwise.
3. Install the low-intermediate one-way clutch outer race.

Fig 3: Installing Low-Intermediate One-Way Clutch Outer Race

Courtesy of FORD MOTOR CO.
