Forward Clutch Cylinder: Assembly

    NOTE: The lip on the seal faces toward the bottom of the cylinder. Make sure the check ball moves freely.
  1. Install a new inner piston seal.

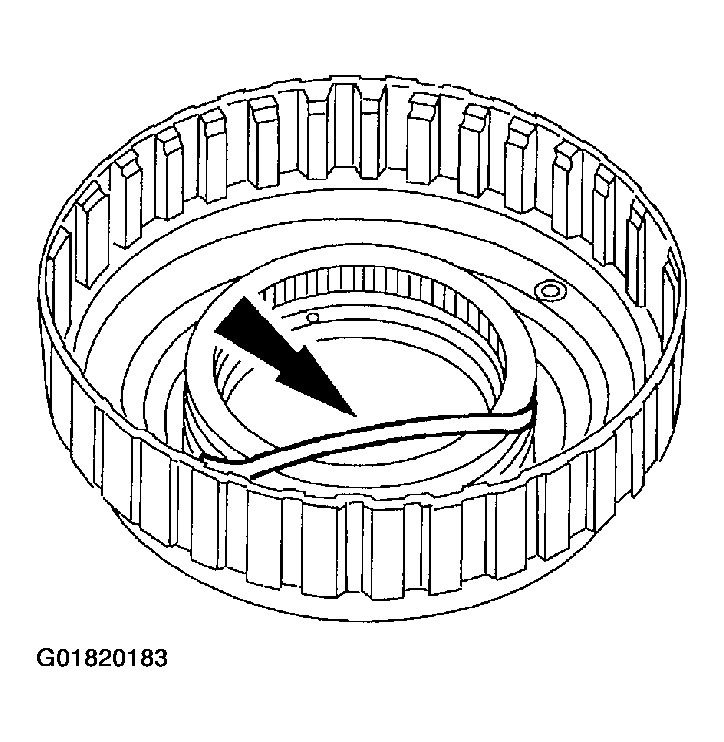

    2. Fig 1: Installing New Inner Piston Seal
    G01820183Courtesy of FORD MOTOR CO.
    NOTE: Lightly coat all the seals with petroleum jelly during assembly.
  2. Install the piston assembly using the special tool.

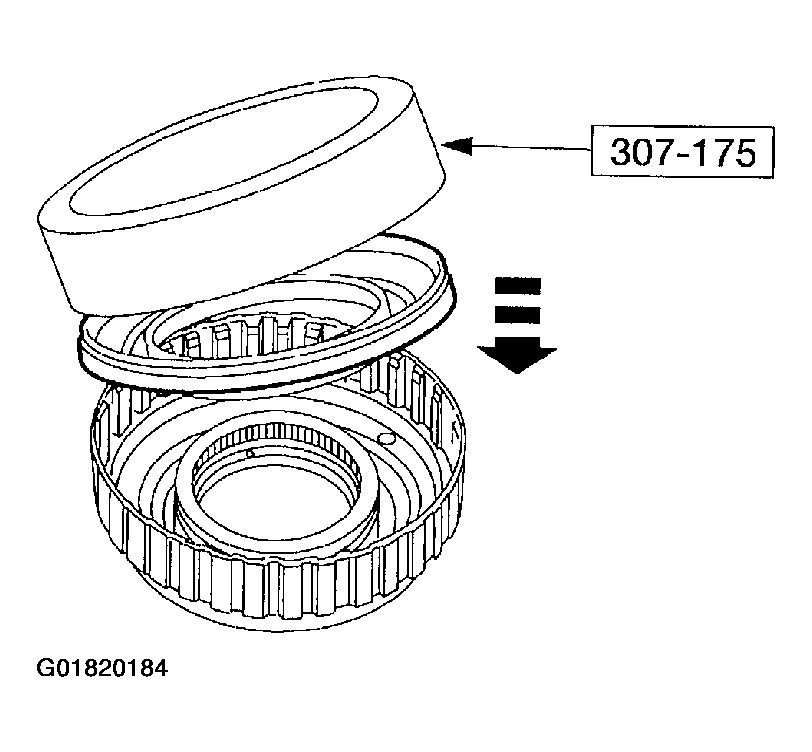

    3. Fig 2: Installing Piston Assembly
    G01820184Courtesy of FORD MOTOR CO.
  3. Install the clutch return spring.

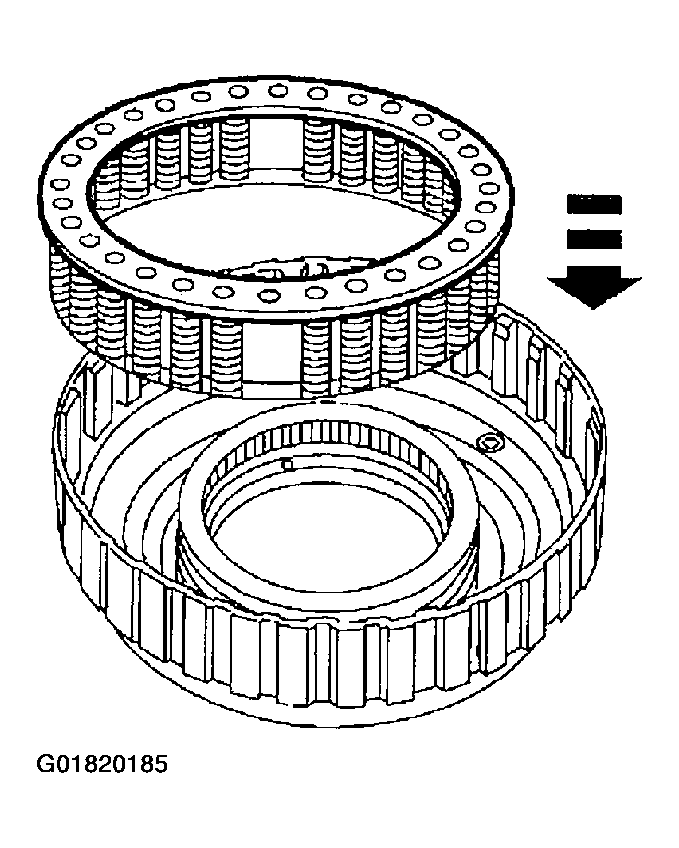

    4. Fig 3: Installing Clutch Return Spring
    G01820185Courtesy of FORD MOTOR CO.
    CAUTION: Do not fully compress the return spring retainer.
  4. Install the snap ring using the snap ring pliers and special tool.

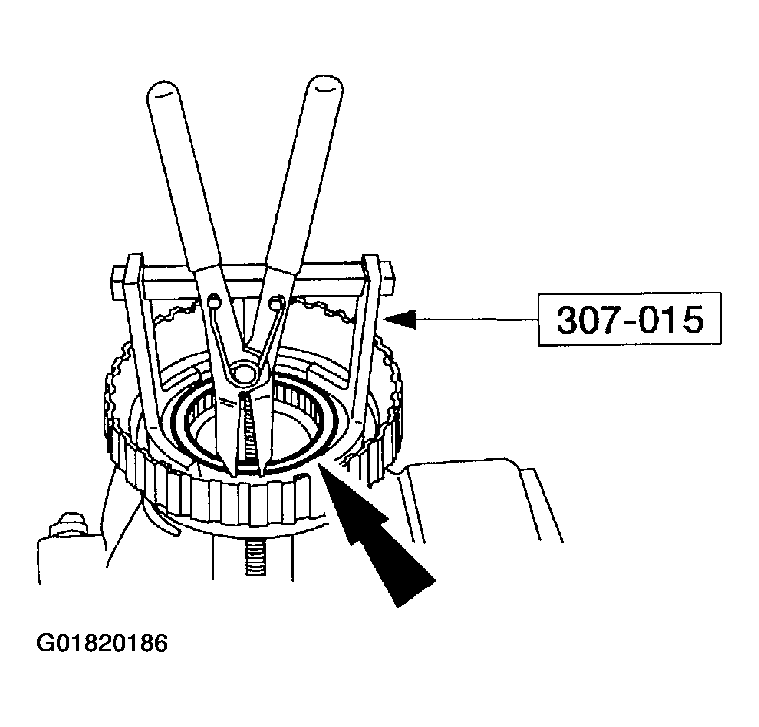

    5. Fig 4: Installing Snap Ring
    G01820186Courtesy of FORD MOTOR CO.
  5. Install the forward clutch plates.
    1. Install the clutch packs.
    2. Install the pressure plate.
    3. Install the retaining ring.

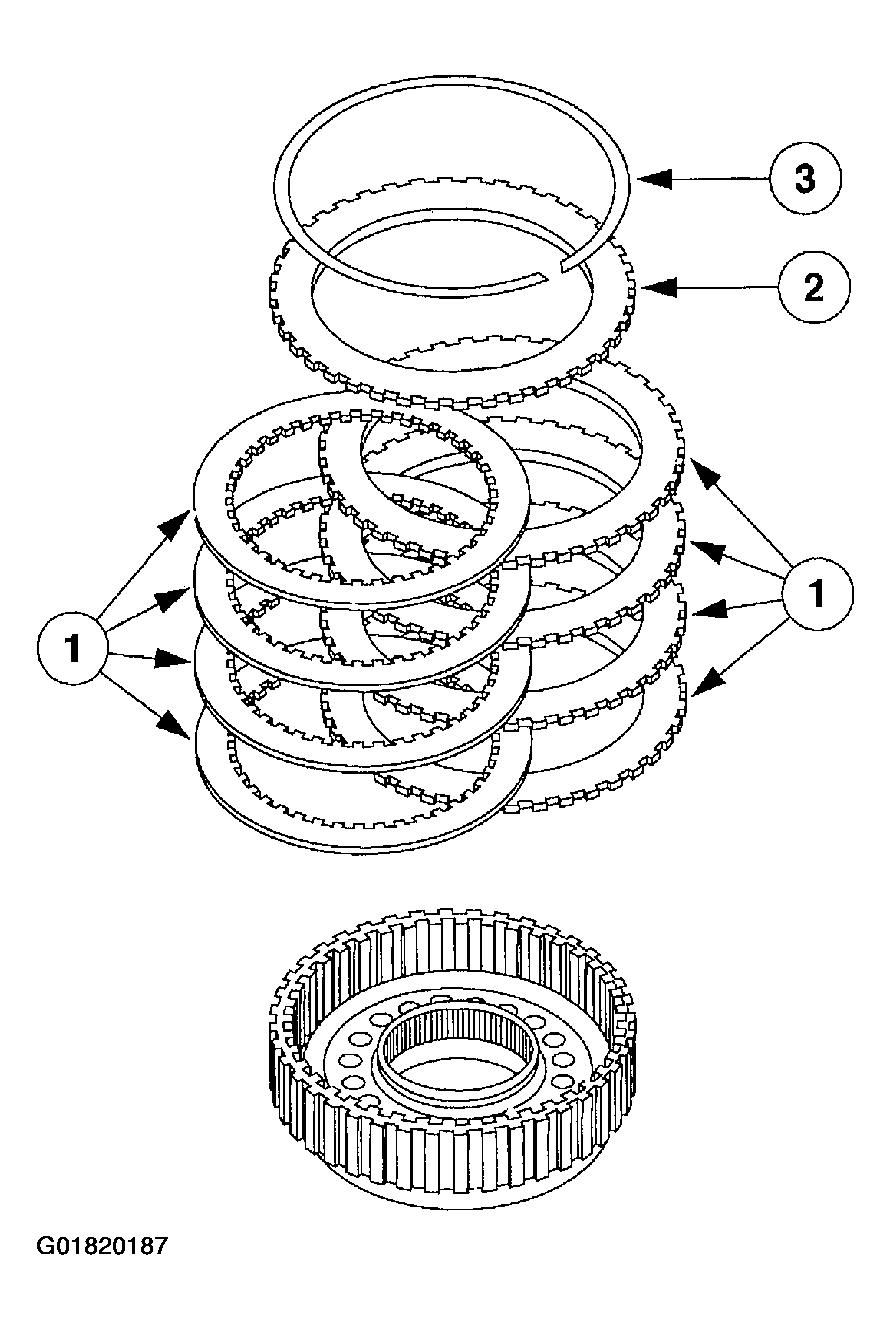

    6. Fig 5: Installing Forward Clutch Plates
    G01820187Courtesy of FORD MOTOR CO.
  6. Measure the clearance between the retaining ring and the clutch cylinder lip.
  7. If the clearance is not within specification selective retaining rings are available. Check the clearance after installing the correct selective retaining ring.

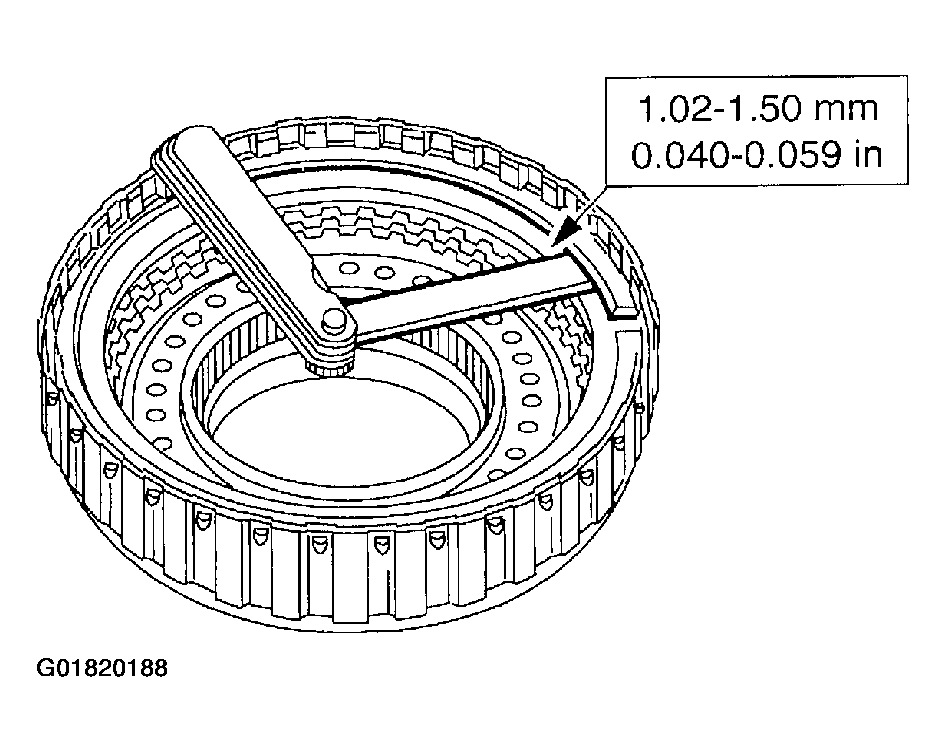

Fig 6: Measuring Forward Clutch Plate Clearance
G01820188Courtesy of FORD MOTOR CO.
Fig 7: Selective Retaining Ring (1 Of 2)
G01820189Courtesy of FORD MOTOR CO.
Fig 8: Selective Retaining Ring (2 Of 2)
G01820190Courtesy of FORD MOTOR CO.
