Fluid Pump

A variable displacement pump supplies fluid under pressure to the hydraulic system. The torque converter cover rotates a driveshaft that operates the pump.

The pump assembly has the following parts:

• body (part of the main control)
• cover
• rotor with vanes and related parts
• pivoting bore ring with a pump priming spring

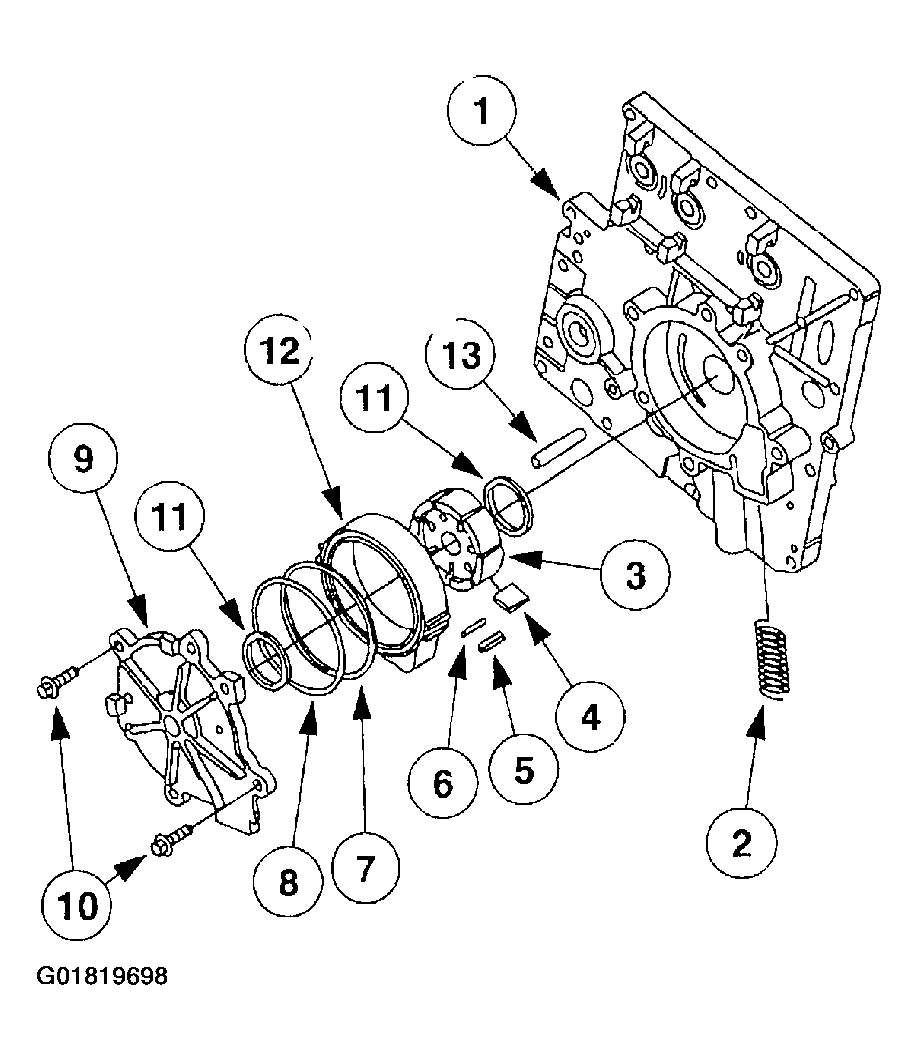

Fig 1: Fluid Pump Components

Courtesy of FORD MOTOR CO.

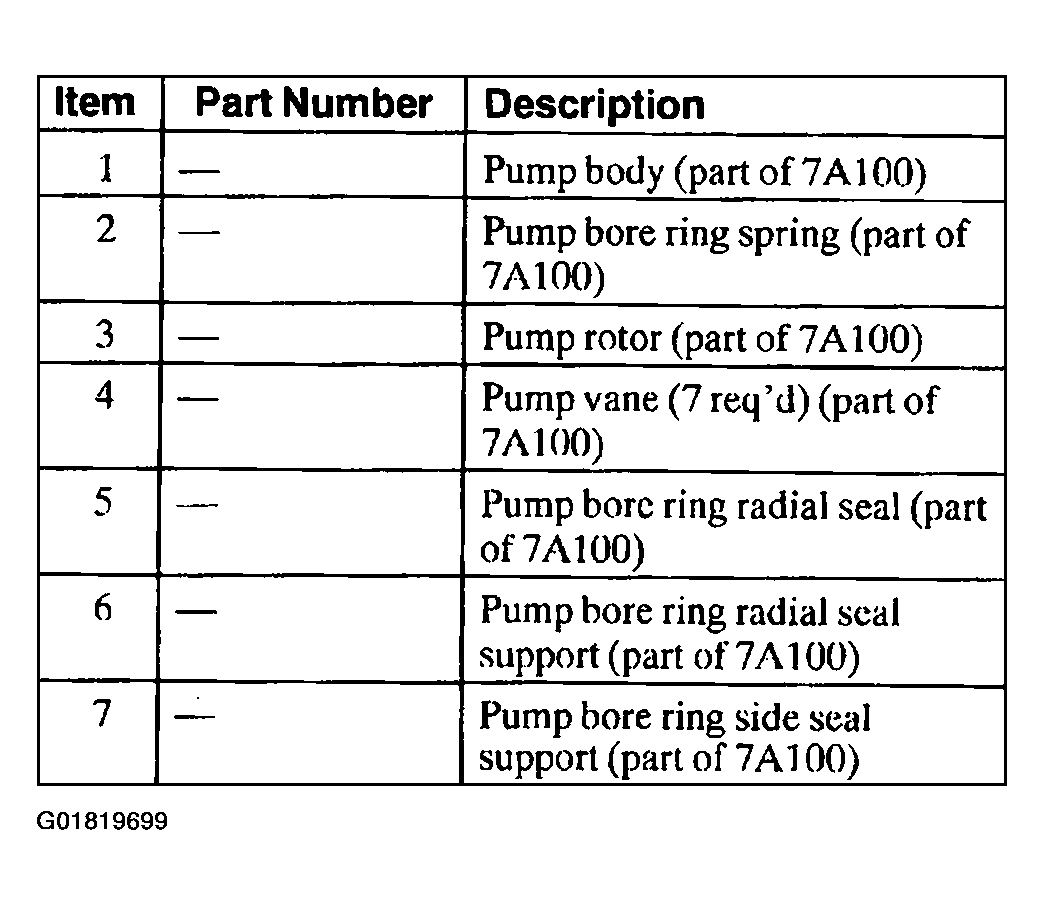

Fig 2: Fluid Pump Components Legend (Items 1-7)

Courtesy of FORD MOTOR CO.

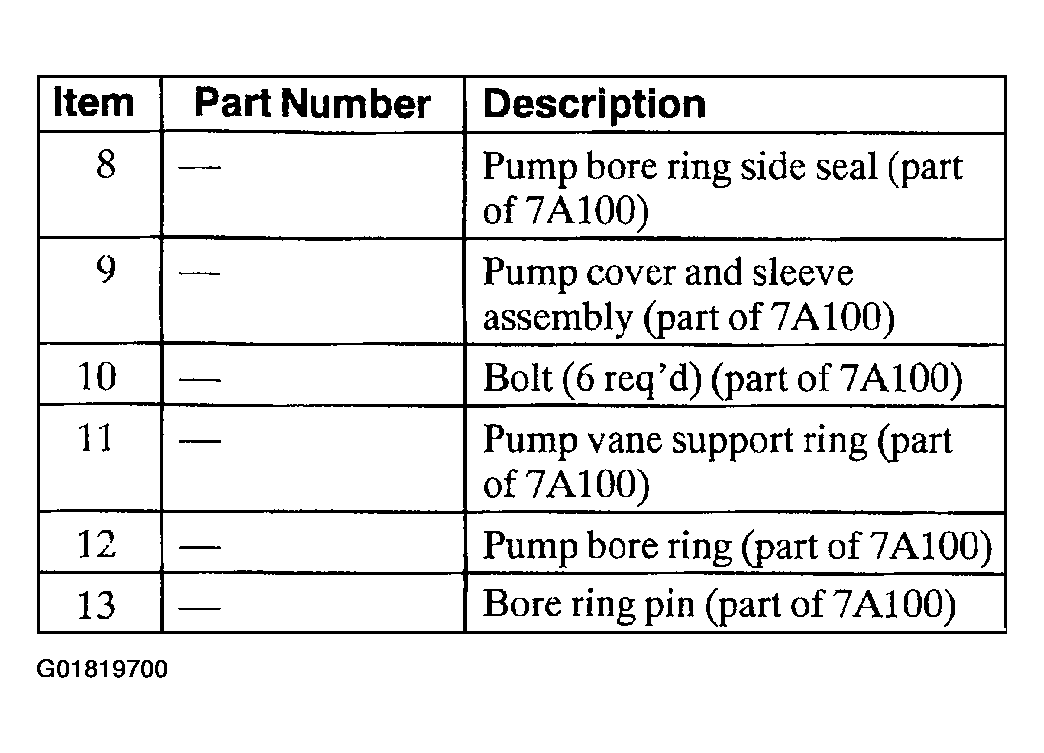

Fig 3: Fluid Pump Components Legend (Items 8-13)

Courtesy of FORD MOTOR CO.

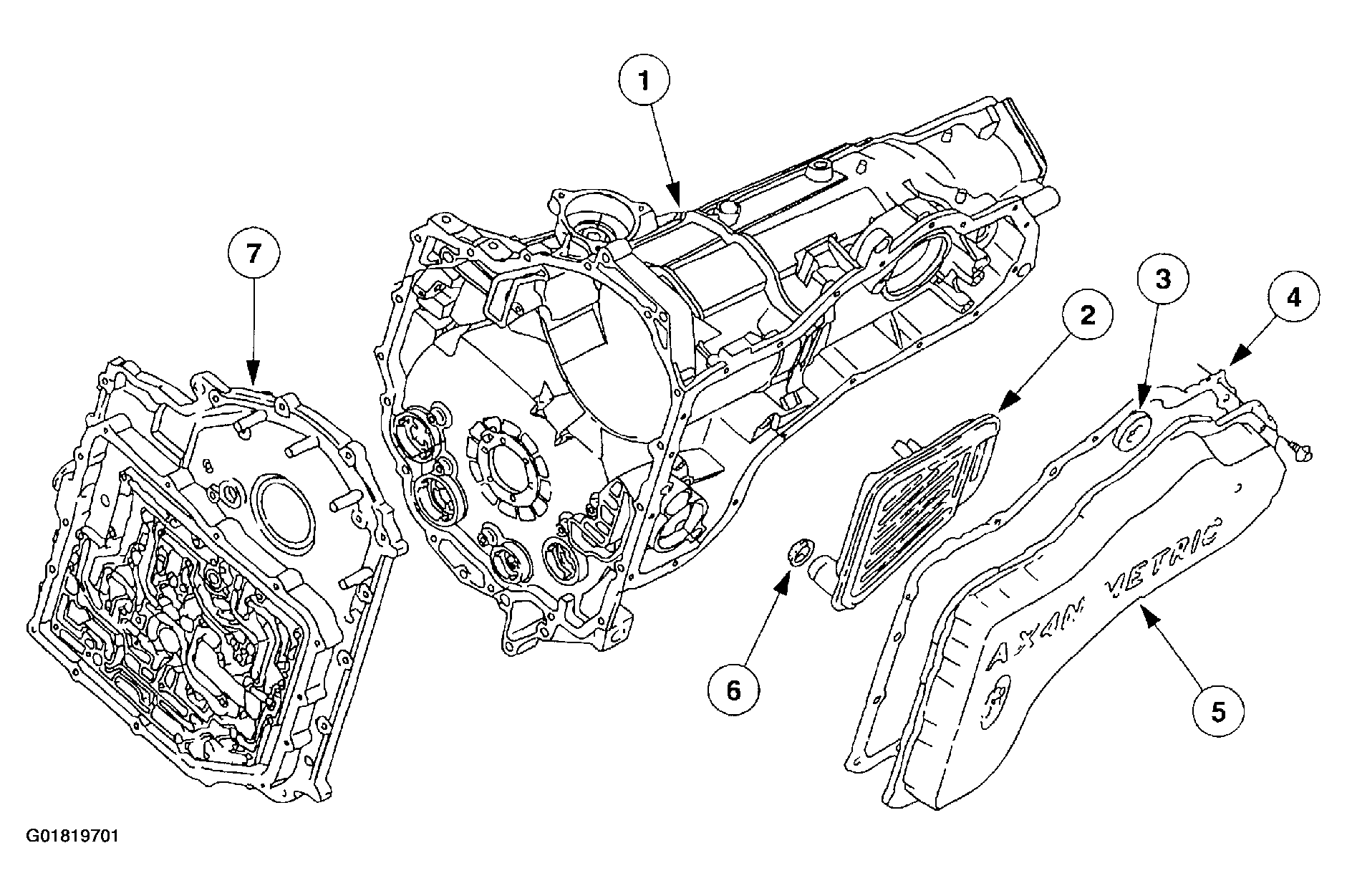

Fig 4: Fluid Sump and Case Components

Courtesy of FORD MOTOR CO.

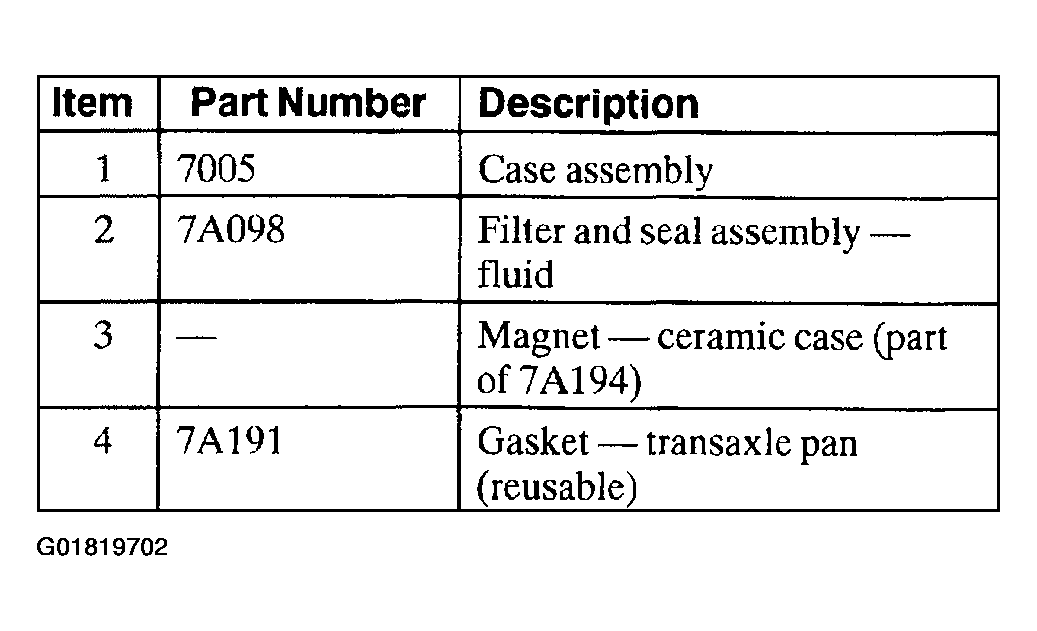

Fig 5: Fluid Sump and Case Component Legend (Items 1-4)

Courtesy of FORD MOTOR CO.

Fig 6: Fluid Sump and Case Component Legend (Items 5-7)

Courtesy of FORD MOTOR CO.
