Pinpoint Test B: Shift Control Linkage Out Of Proper Gear Relationship

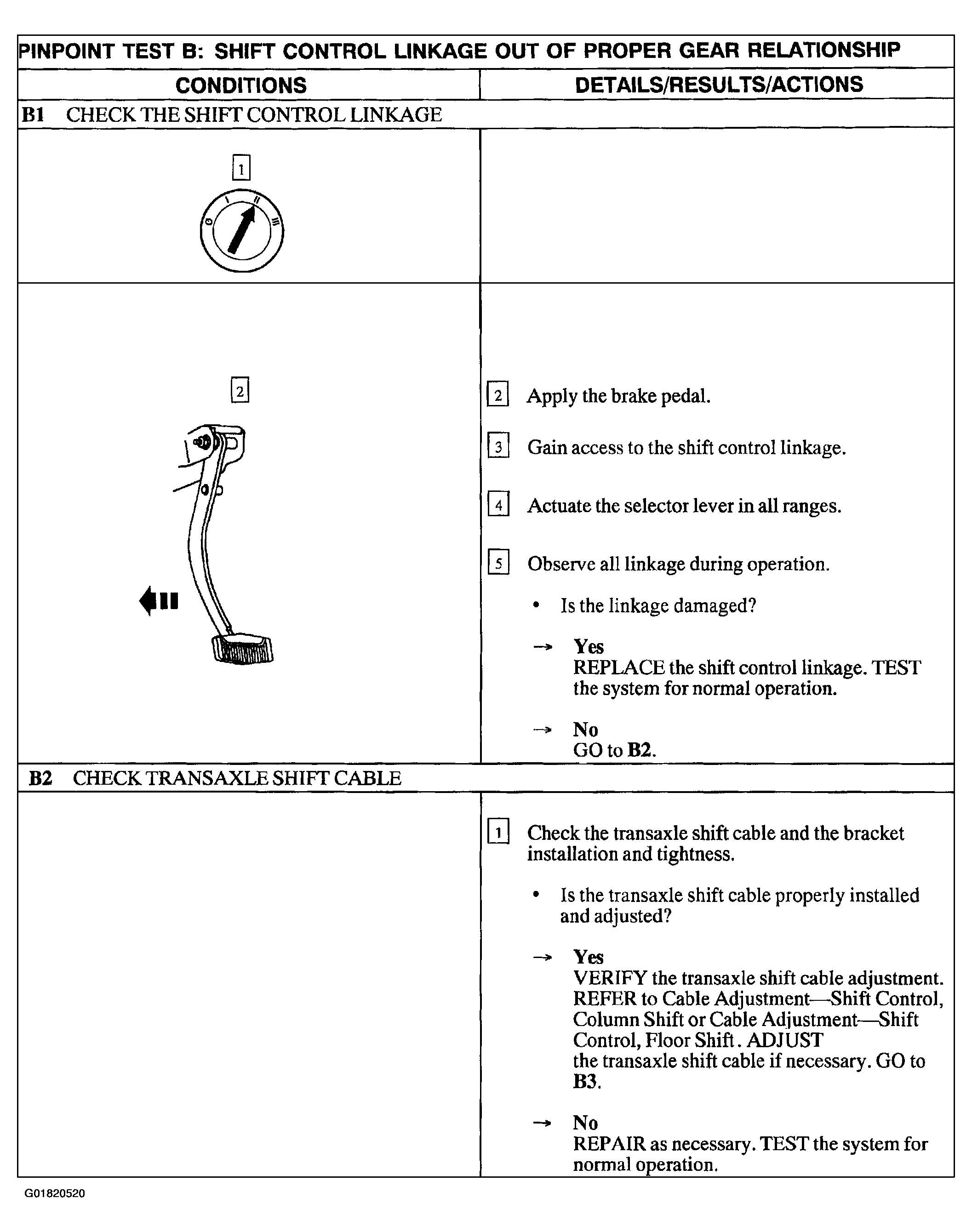

Fig 1: Pinpoint Test B: Shift Control Linkage Out Of Proper Gear Relationship (Steps B1-B2)
G01820520Courtesy of FORD MOTOR CO.

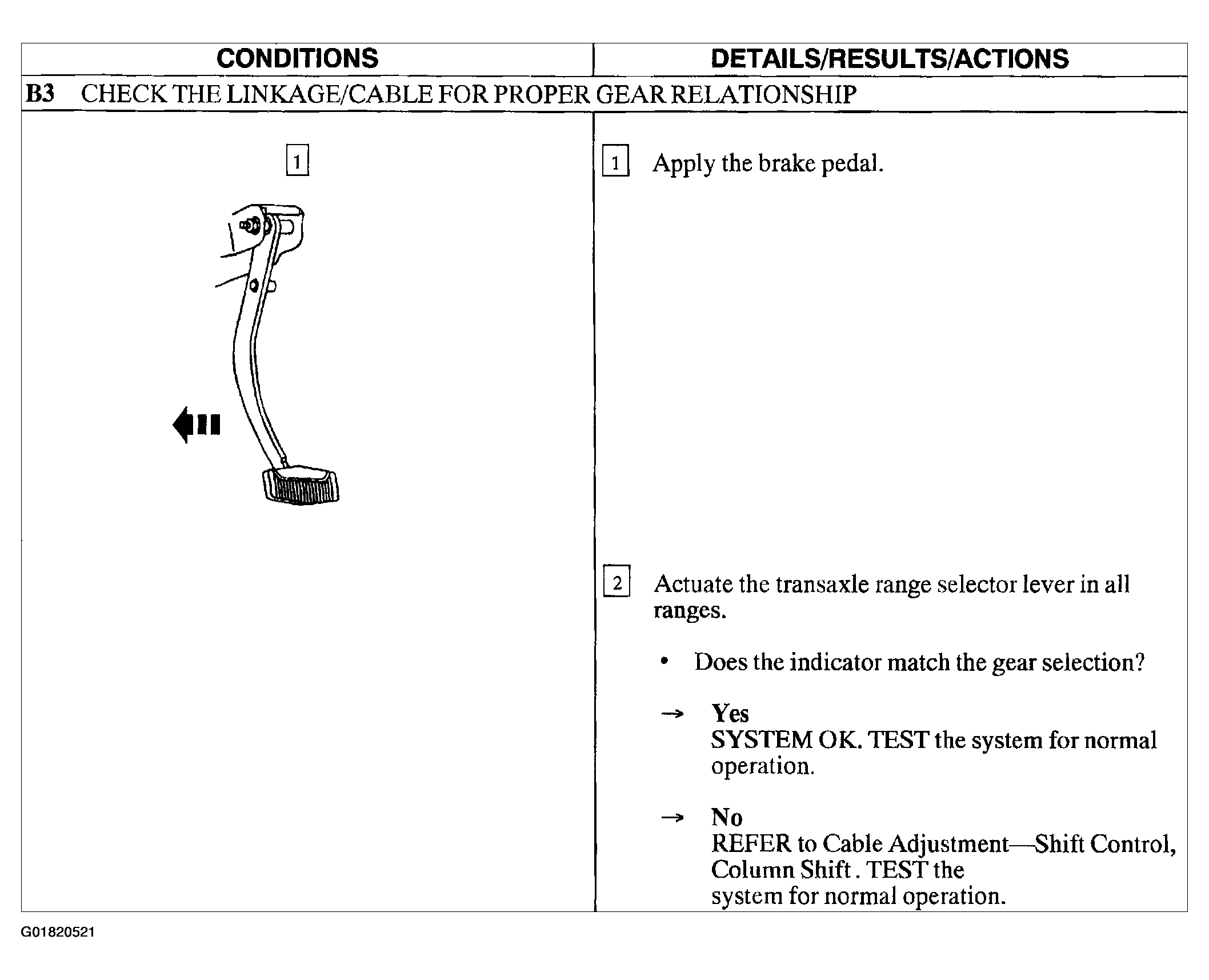

Fig 2: Pinpoint Test B: Shift Control Linkage Out Of Proper Gear Relationship (Step B3)
G01820521Courtesy of FORD MOTOR CO.
