Pinpoint Test A: The Shift Interlock System Does Not Release Or Lock Properly

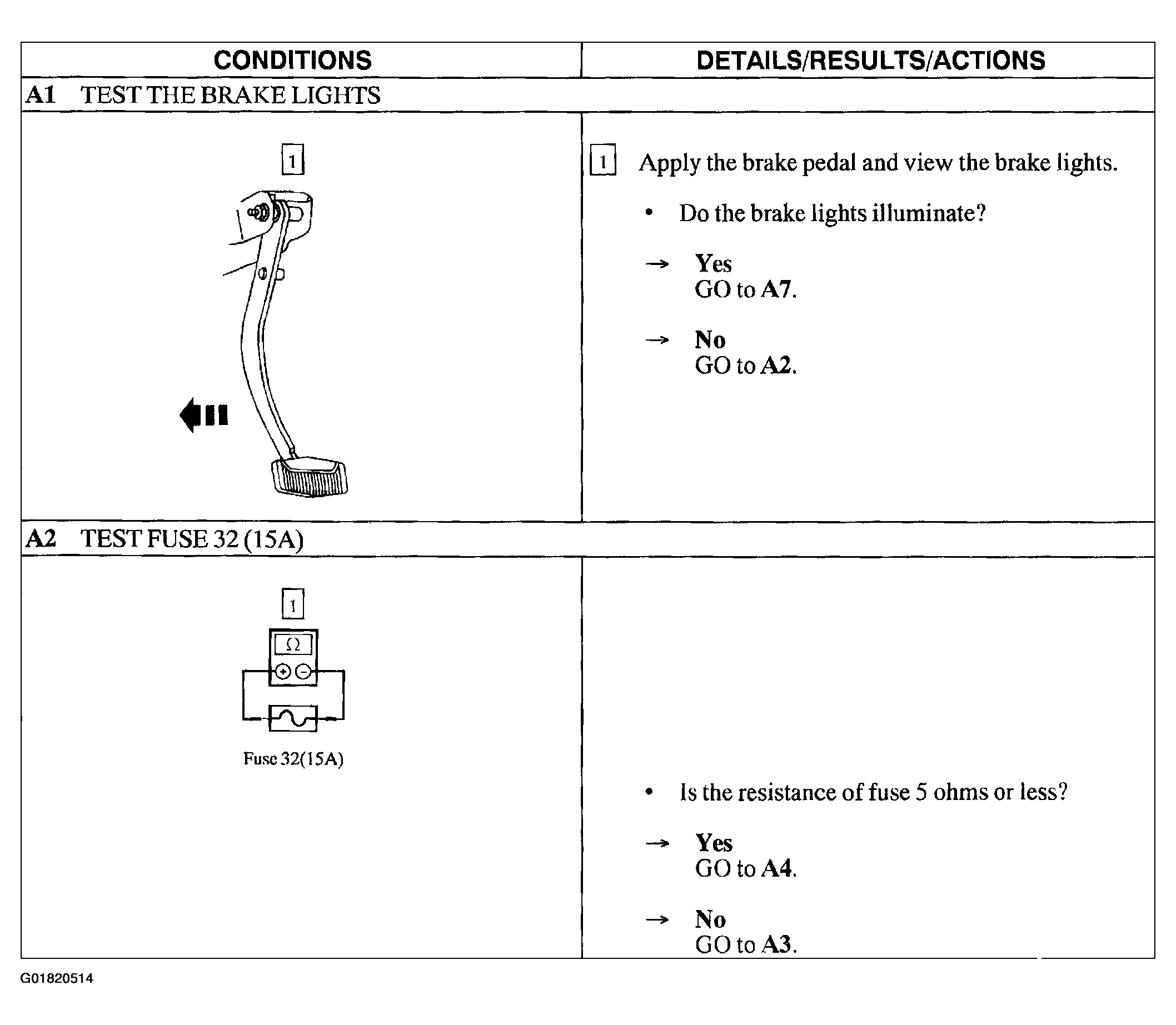

Fig 1: Pinpoint Test A: The Shift Interlock System Does Not Release Or Lock Properly (Steps A1-A2)

Courtesy of FORD MOTOR CO.

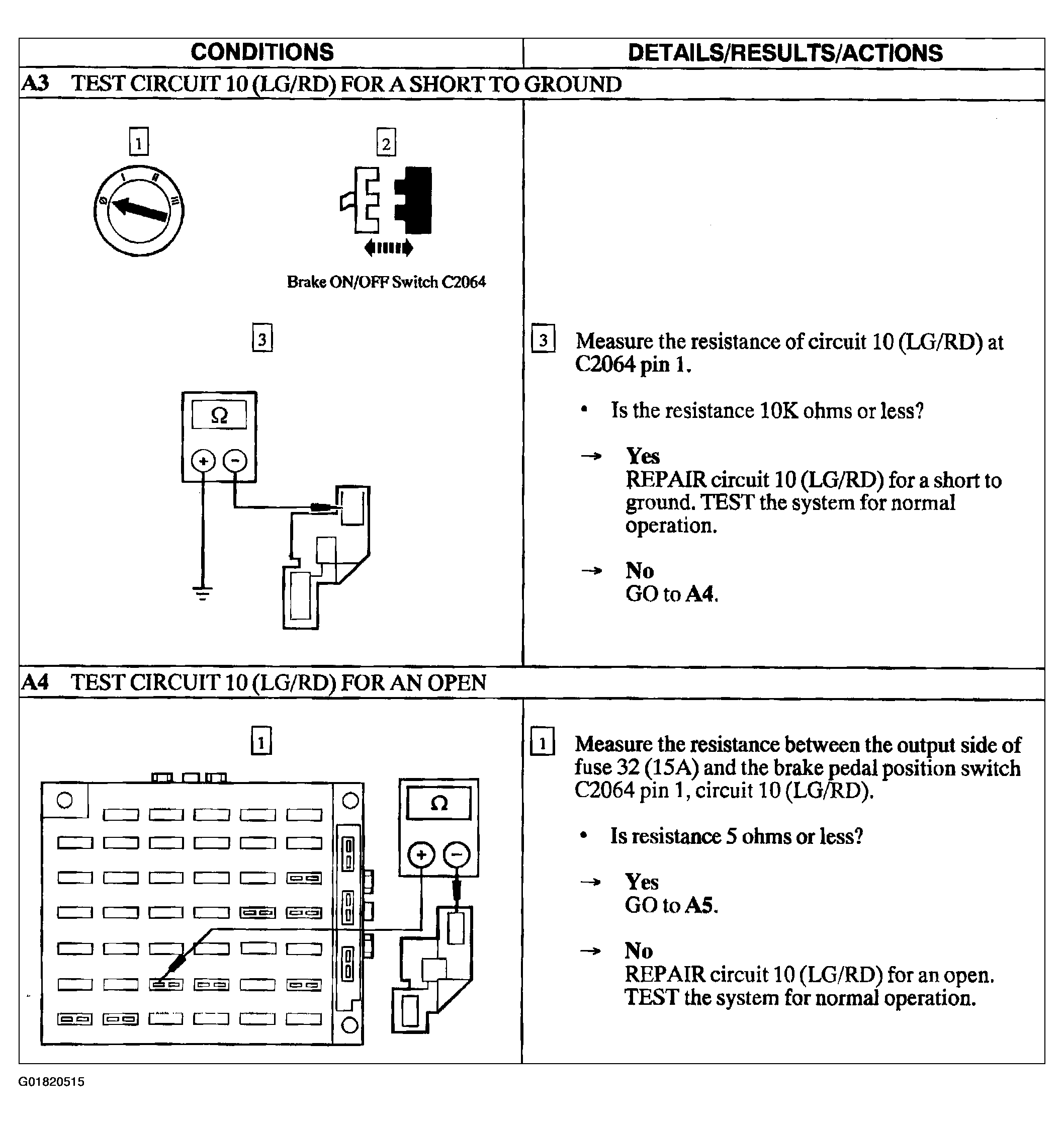

Fig 2: Pinpoint Test A: The Shift Interlock System Does Not Release Or Lock Properly (Steps A3-A4)

Courtesy of FORD MOTOR CO.

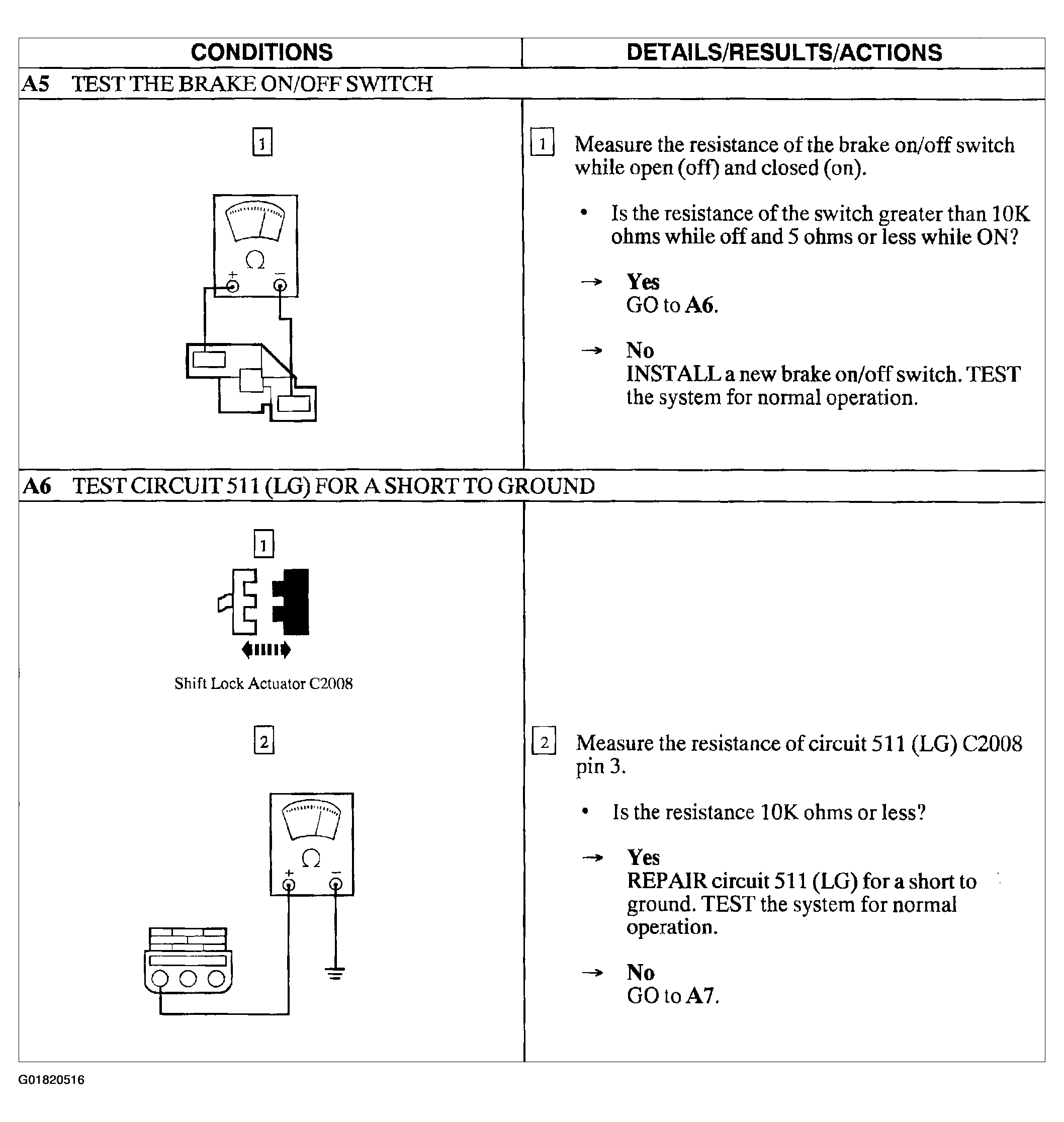

Fig 3: Pinpoint Test A: The Shift Interlock System Does Not Release Or Lock Properly (Steps A5-A6)

Courtesy of FORD MOTOR CO.

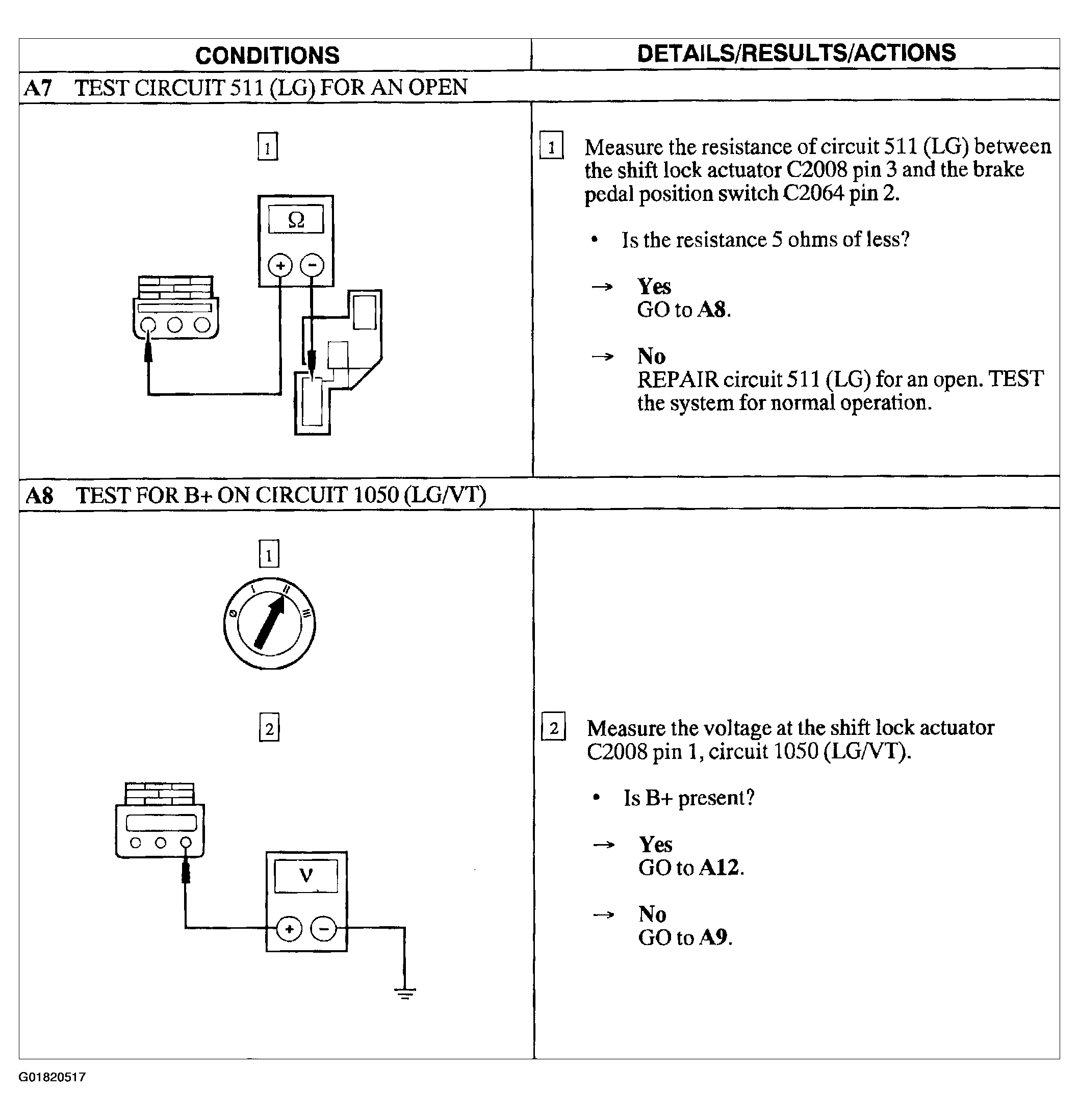

Fig 4: Pinpoint Test A: The Shift Interlock System Does Not Release Or Lock Properly (Steps A7-A8)

Courtesy of FORD MOTOR CO.

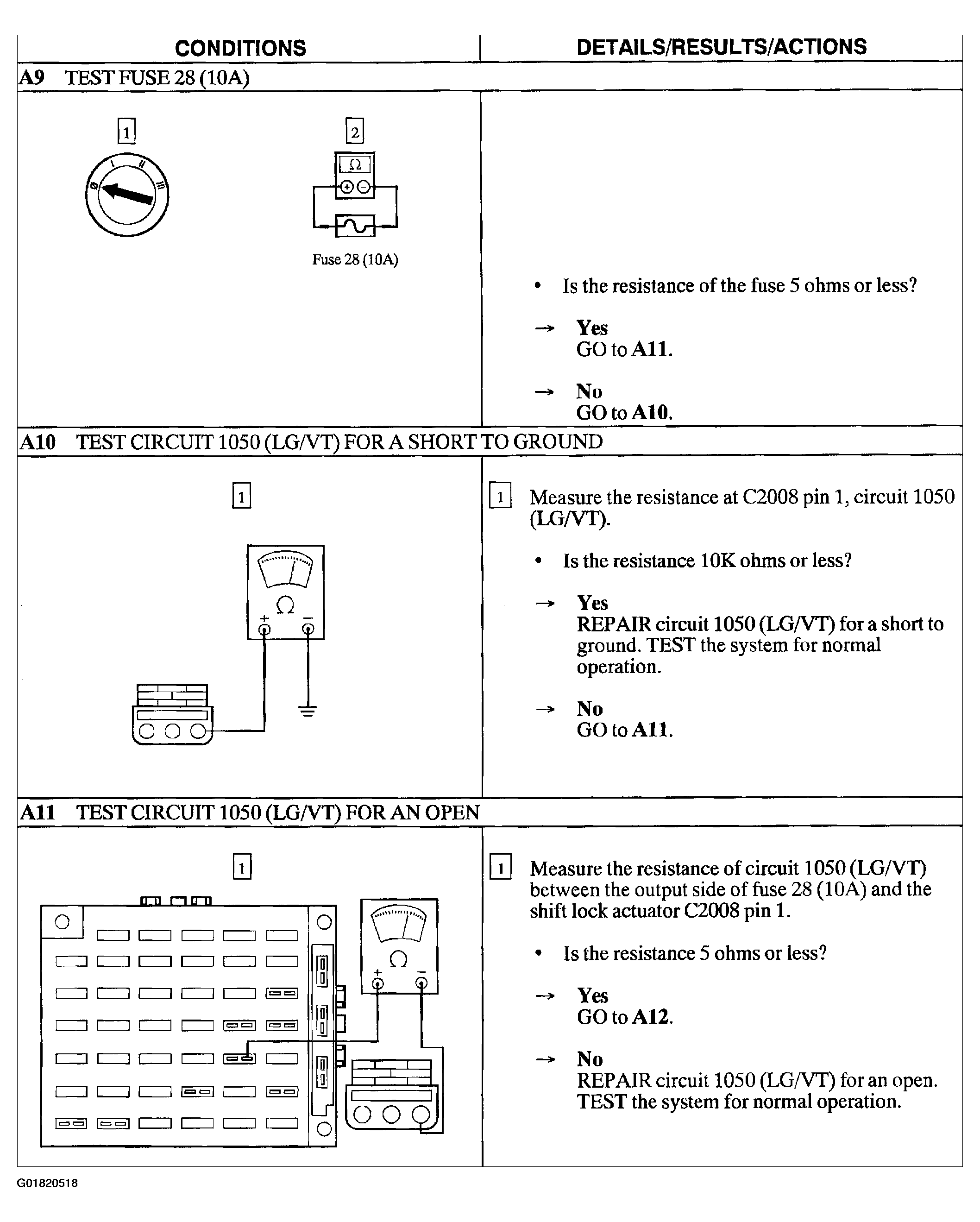

Fig 5: Pinpoint Test A: The Shift Interlock System Does Not Release Or Lock Properly (Steps A9-A11)

Courtesy of FORD MOTOR CO.

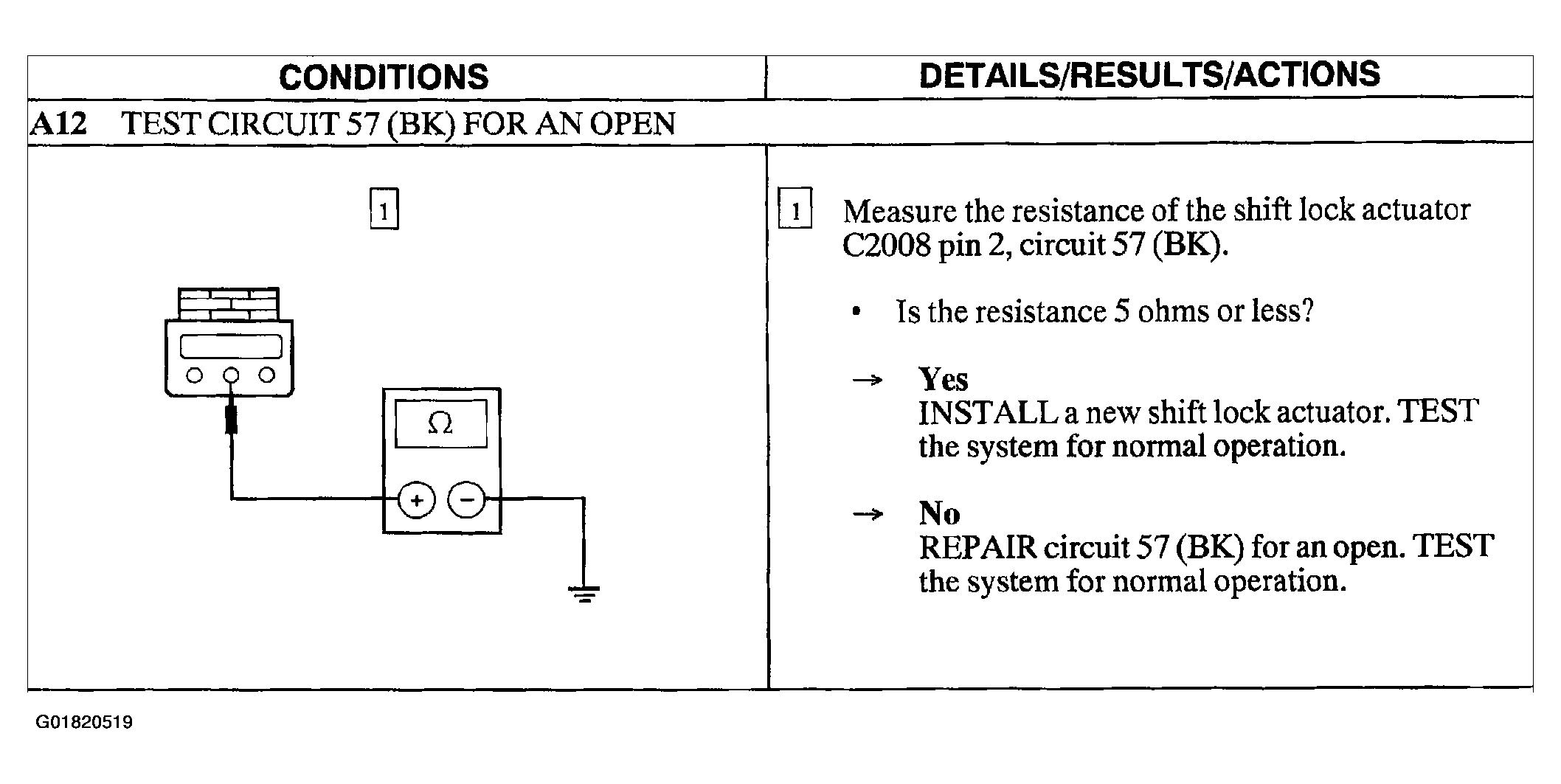

Fig 6: Pinpoint Test A: The Shift Interlock System Does Not Release Or Lock Properly (Step A12)

Courtesy of FORD MOTOR CO.
