Removal and Installation

  1. Remove the instrument panel upper finish panel.

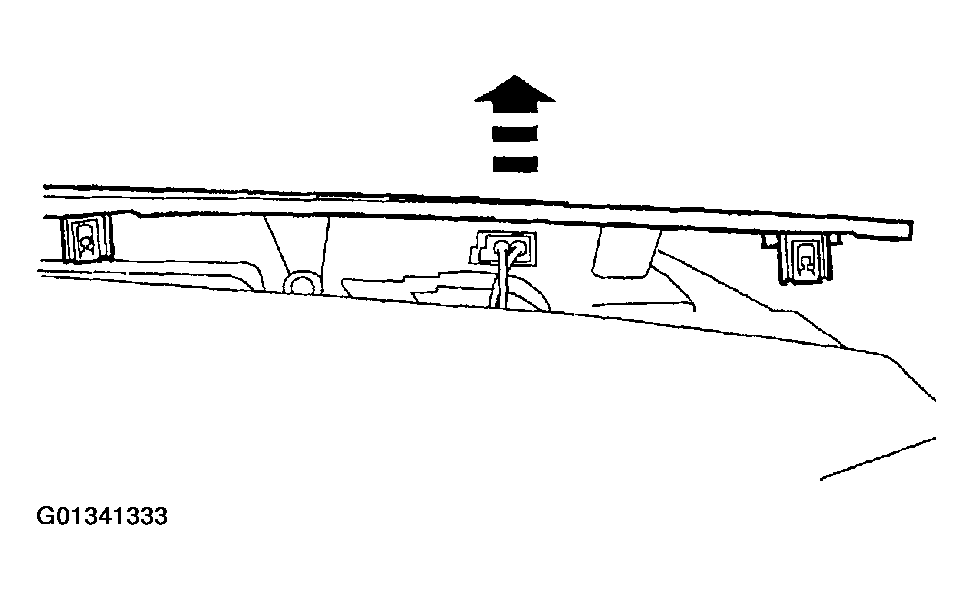

    Fig 1: Removing Instrument Panel Upper Finish Panel
    G01341333Courtesy of FORD MOTOR CO.
  2. Disconnect the wire harness connector.

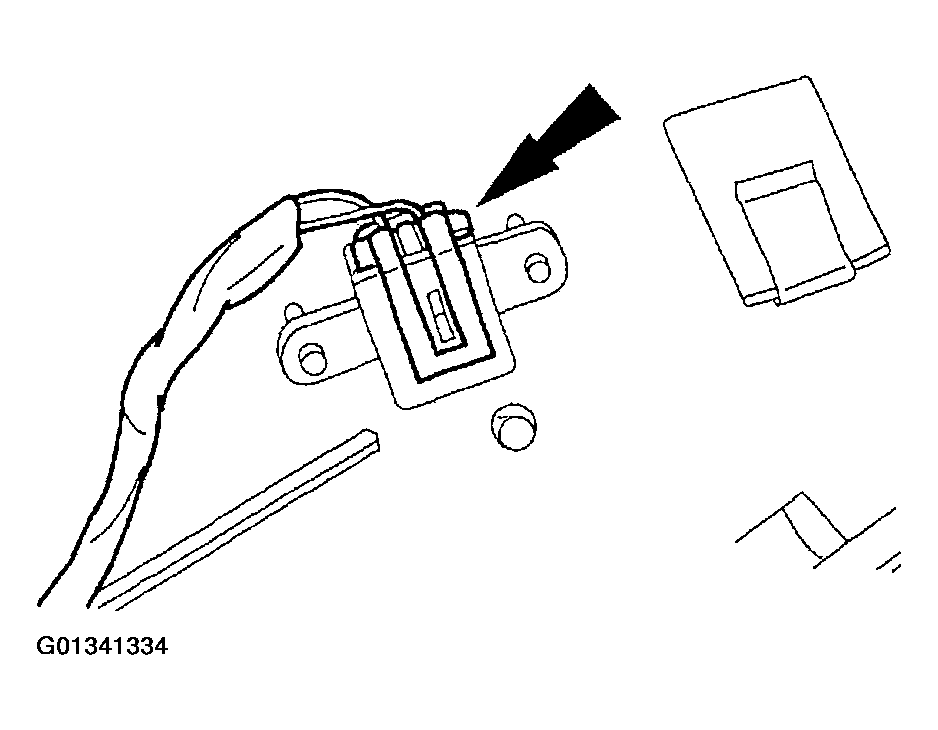

    Fig 2: Disconnecting Wire Harness Connector
    G01341334Courtesy of FORD MOTOR CO.
  3. Remove the A/C sunload sensor from the instrument panel upper finish panel.

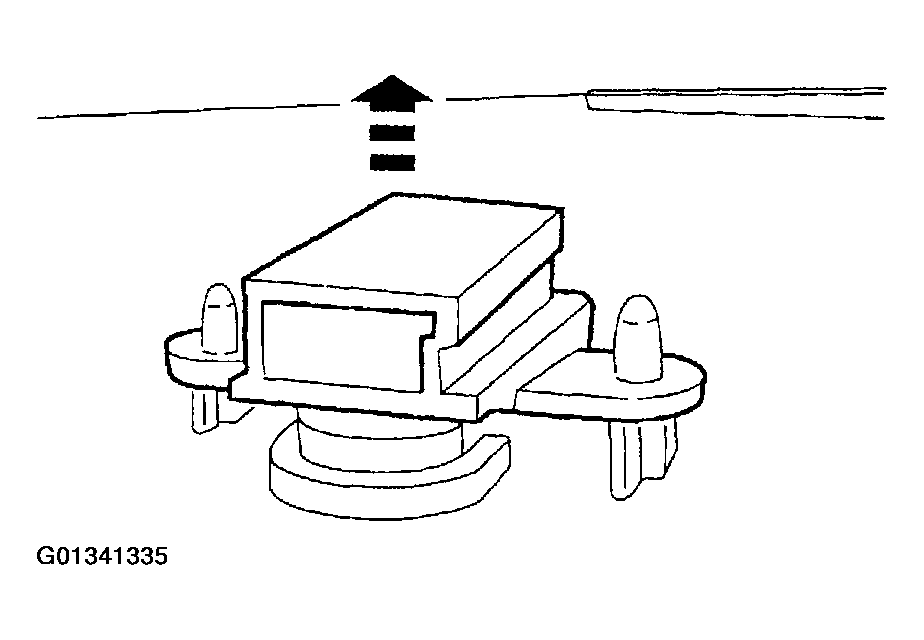

    Fig 3: Removing A/C Sunload Sensor
    G01341335Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
