Relay - Mini ISO

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

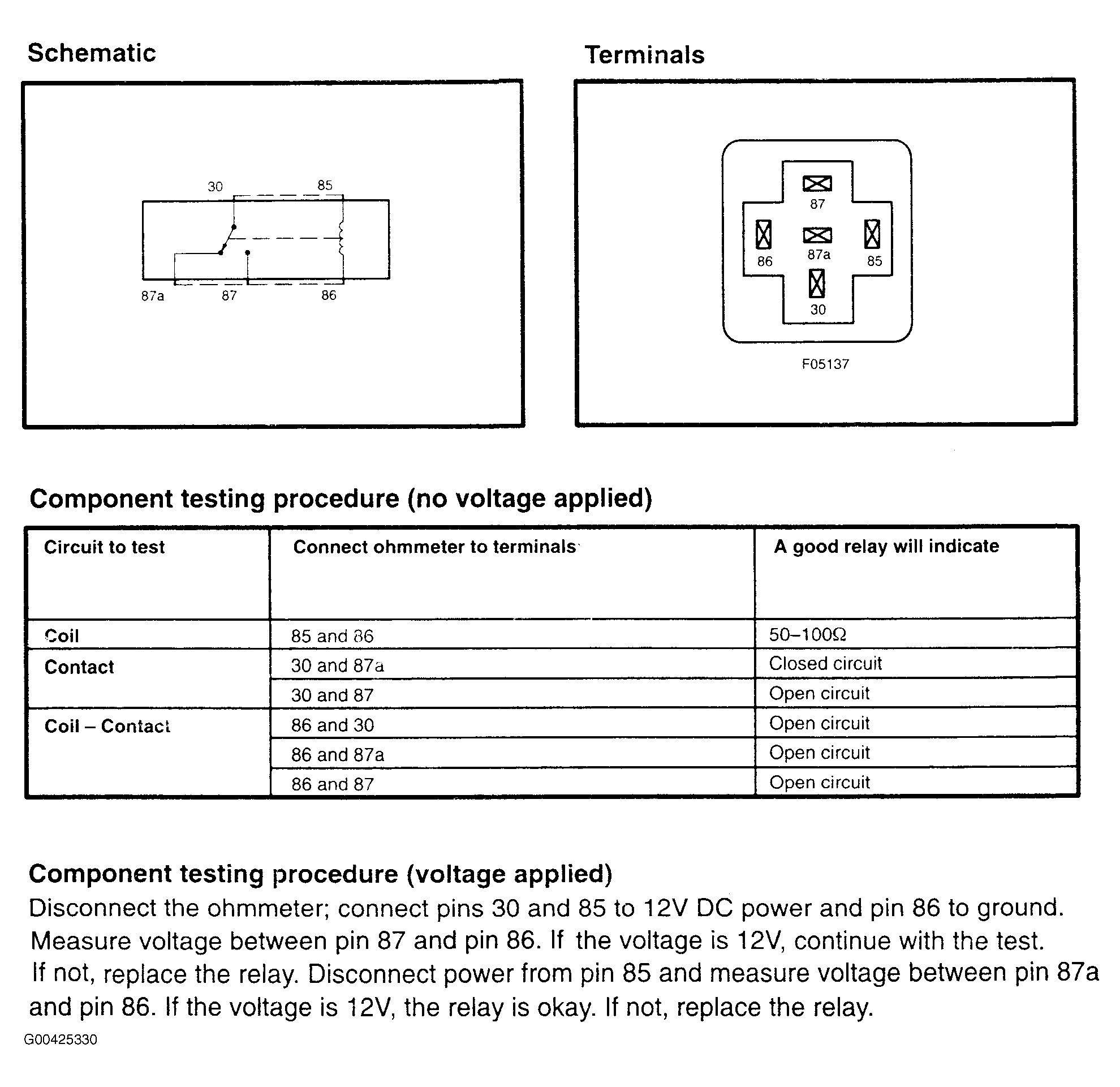

Fig 1: Relay - Mini ISO
G00425330Courtesy of FORD MOTOR CO.
