Pinpoint Test C: The Module Does Not Respond To The Diagnostic Tool - Driver Door Module (DDM)

WARNING: This page is about a different car, the 2002 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

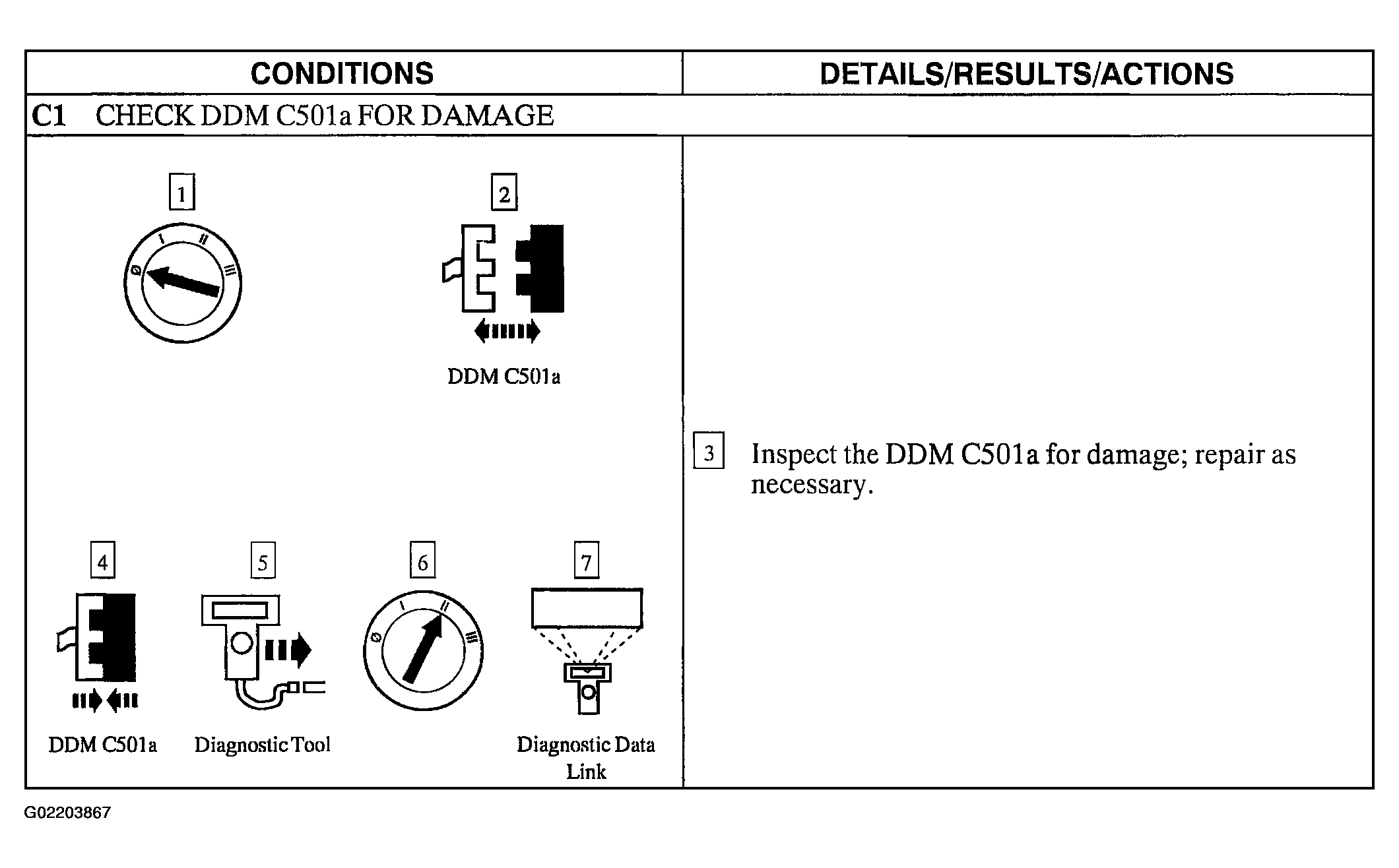

Fig 1: Pinpoint Test C: Module Does Not Respond To Diagnostic Tool - Driver Door Module (C1)

Courtesy of FORD MOTOR CO.

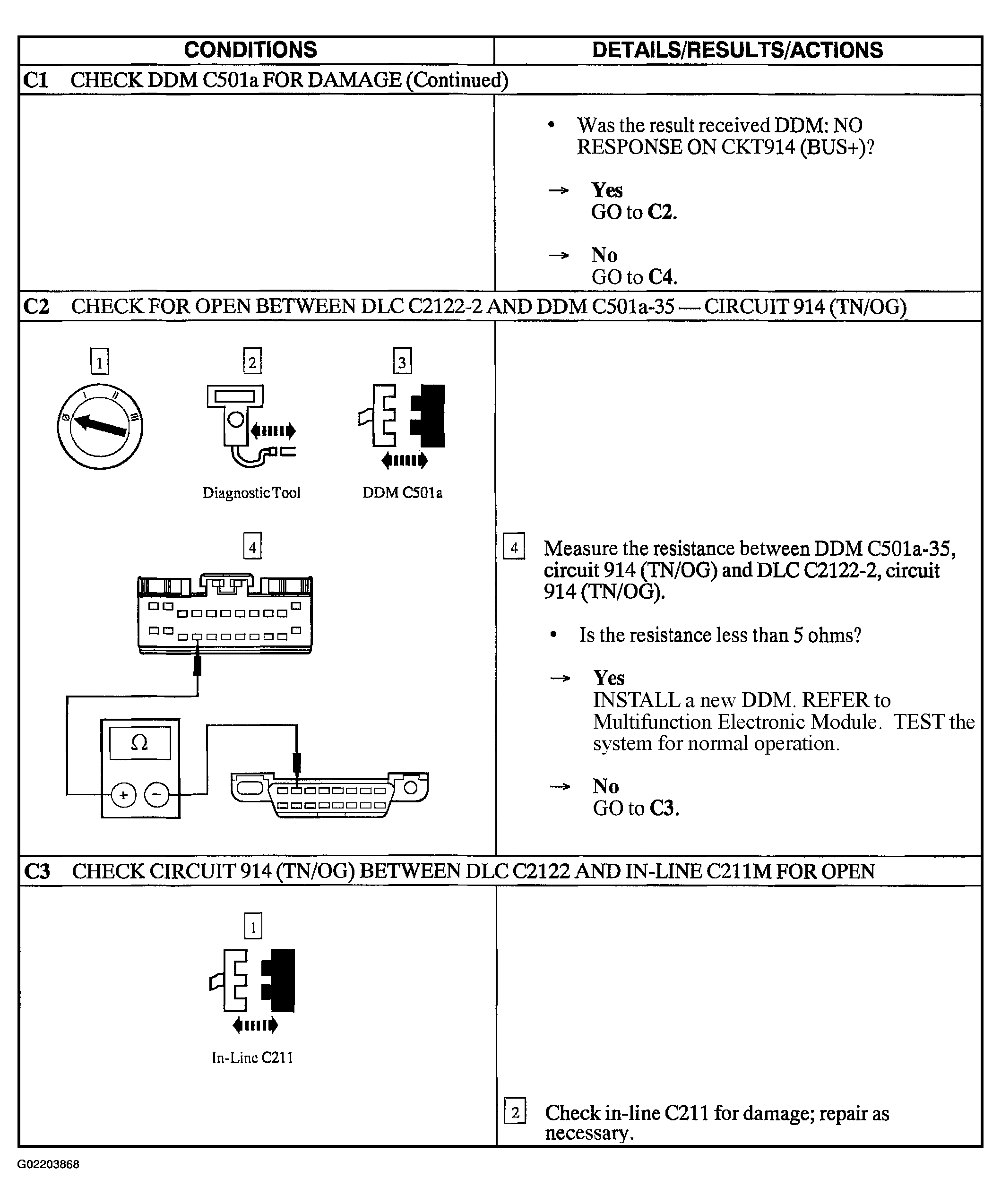

Fig 2: Pinpoint Test C: Module Does Not Respond To Diagnostic Tool - Driver Door Module (C1 Cont.-C3)

Courtesy of FORD MOTOR CO.

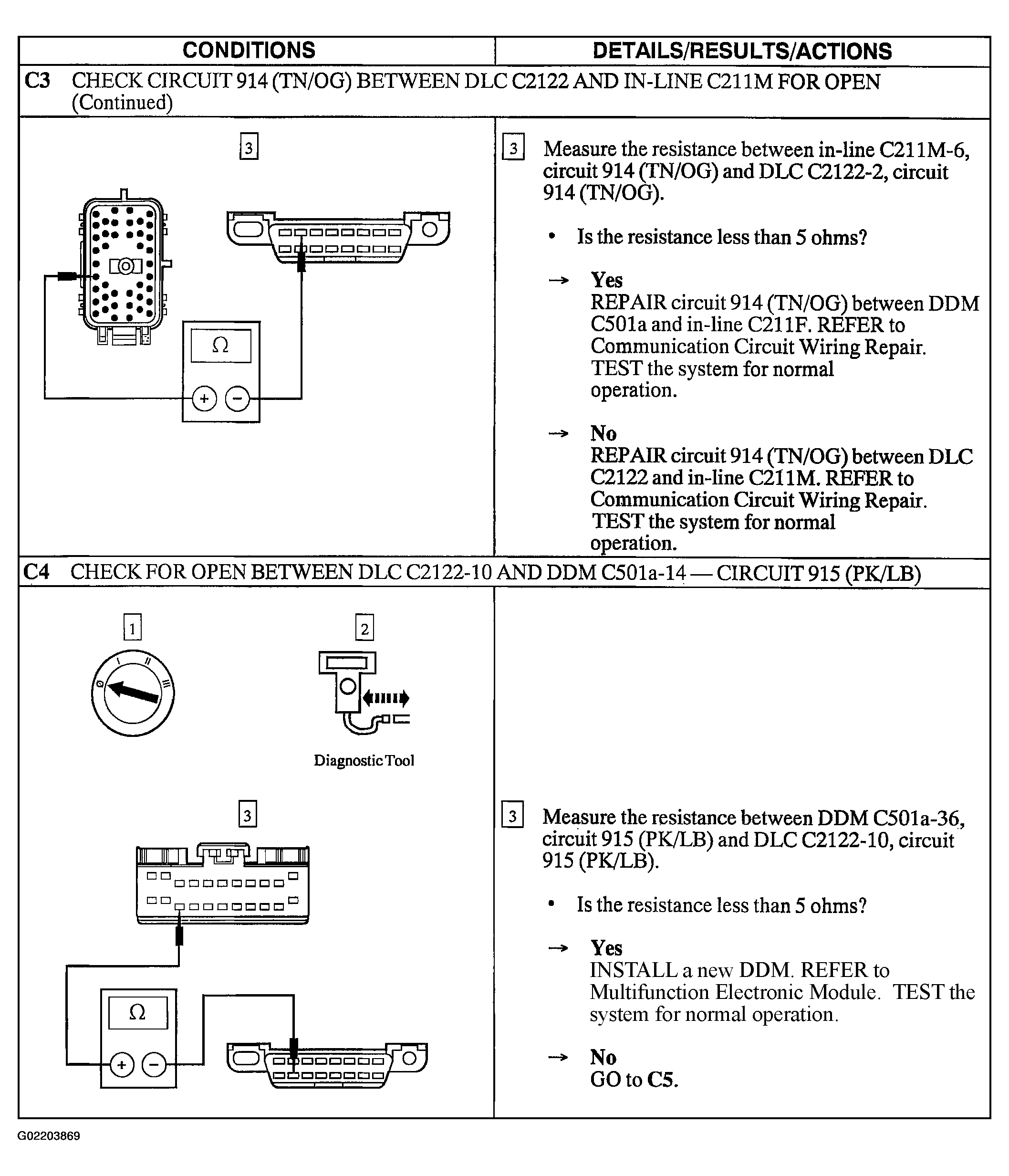

Fig 3: Pinpoint Test C: Module Does Not Respond To Diagnostic Tool - Driver Door Module (C3-C4)

Courtesy of FORD MOTOR CO.

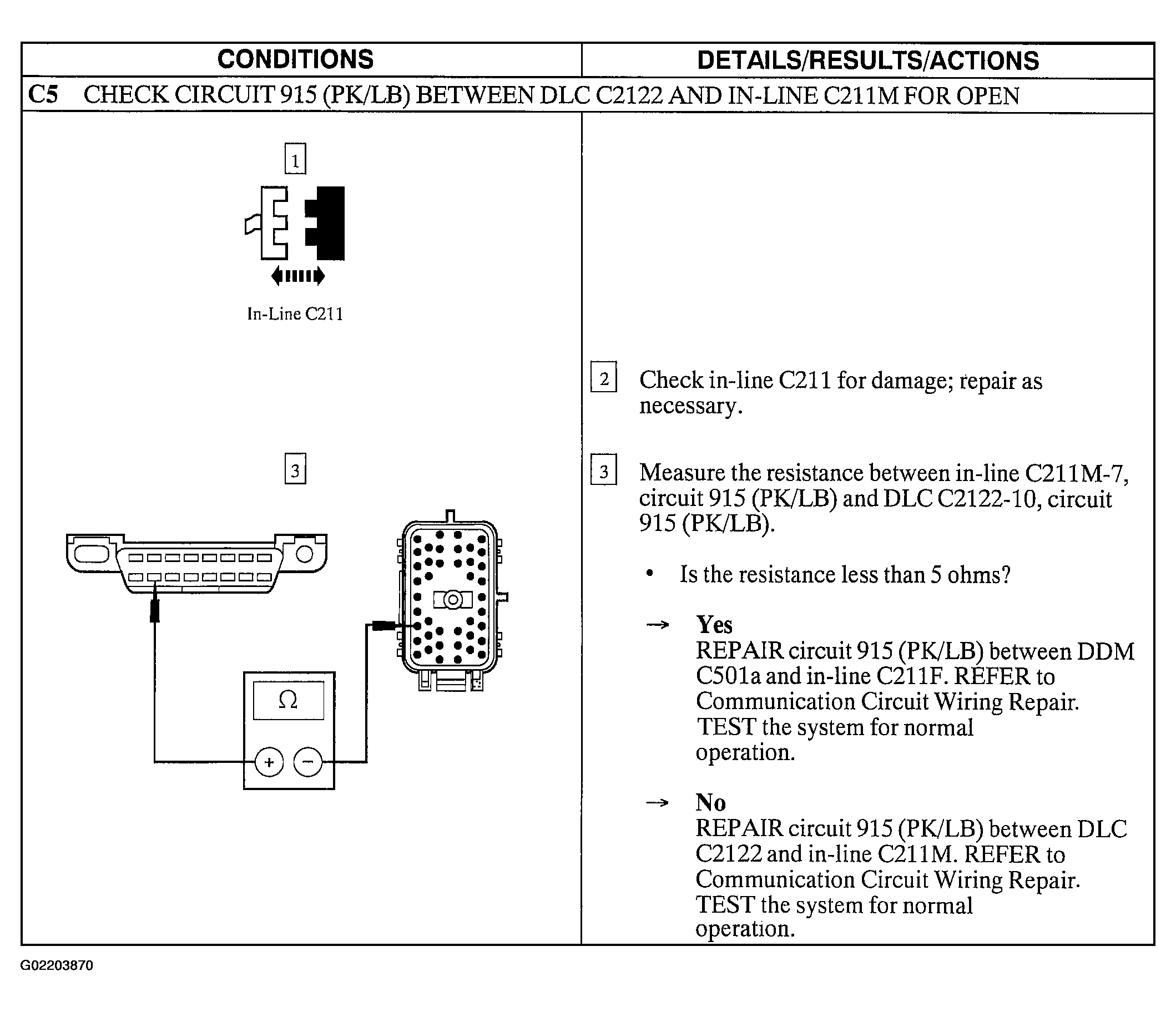

Fig 4: Pinpoint Test C: Module Does Not Respond To Diagnostic Tool - Driver Door Module (C5)

Courtesy of FORD MOTOR CO.
