Connecting Rod-Bend

  1. Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer. Verify the bend measurement is within specification.
    • See SPECIFICATIONS .
    • If out of specification, install new components as necessary. See PISTON for the procedure.

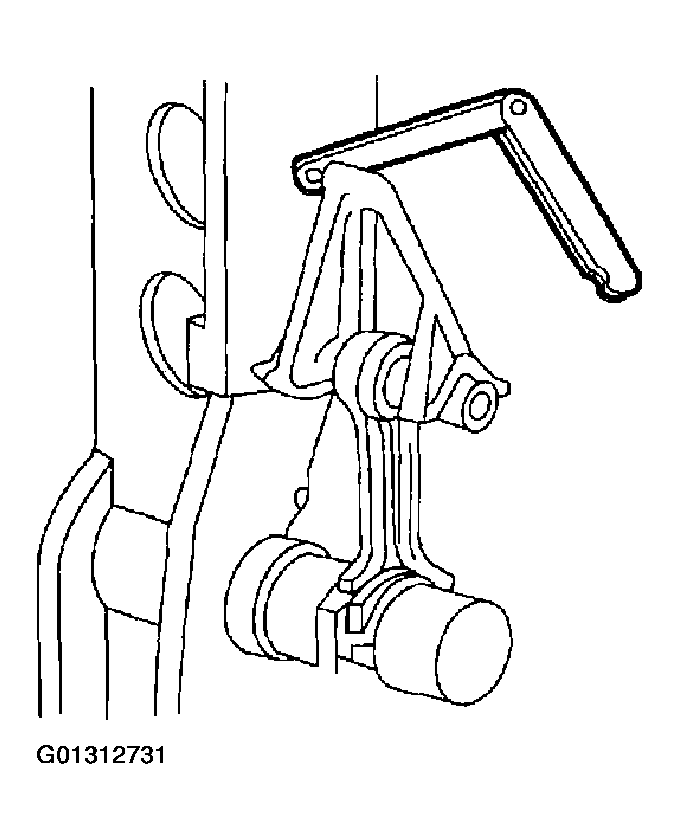

      Fig 1: Checking Connecting Rod For Bend
      G01312731Courtesy of FORD MOTOR CO.
