Window Regulator-Rear Door, Power: Removal

  1. Remove the WINDOW GLASS-Rear Door .
  2. Remove the nuts.

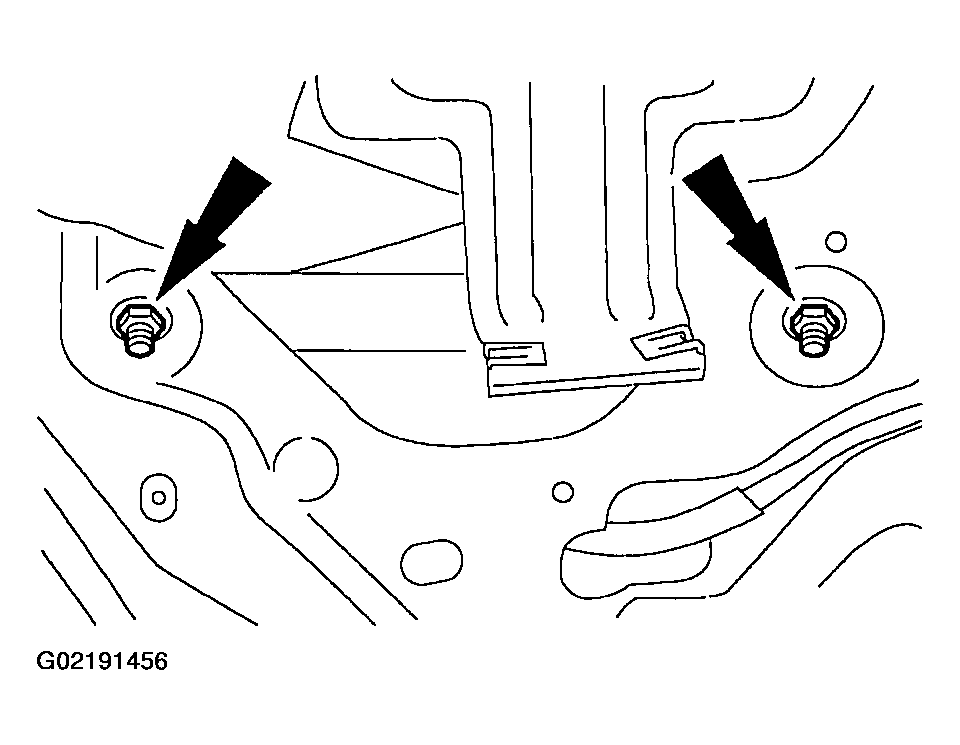

    Fig 1: Removing Nuts
    G02191456Courtesy of FORD MOTOR CO.
  3. Disconnect the connector.

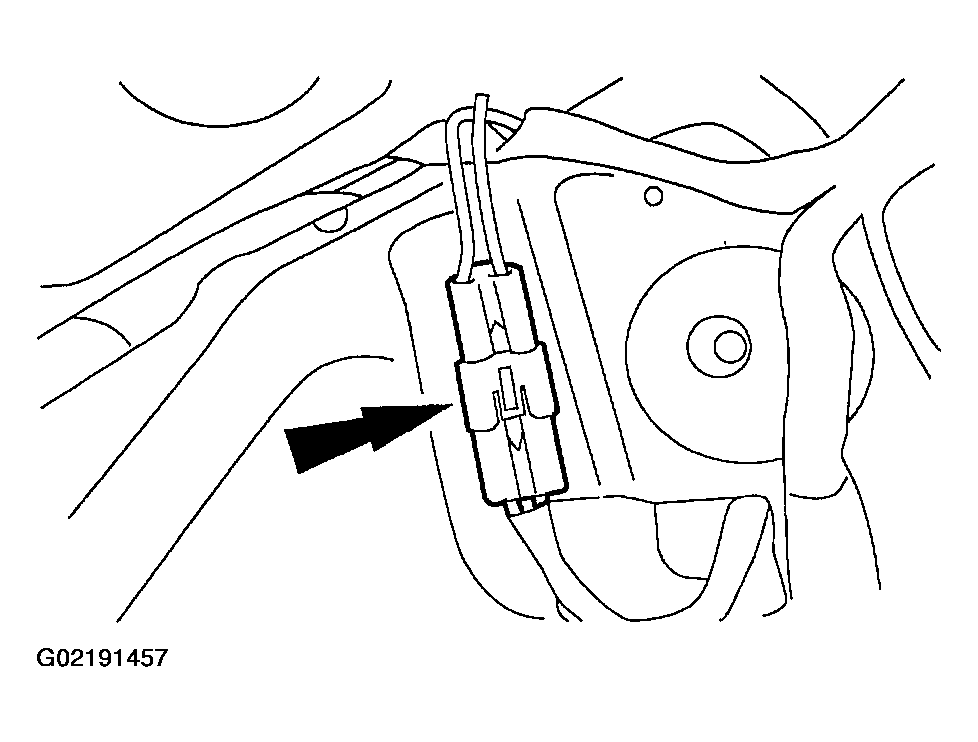

    Fig 2: Disconnecting Connector
    G02191457Courtesy of FORD MOTOR CO.
  4. Remove the rivets and remove the window regulator.

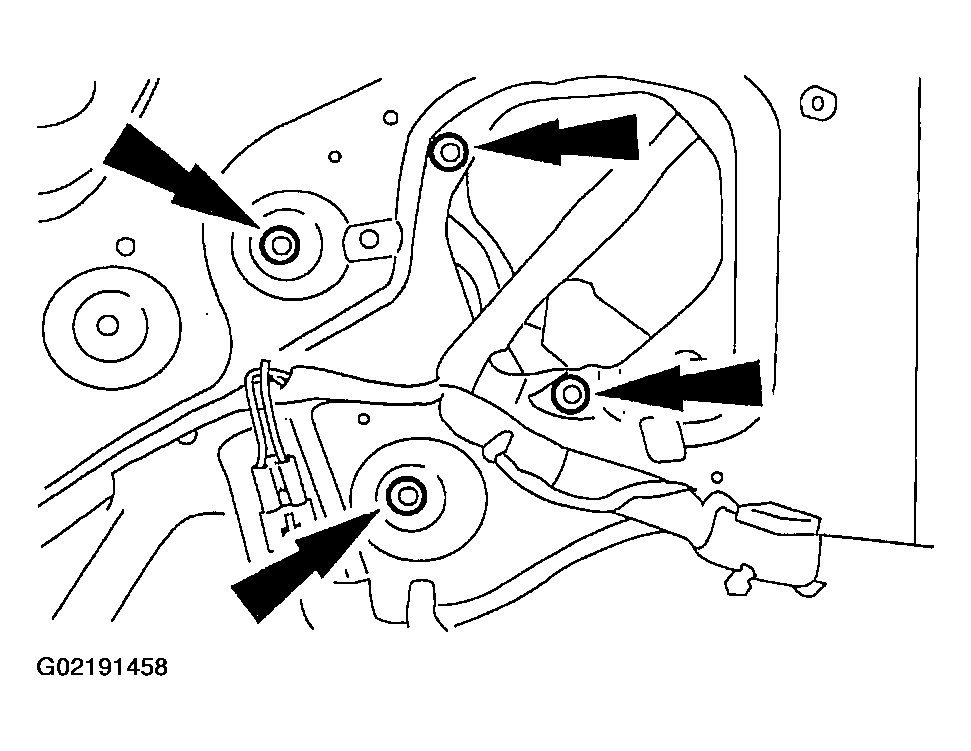

    Fig 3: Removing Rivets
    G02191458Courtesy of FORD MOTOR CO.
