Seat Module-Power Lumbar Assembly: Installation
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the removal procedure.
- Install the lumbar assembly.

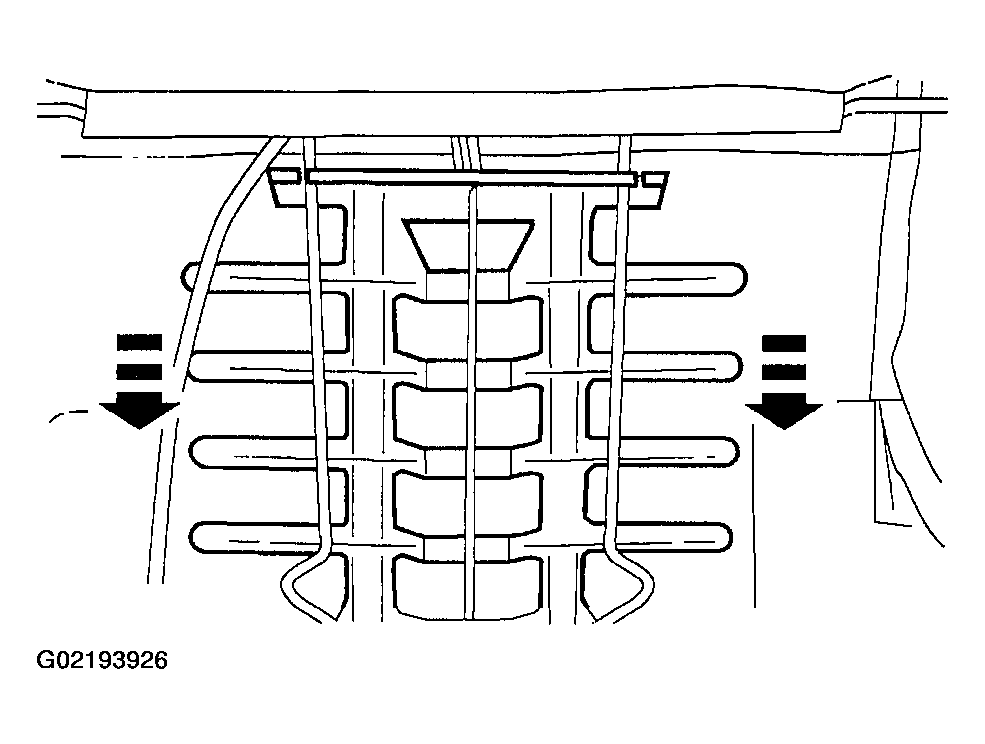

- Attach the lumbar assembly to the bottom of the seat backrest frame.

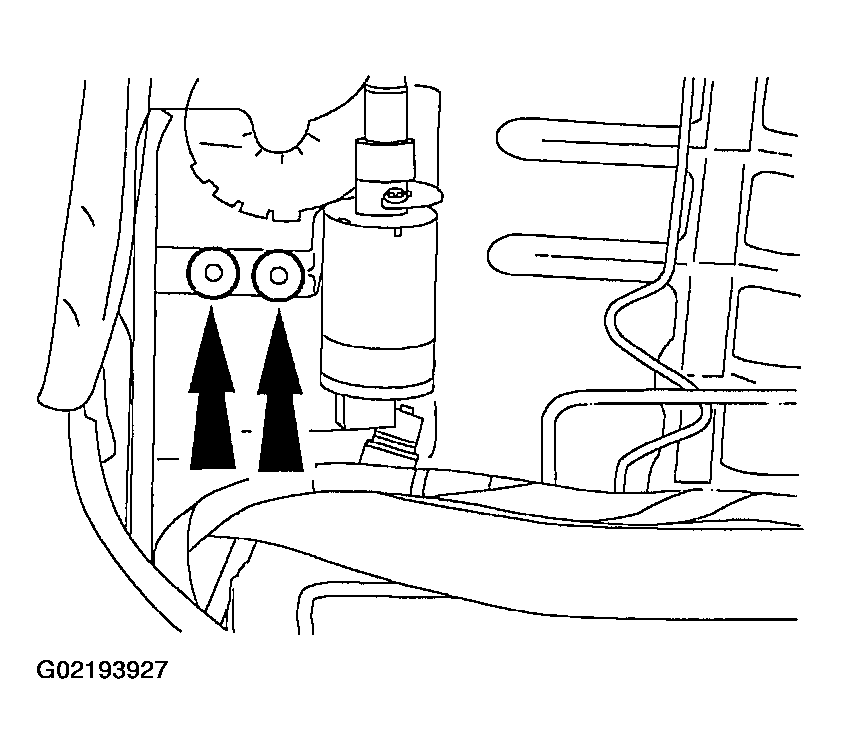

- Install the lumbar assembly and attach with new rivets.
- Connect the connector at the wiring harness (14A699).
- Connect the J-retainers.
- Install the seat backrest cover panel.
- Restore the vehicle to operating condition.
- Install the affected seat. For additional information, refer to FRONT SEAT .
- Reactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION & REACTIVATION .
- With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION & REACTIVATION .
- Check the active restraint system for correct operation. For additional information, refer to SYSTEM OPERATION CHECK .
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the seat removal and installation procedure.WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes, and instructions in the supplemental restraint system deactivation/reactivation procedure.WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
