Multi-Function Switch

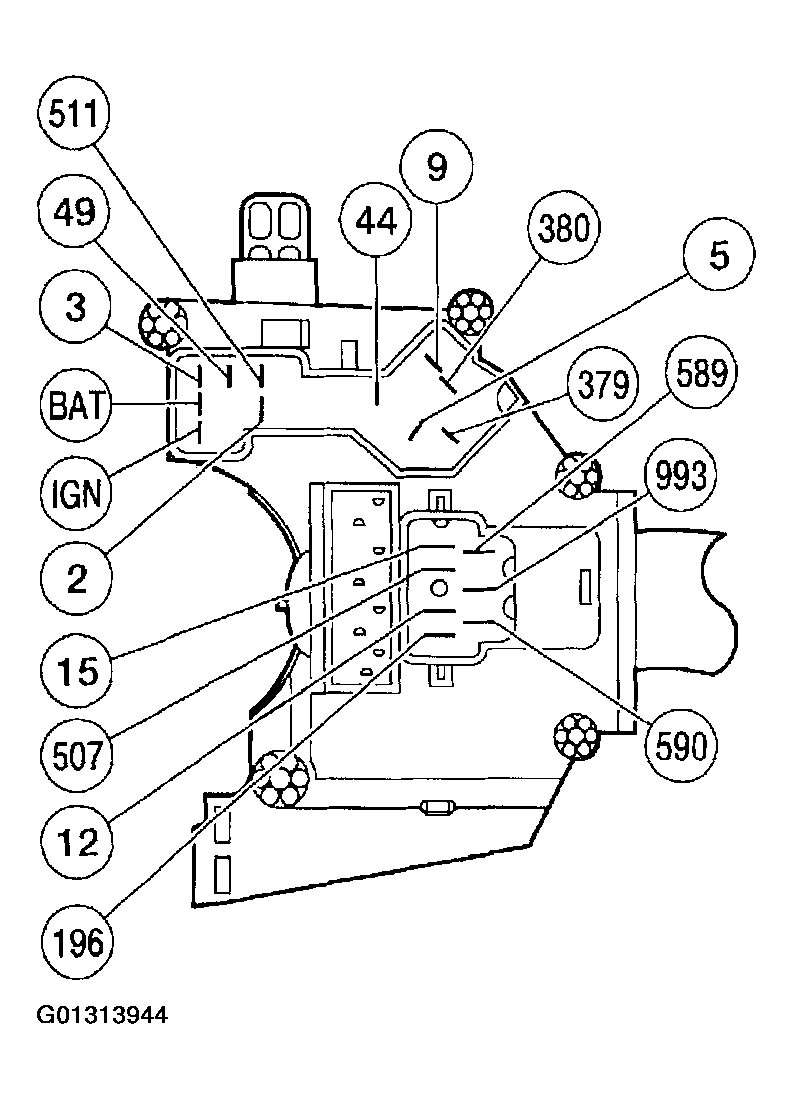

Fig 1: Multi-Function Switch Terminals Identification
G01313944Courtesy of FORD MOTOR CO.
  1. Measure the resistance between the multi-function switch terminals:

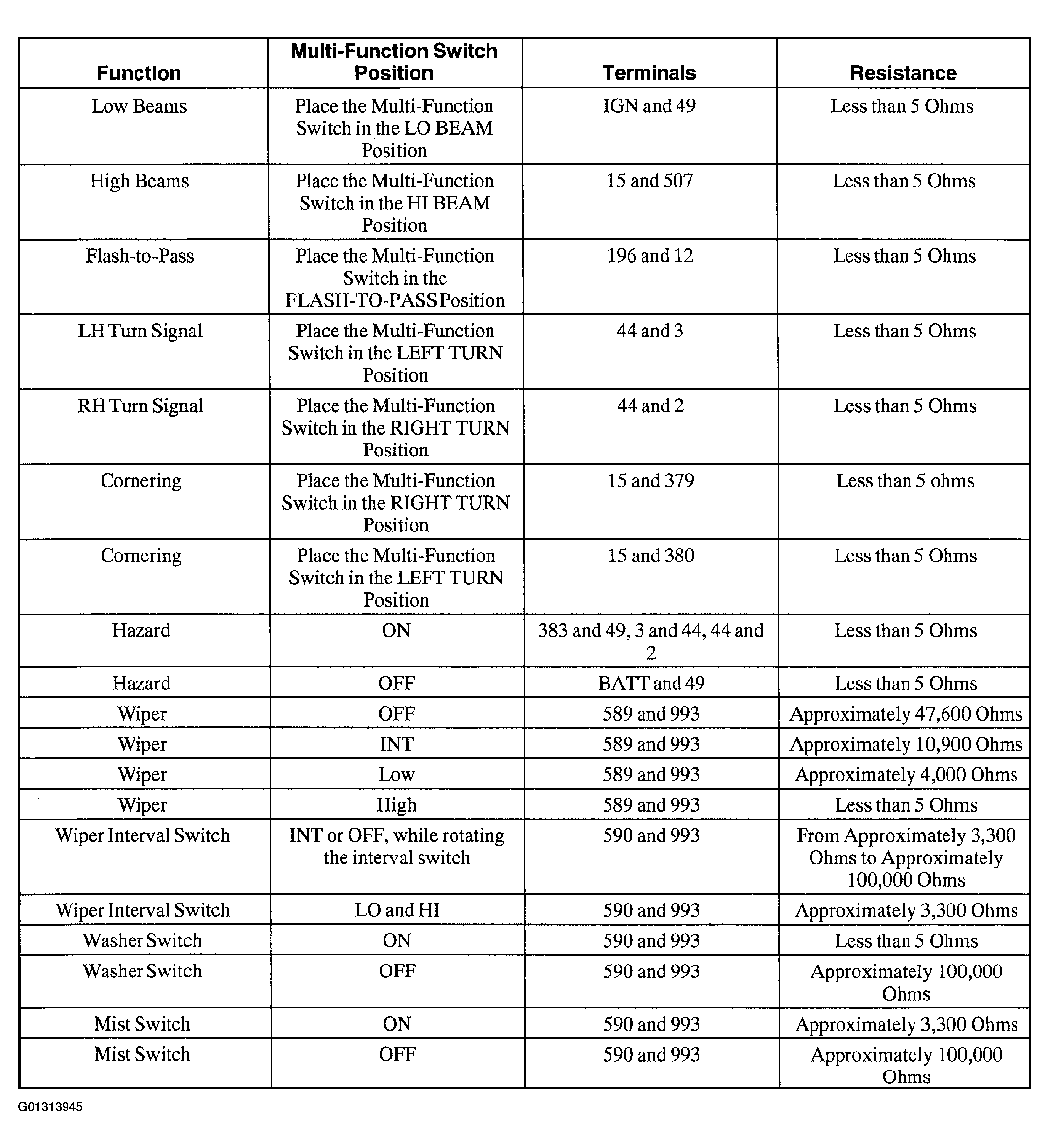

    Fig 2: Multi-Function Switch Diagnostic Chart
    G01313945Courtesy of FORD MOTOR CO.

    If the resistances are not as specified, replace the multi-function switch; REFER to MULTIFUNCTION SWITCH . If the resistances are as specified the multi-function switch is OK
