Automatic Transaxle/Transmission
>>
Disassembly And Assembly Of Subassemblies
>>
Pump Assembly
>>
Pump Assembly, Disassembled View
Pump Assembly, Disassembled View

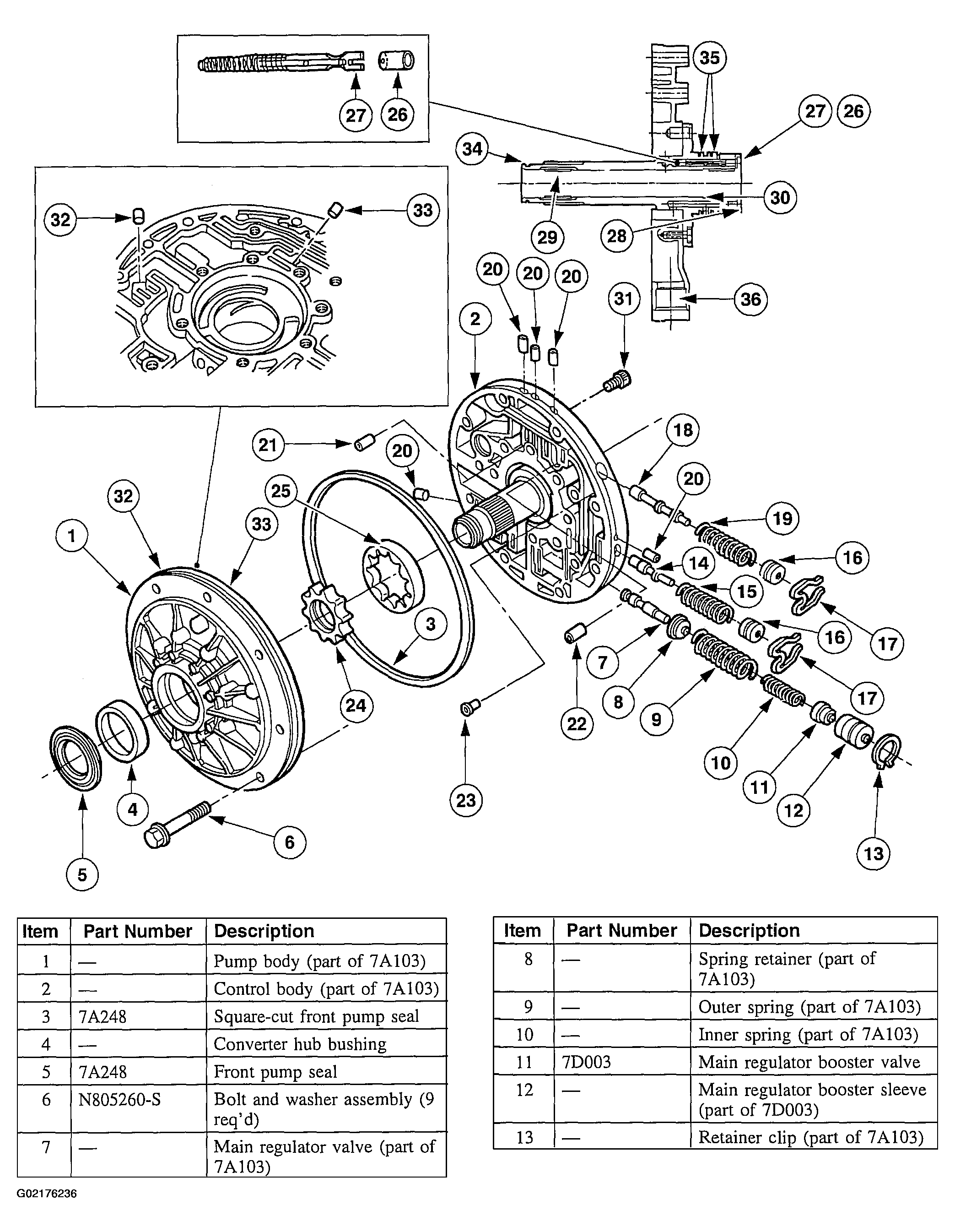

Fig 1: Disassembled View Of Pump Assembly And Components Description
Courtesy of FORD MOTOR CO.

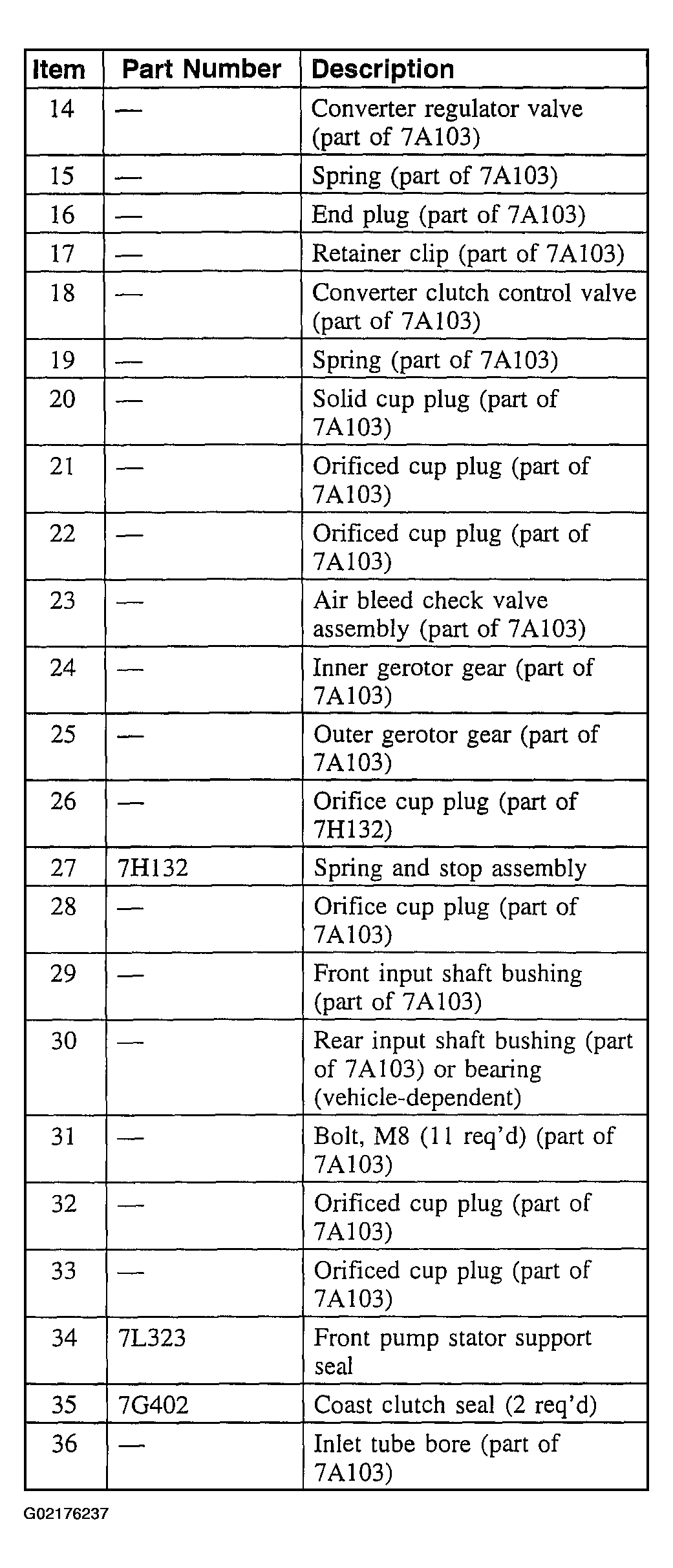

Fig 2: Pump Assembly Components Description
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
