Intermediate/Overdrive Cylinder Assembly, Disassembled View

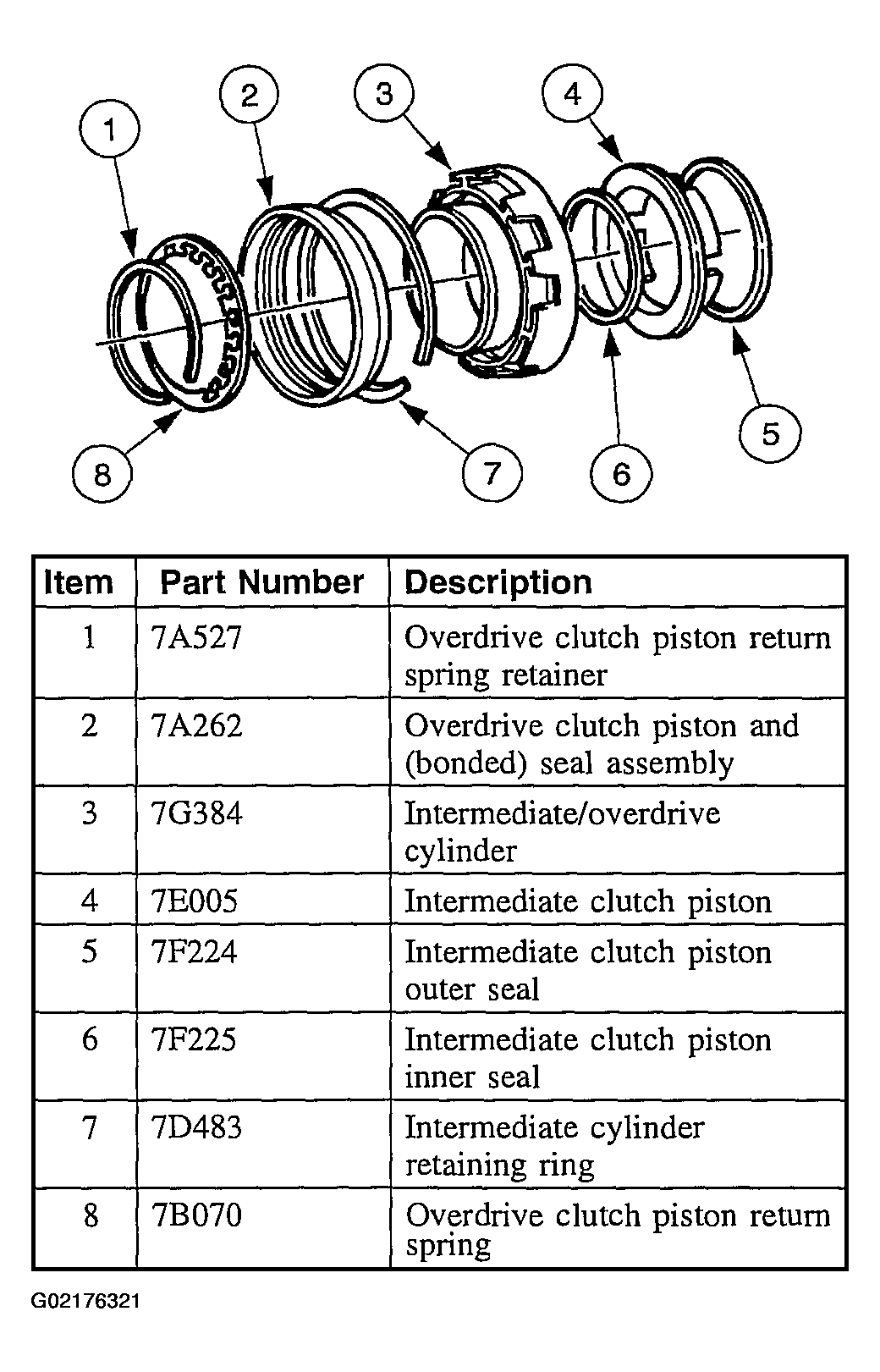

Fig 1: Identifying Components Of Intermediate/Overdrive Cylinder Assembly

G02176321

Courtesy of FORD MOTOR CO.
