Torque Specifications

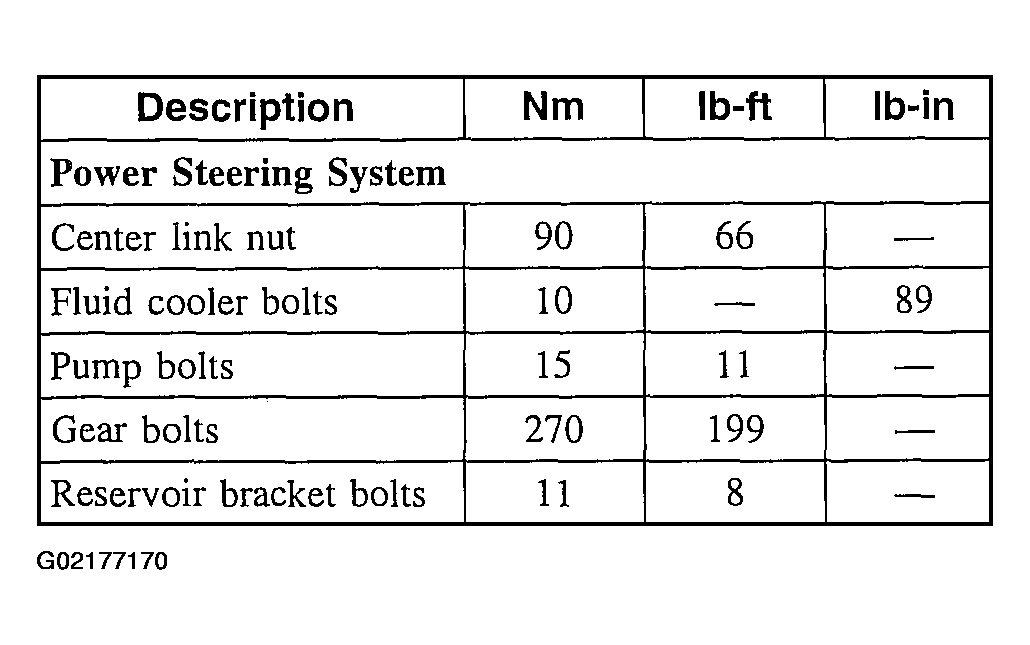

Fig 1: Steering System Torque Specifications Chart (1 Of 4)
G02177170Courtesy of FORD MOTOR CO.

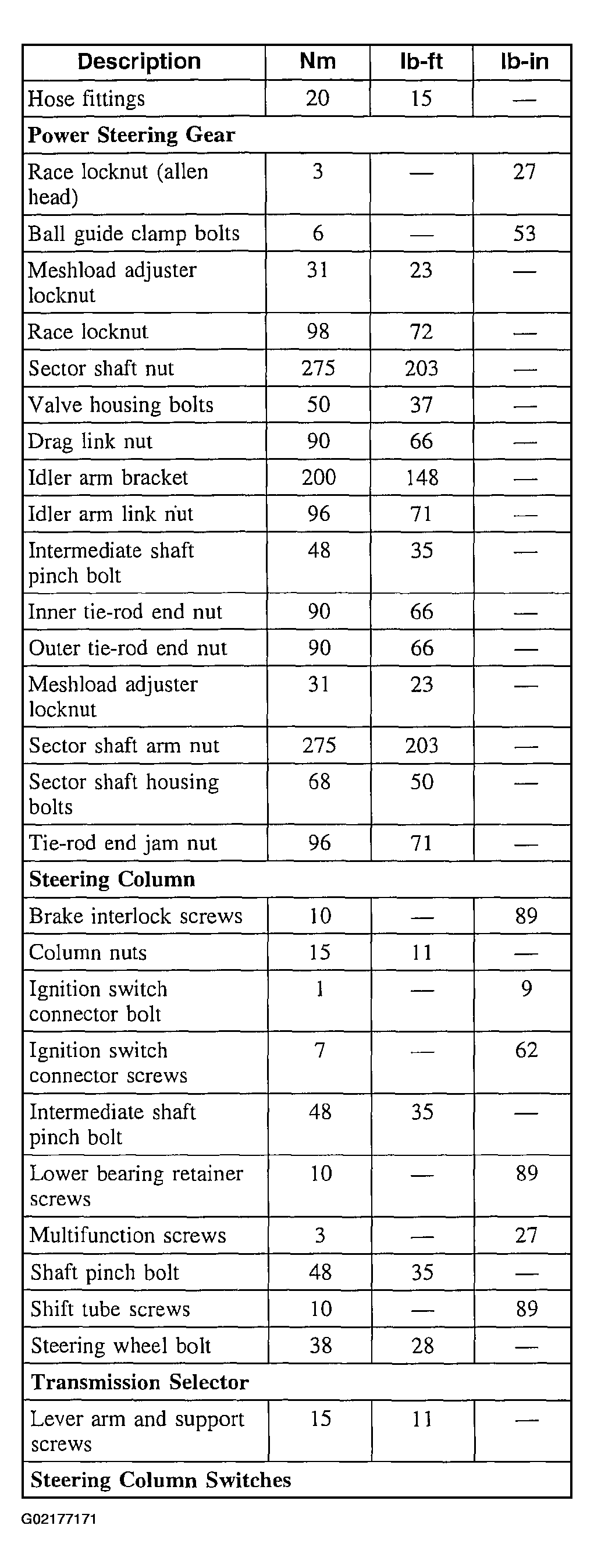

Fig 2: Steering System Torque Specifications Chart (2 Of 4)
G02177171Courtesy of FORD MOTOR CO.
Fig 3: Steering System Torque Specifications Chart (3 Of 4)
G02177172Courtesy of FORD MOTOR CO.
Fig 4: Steering System Torque Specifications Chart (4 Of 4)
G02177173Courtesy of FORD MOTOR CO.
