In-Vehicle Repair: Flywheel: Installation

  1. Position the flexplate and install the bolts in the sequence shown.

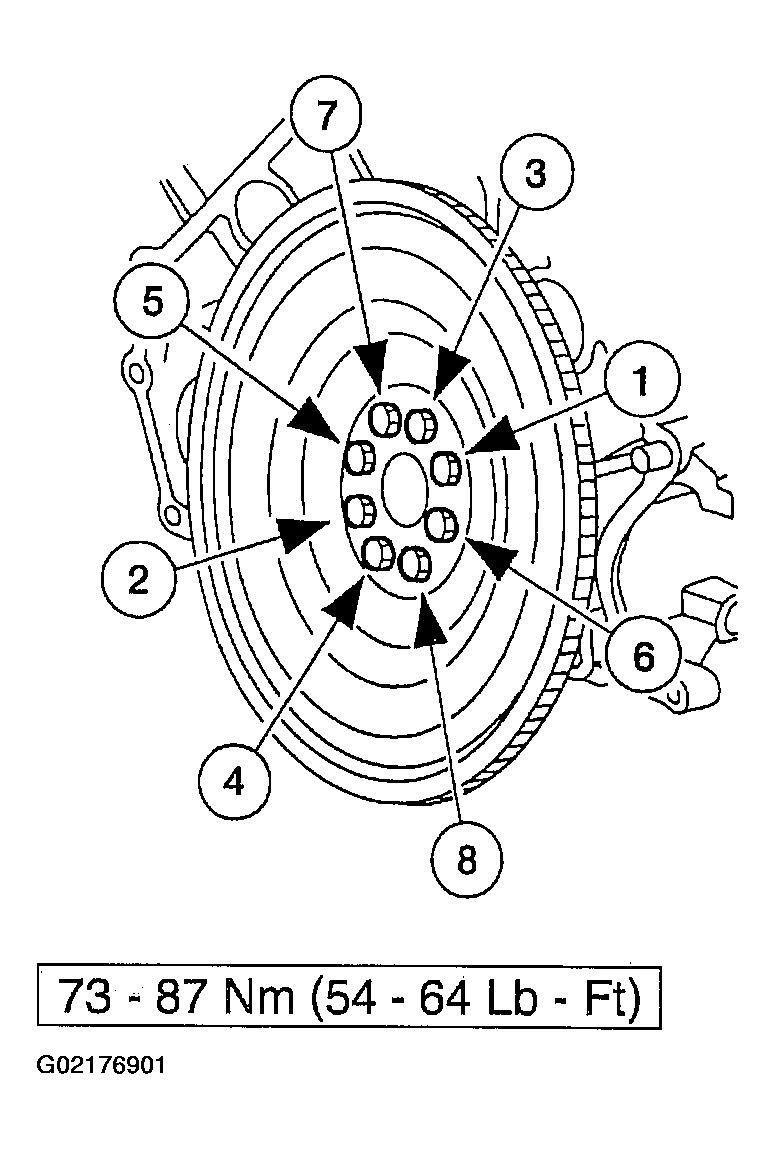

    Fig 1: Identifying Flexplate Bolts Installing Sequence
    G02176901Courtesy of FORD MOTOR CO.
  2. Install the transmission. Refer to AUTOMATIC TRANSAXLE/TRANSMISSION - 4R100 .
