Hydraulic Control Unit (HCU): Notes

CAUTION: Electronic modules are sensitive to electrical charges. The Anti-Lock Control Module can be damaged if exposed to these charges.

Disconnect the battery ground cable.
Remove the components in the order indicated in the following illustration and table.
Install in the reverse order of removal.

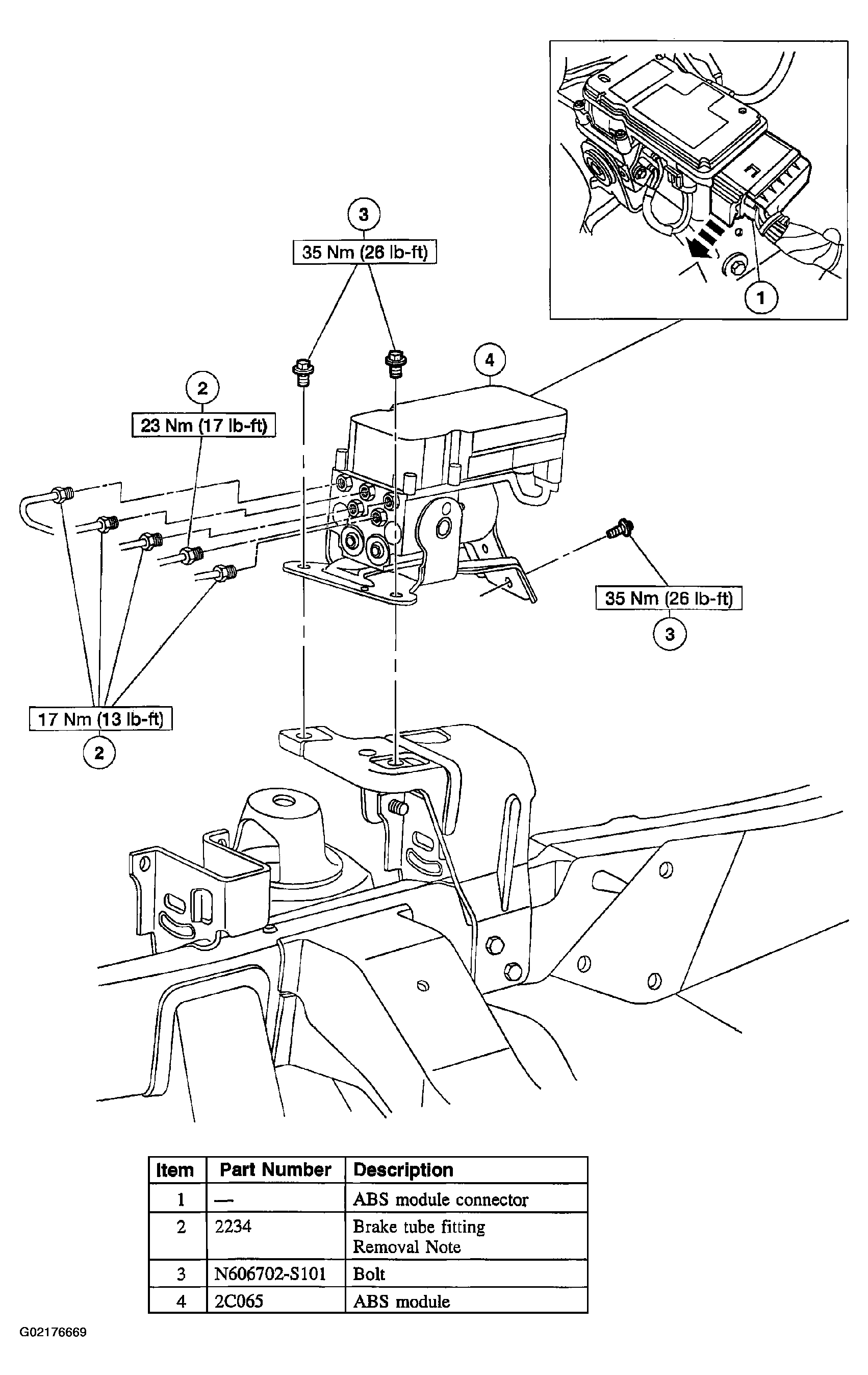

Fig 1: Removing Sequence Of Hydraulic Control Unit
Courtesy of FORD MOTOR CO.
Bleed the hydraulic brake system. Refer to BLEEDING BRAKE SYSTEM .
