Symptom Chart
Symptom Chart
NOTE:
Refer to ANTI-LOCK BRAKES for connector numbers stated in the Pinpoint Tests.

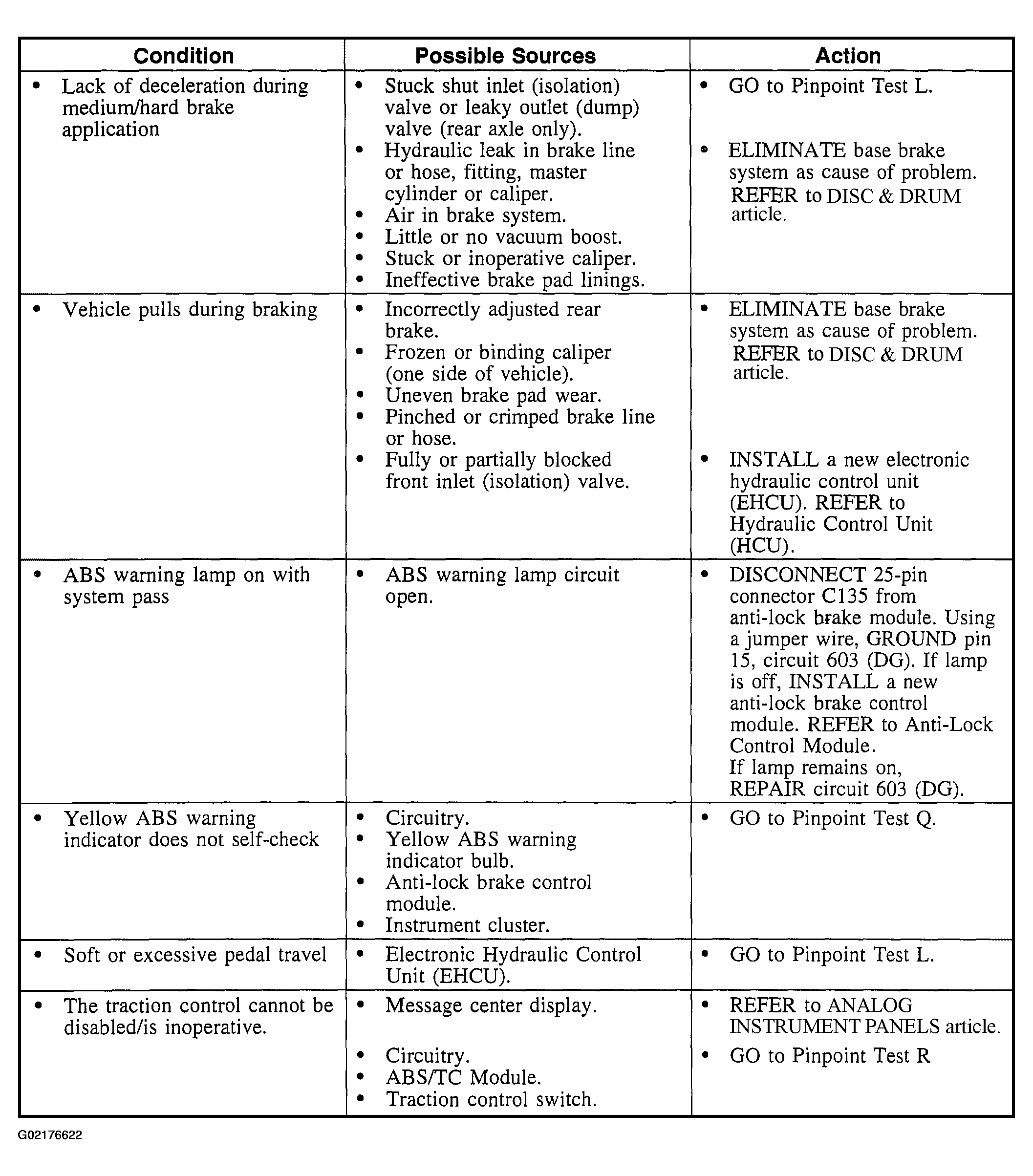

Fig 1: Anti-Lock Control System Trouble Symptom Chart (1 Of 3)
Courtesy of FORD MOTOR CO.

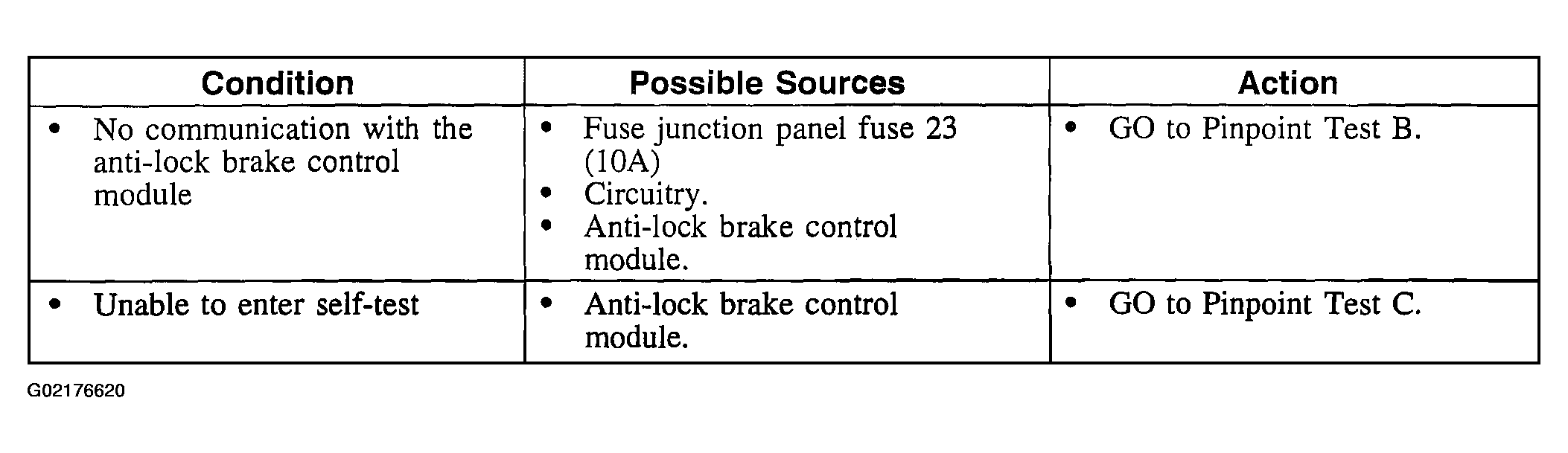

Fig 2: Anti-Lock Control System Trouble Symptom Chart (2 Of 3)
Courtesy of FORD MOTOR CO.

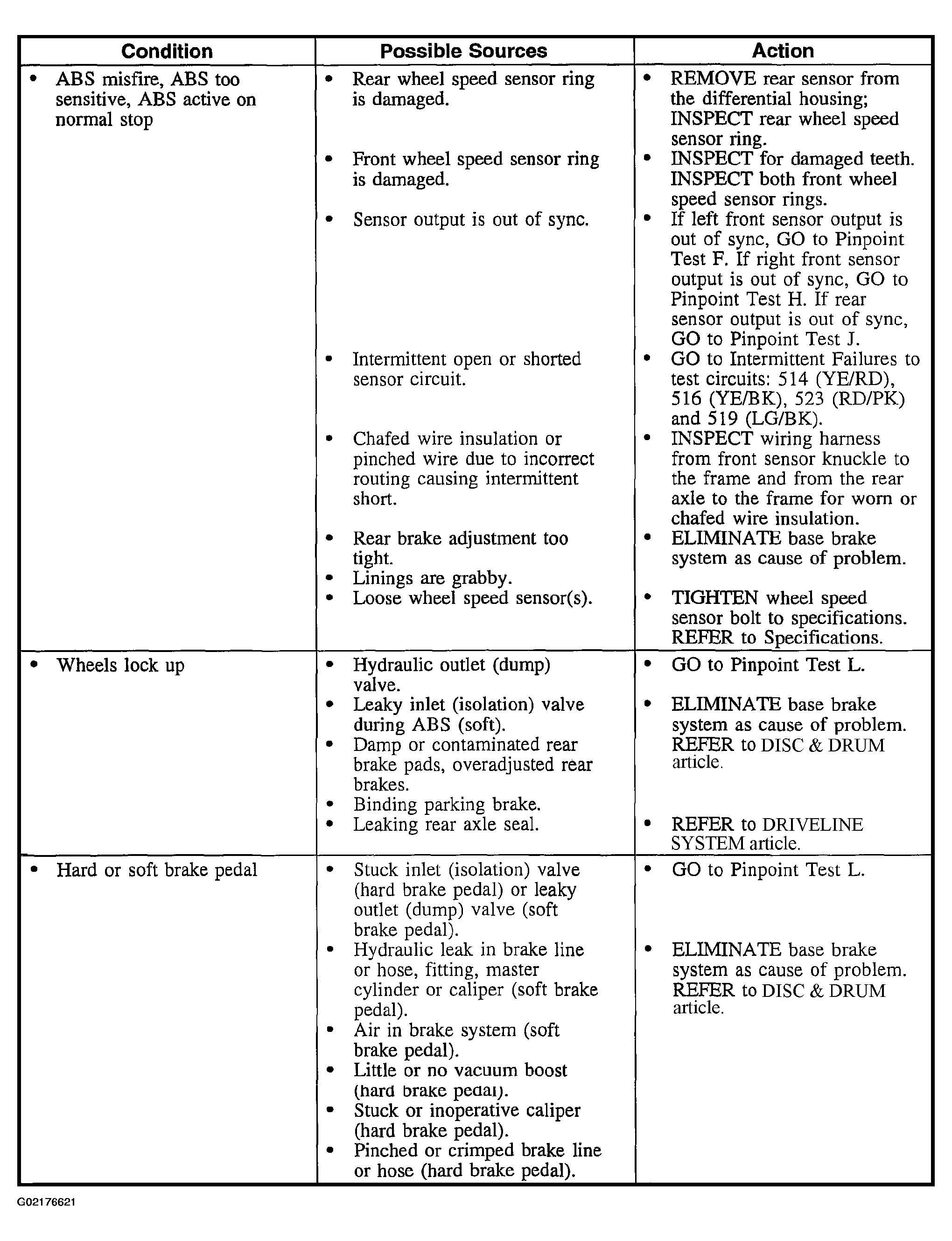

Fig 3: Anti-Lock Control System Trouble Symptom Chart (3 Of 3)
Courtesy of FORD MOTOR CO.
