Transfer Case Exploded View

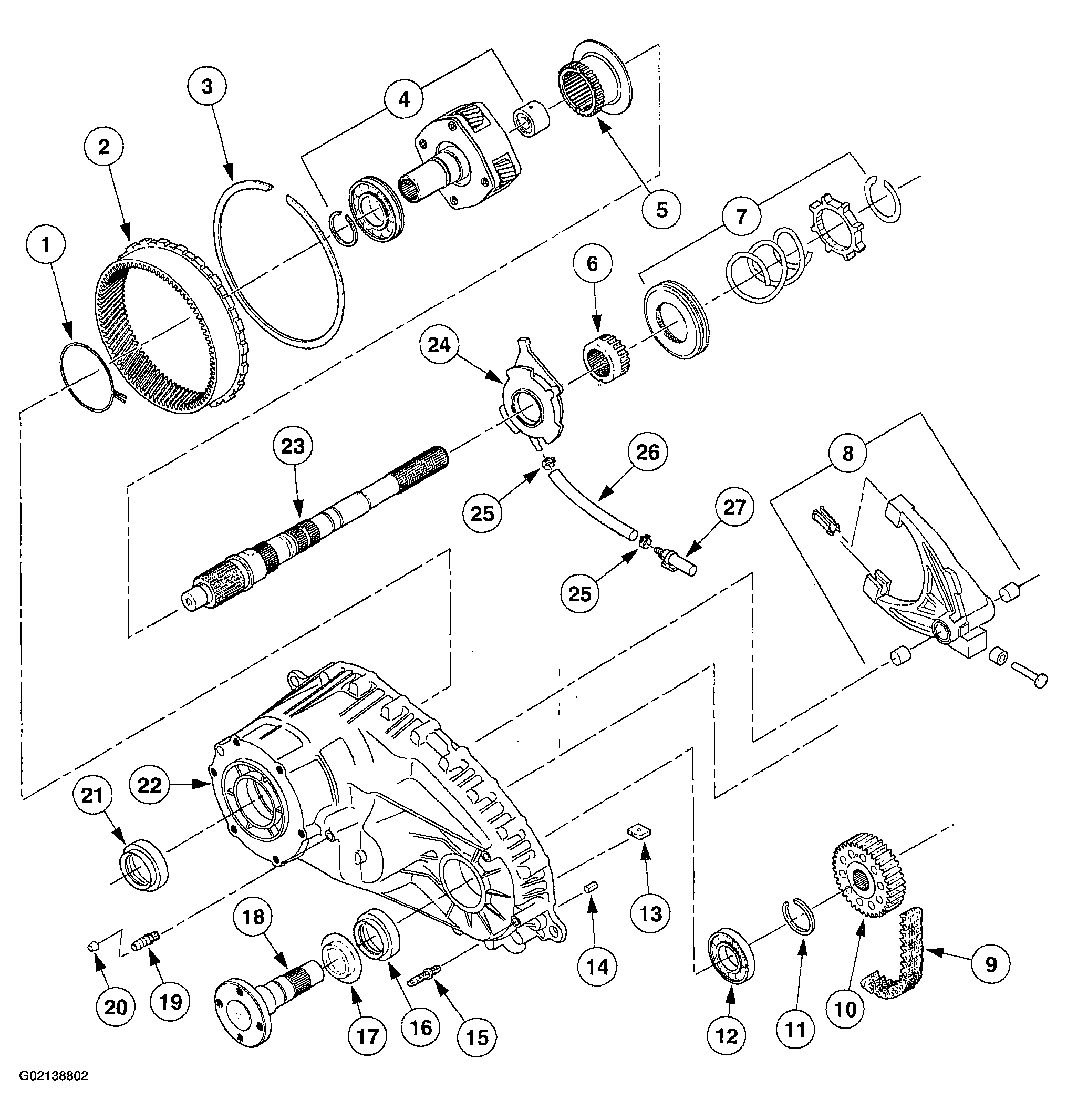

Fig 1: Transfer Case - Exploded View (1 Of 2)

G02138802

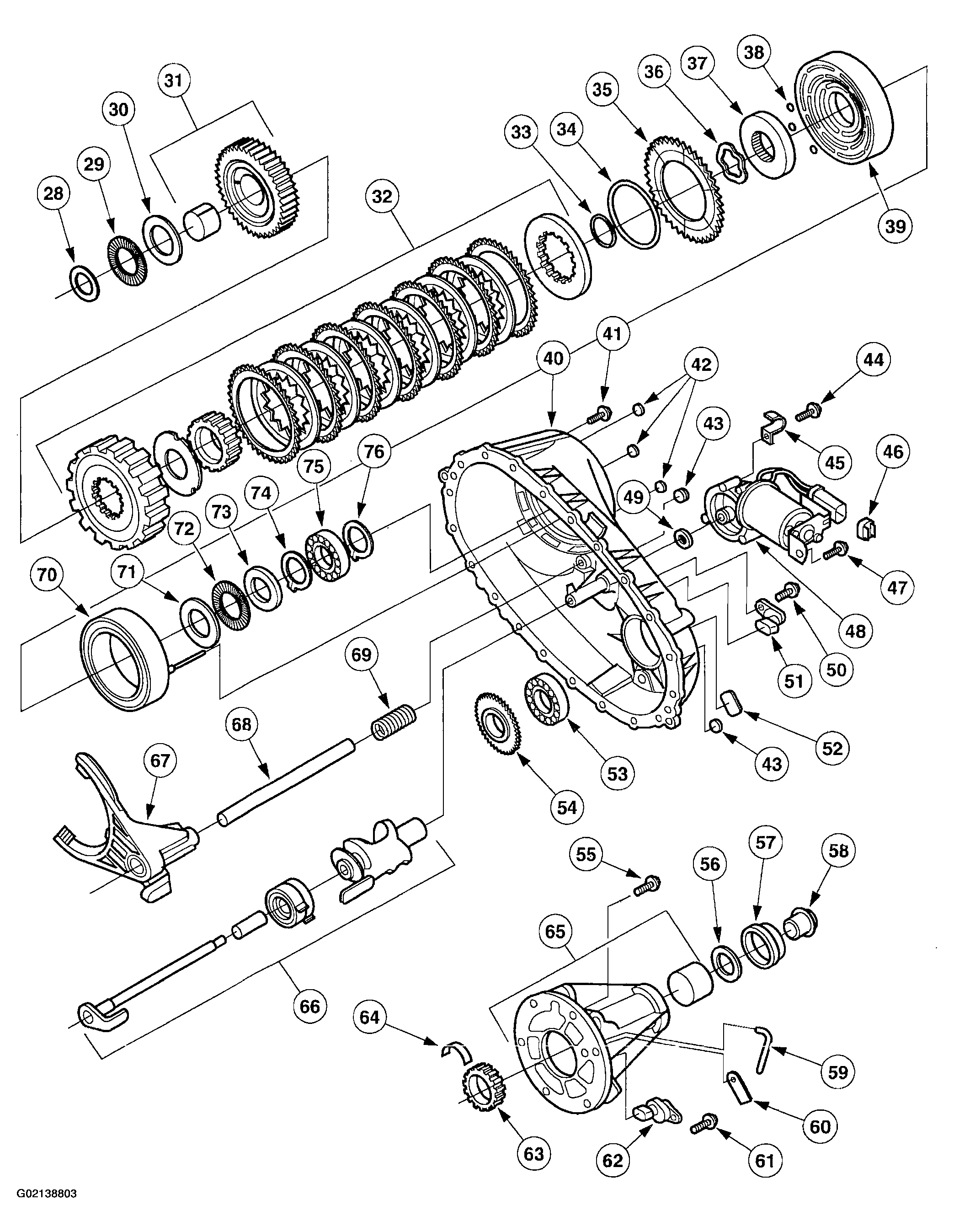

Fig 2: Transfer Case - Exploded View (2 Of 2)

G02138803

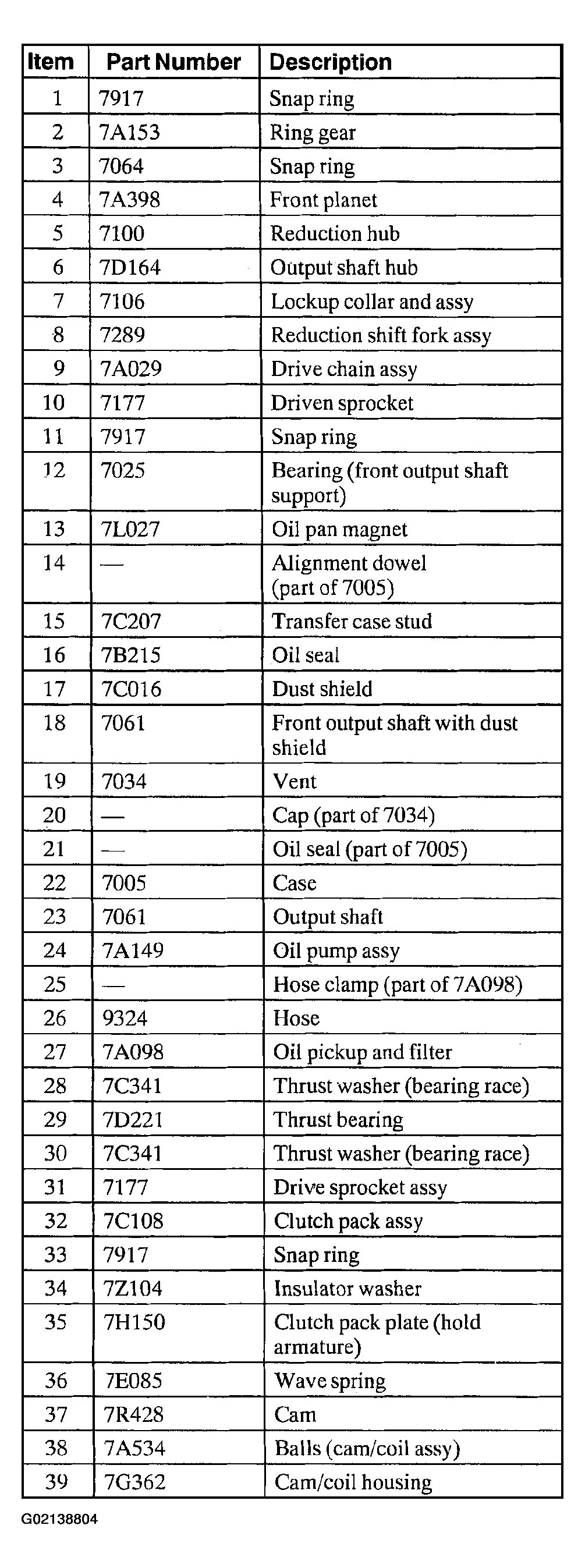

Fig 3: Transfer Case - Legend (1 Of 2)

G02138804

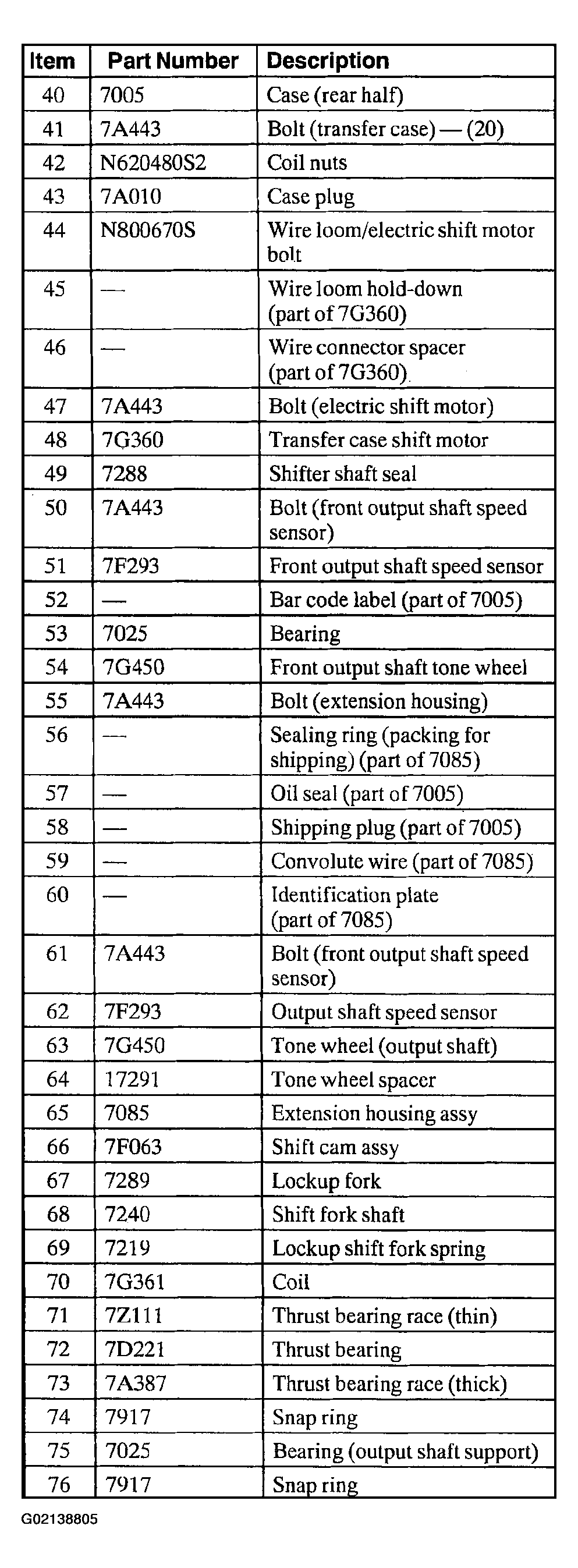

Fig 4: Transfer Case - Legend (2 Of 2)

G02138805
