Shift Switch - Shift Range Selector: Removal

  1. Remove the center instrument panel trim panel.

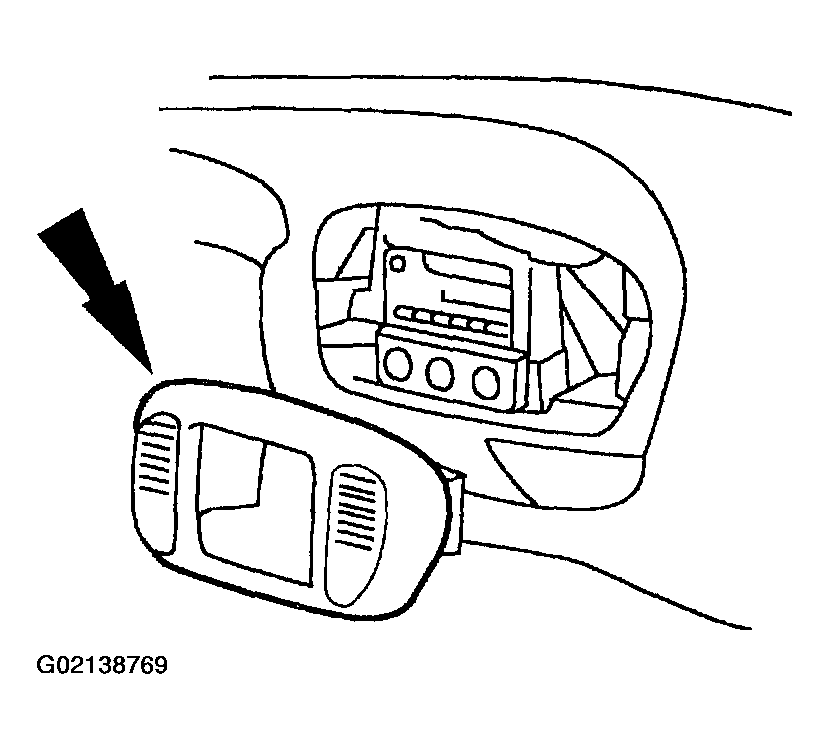

    Fig 1: Removing Center Instrument Panel Trim Panel
    G02138769
  2. Remove the shift range selector switch.
    1. Remove the switch knob.
    2. Disconnect the electrical connector.
    3. Remove the bolts.
    4. Remove the shift range selector switch.

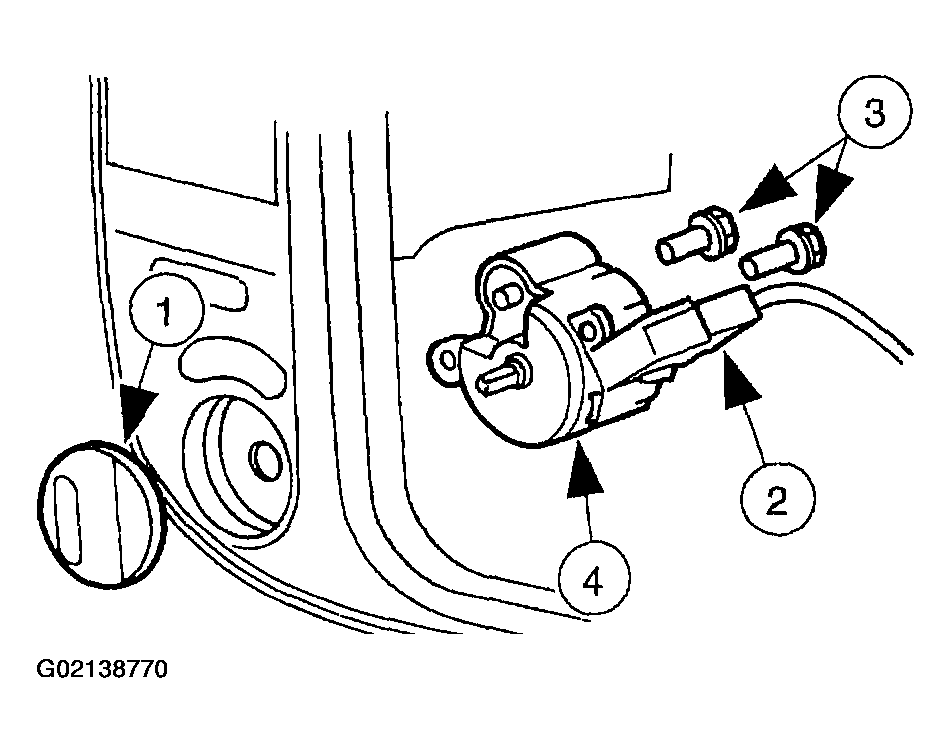

    Fig 2: Removing Shift Range Selector Switch
    G02138770
