Materials Needed

Fig 1: Needed Materials
G02143969
    WARNING: Secure the transmission to the transmission jack with a safety chain. Failure to follow these instructions can result in personal injury.
  1. Raise and position the transmission.
    2. NOTE: Align the flexplate to converter marks made at removal.

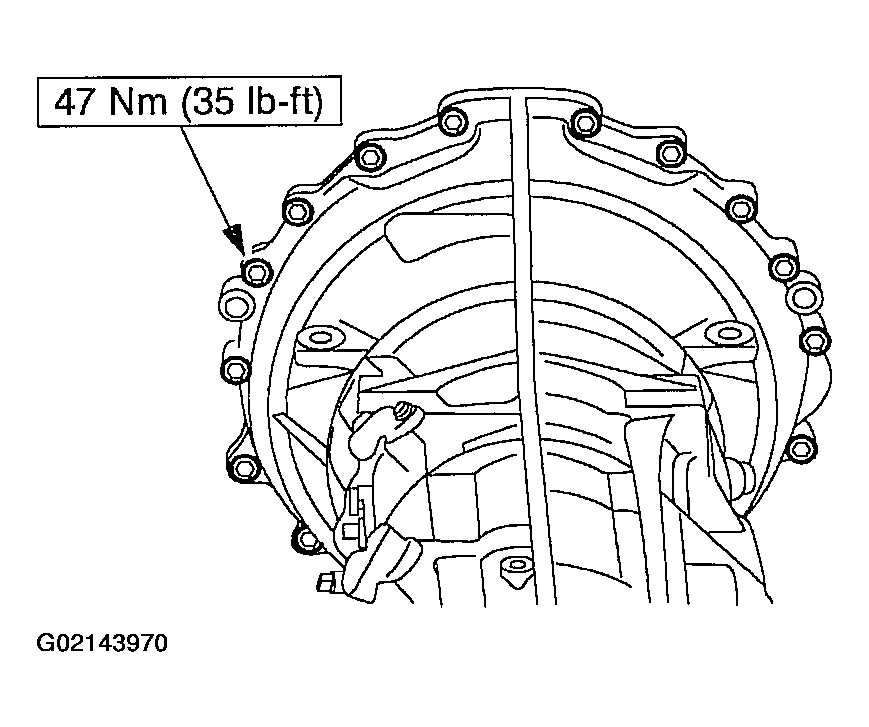

    Fig 2: Tightening Transmission Bell Housing Bolts
    G02143970
  2. Install the bolts.
    3. NOTE: Align the flexplate to converter marks made at removal.

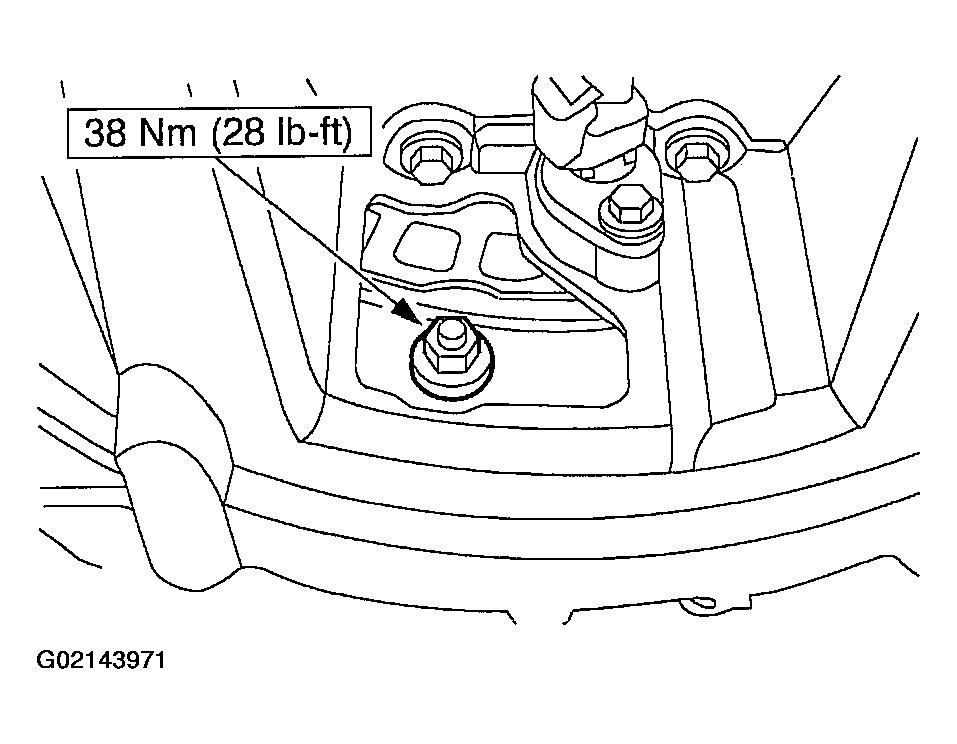

    Fig 3: Tightening Flexplate To Converter Nuts
    G02143971
  3. Align the marks made during removal, and install the nuts.
  4. Install the access cover.

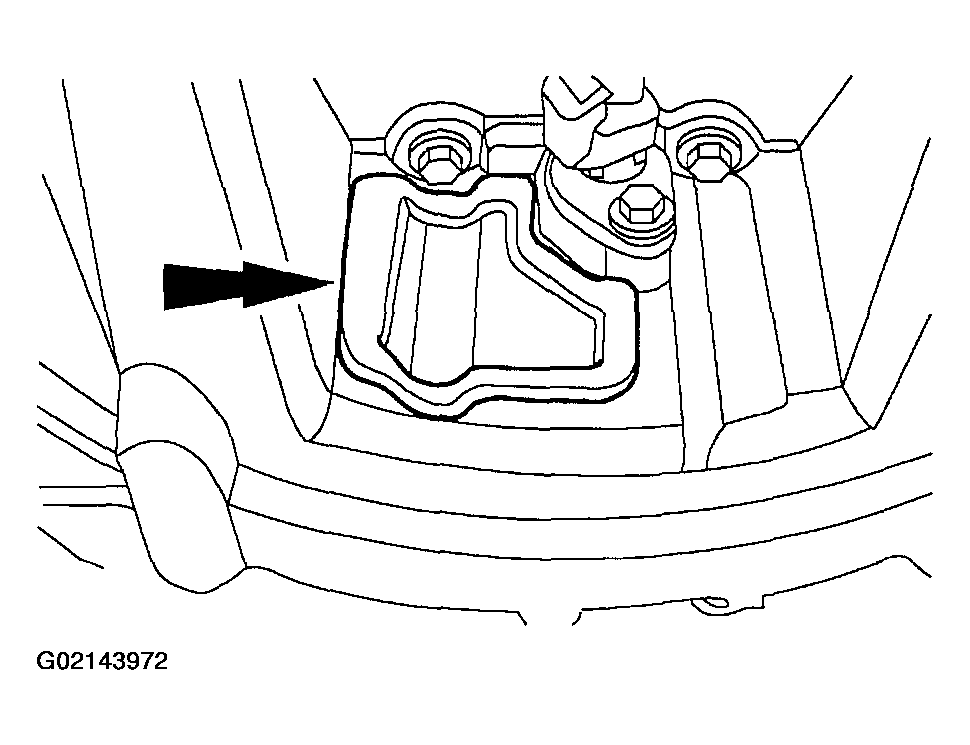

    Fig 4: Identifying Access Cover
    G02143972
  5. On 3.0L engines only, install the starter motor. For additional information, refer to STARTERS .
    6. CAUTION: Use care not to bend or force the cooler tubes otherwise damage to the cooler tubes and the transmission may result.

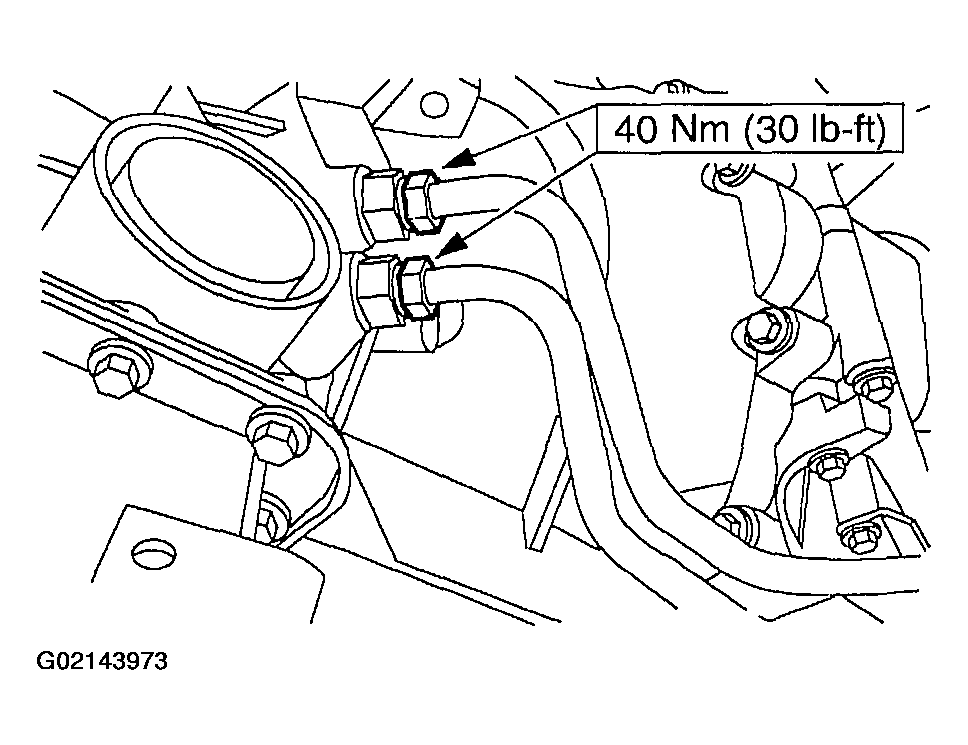

    Fig 5: Tightening Transmission Cooler Tubes
    G02143973
  6. Install the transmission cooler tubes.
    7. NOTE: V6 application shown, V8 application similar. The torque specification for the V8 is 18 N.m (13 lb-ft).

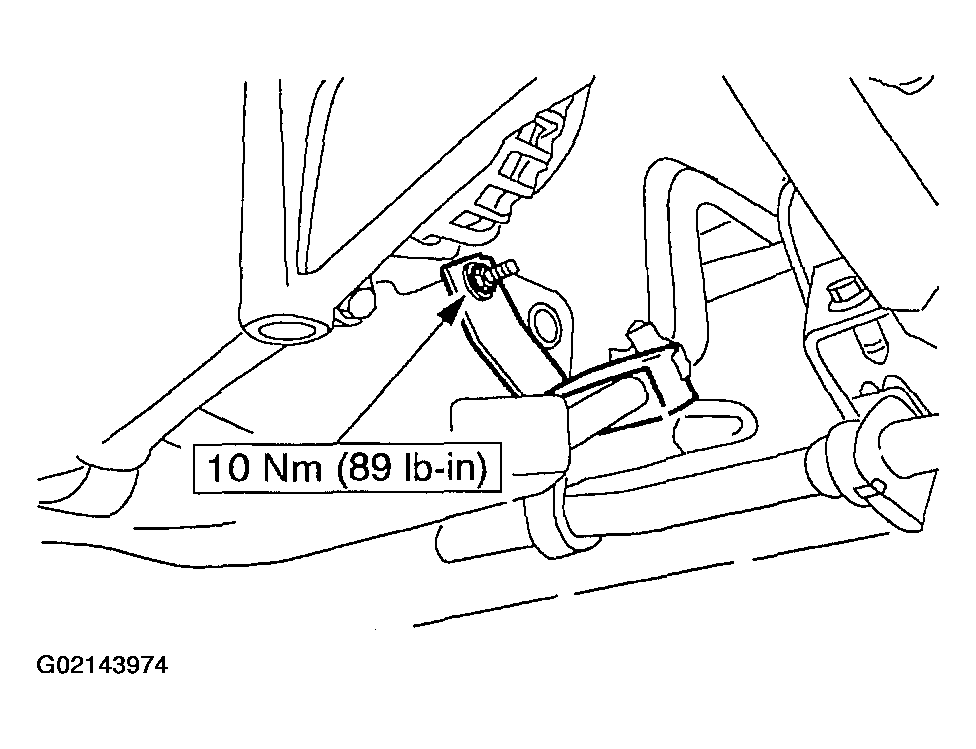

    Fig 6: Tightening Transmission Cooler Line Bracket
    G02143974
  7. Install the transmission cooler line bracket.
  8. Reconnect the digital transmission range (TR) sensor connector.

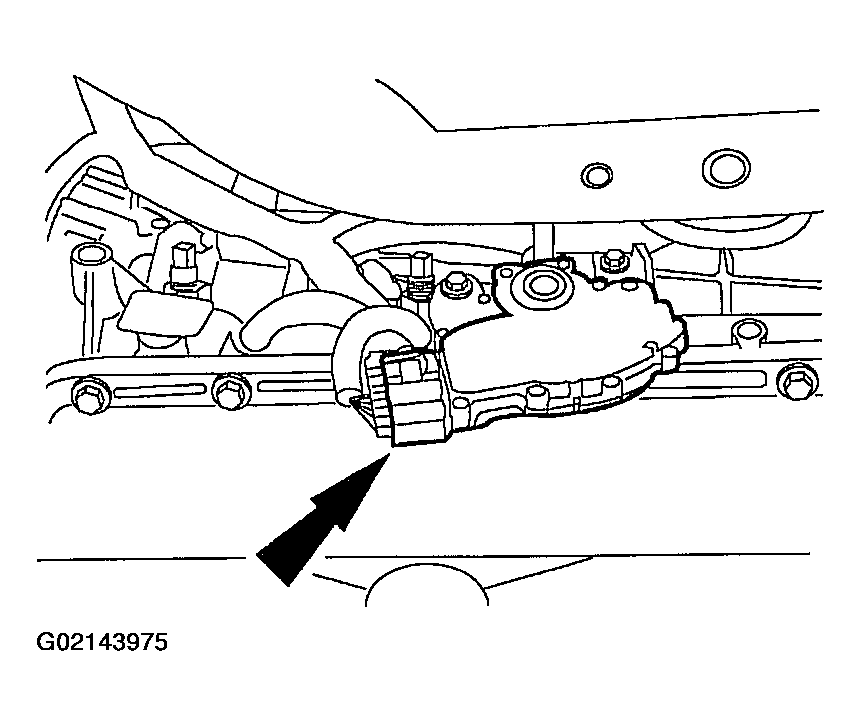

    Fig 7: Identifying Digital Transmission Range (TR) Sensor Connector
    G02143975
    9. CAUTION: Damage will occur to the solenoid body assembly if the screw is tightened above the specification.
    NOTE: Always install new O-ring seals on vehicle harness connector.
    NOTE: Clean the area around connector to prevent contamination of the solenoid body connector.
    NOTE: Use petroleum jelly to lubricate the O-ring seals to aid in the installation process.

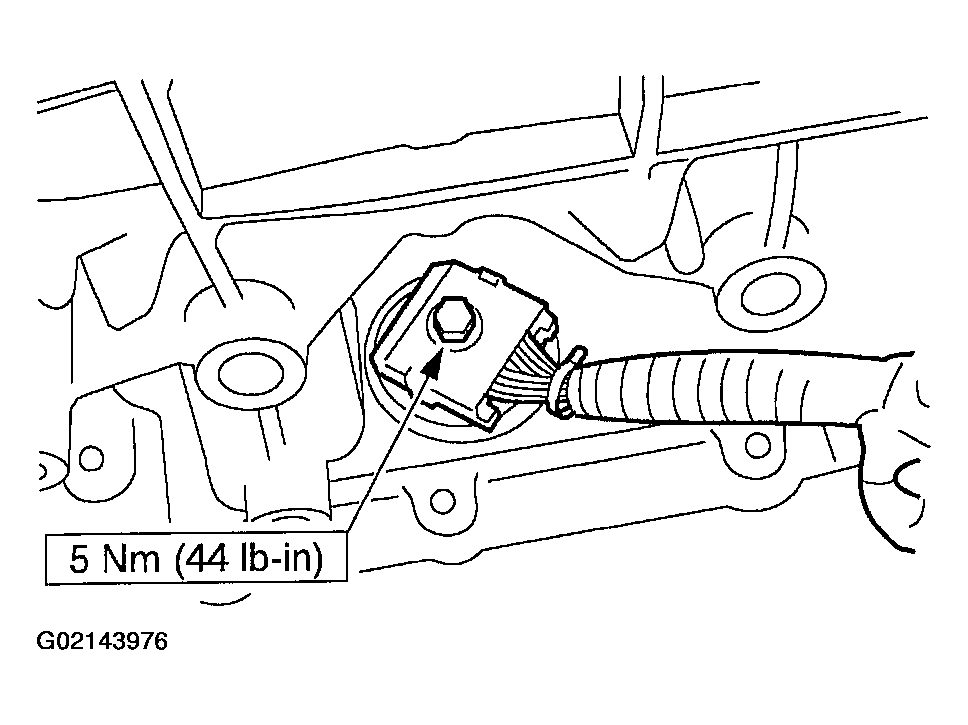

    Fig 8: Tightening Transmission Connector
    G02143976
  9. Install and lubricate new O-ring seals on the transmission connector and connect the connector.
  10. Install the shift cable bracket.

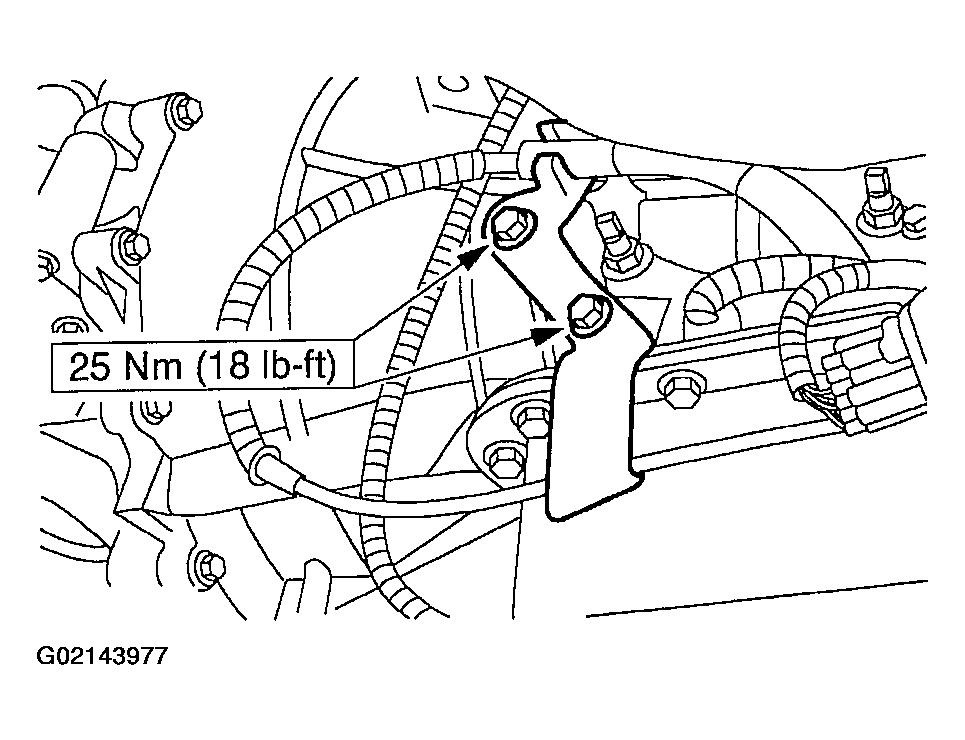

    Fig 9: Tightening Shift Cable Bracket
    G02143977
  11. Connect the shifter cable.

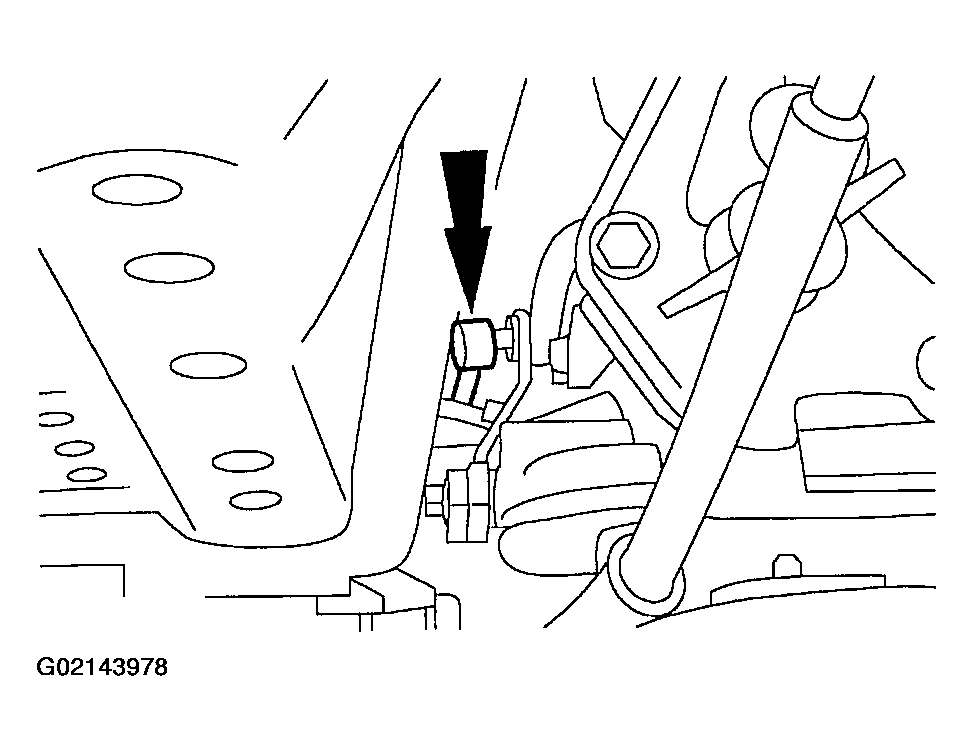

    Fig 10: Identifying Shifter Cable
    G02143978
  12. Install the heated oxygen sensor (HO2S) connector.

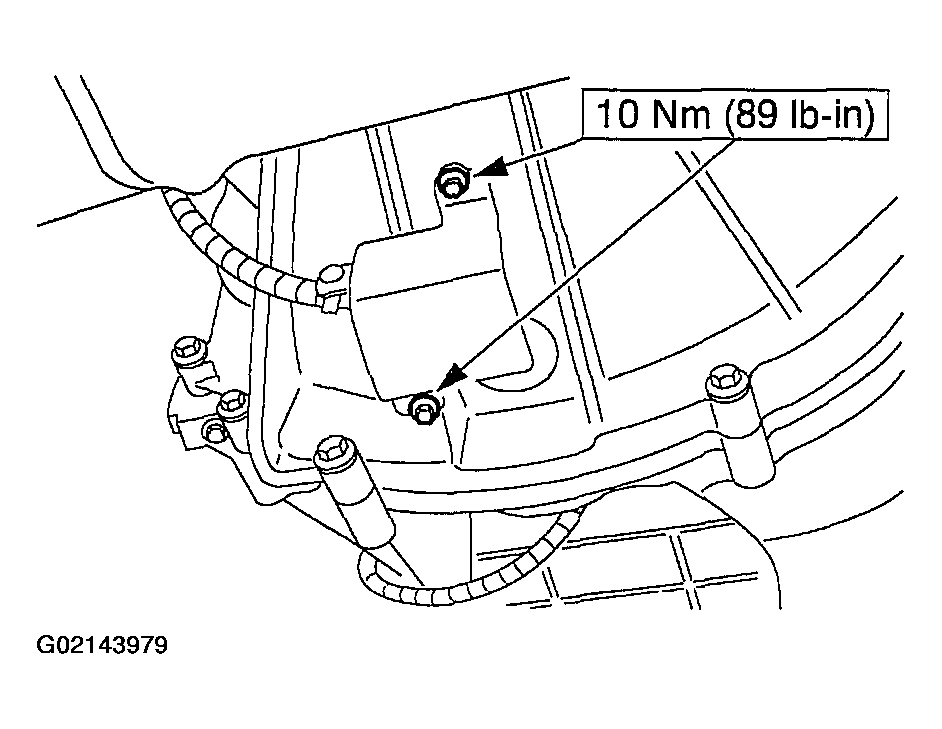

    Fig 11: Tightening Heated Oxygen Sensor (HO2S) Bolts
    G02143979
  13. Connect the harness retainer.
    Fig 12: Identifying Harness Retainer
    G02143980
  14. Connect the harness retainer.

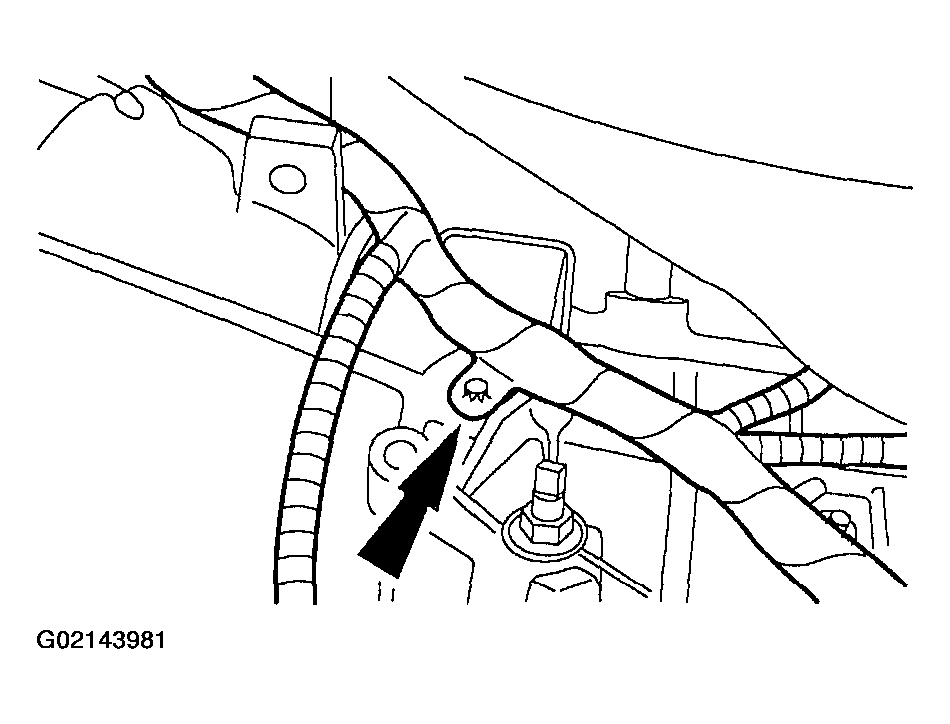

    Fig 13: Connecting Harness Retainer
    G02143981
  15. Install the harness screw.

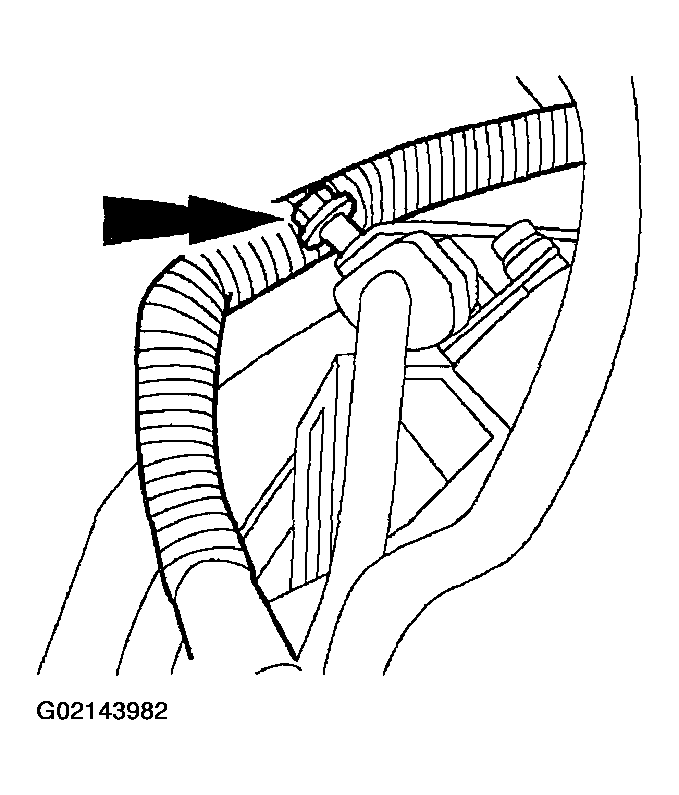

    Fig 14: Identifying Harness Screw
    G02143982
  16. Connect the turbine shaft speed (TSS) sensor, output shaft speed (OSS) sensor, and intermediate shaft speed (ISS) sensor electrical connectors.

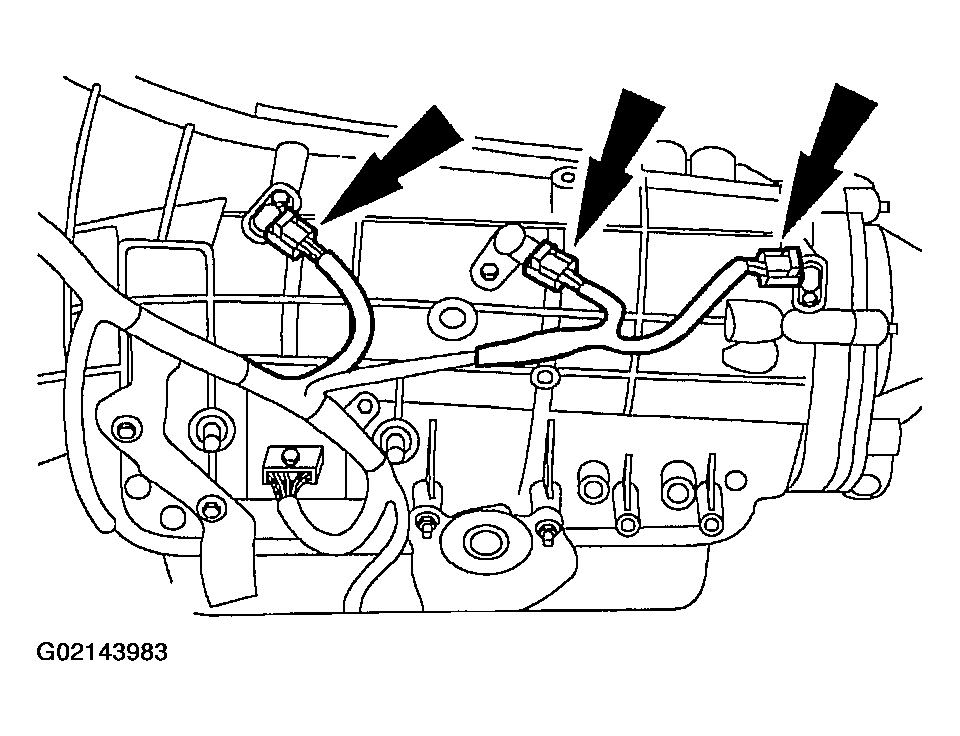

    Fig 15: Identifying Turbine Shaft Speed (TSS) Sensor, Output Shaft Speed (OSS) Sensor, & Intermediate Shaft Speed (ISS) Sensor Electrical Connectors
    G02143983
  17. Install the rear transmission mount.

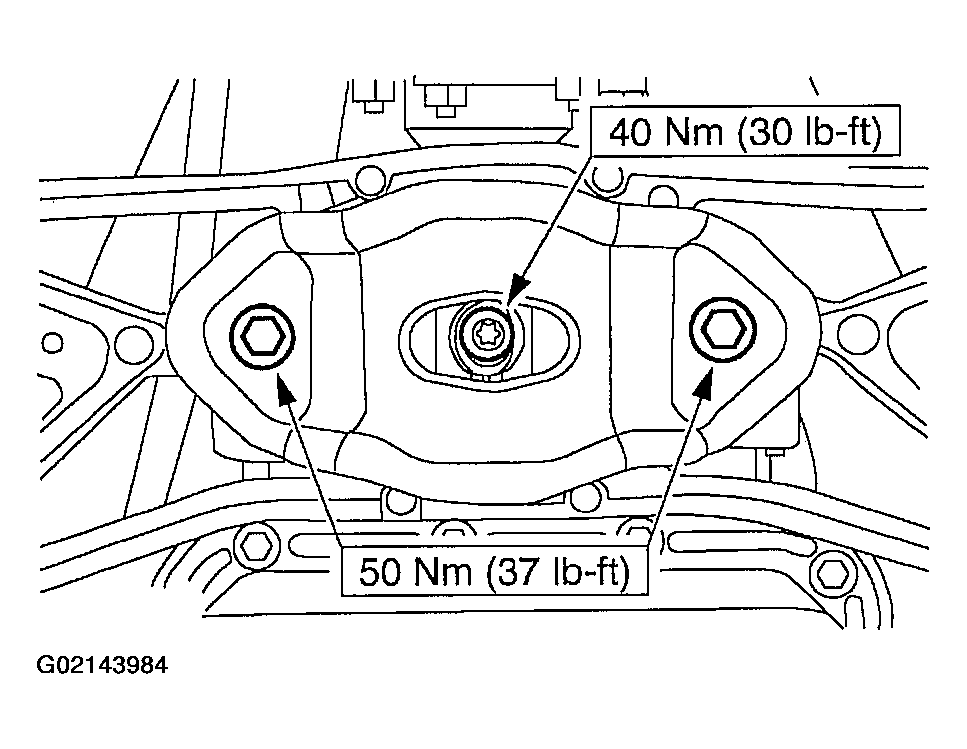

    Fig 16: Tightening Transmission Mount Bolts
    G02143984
  18. Install the shift cable.

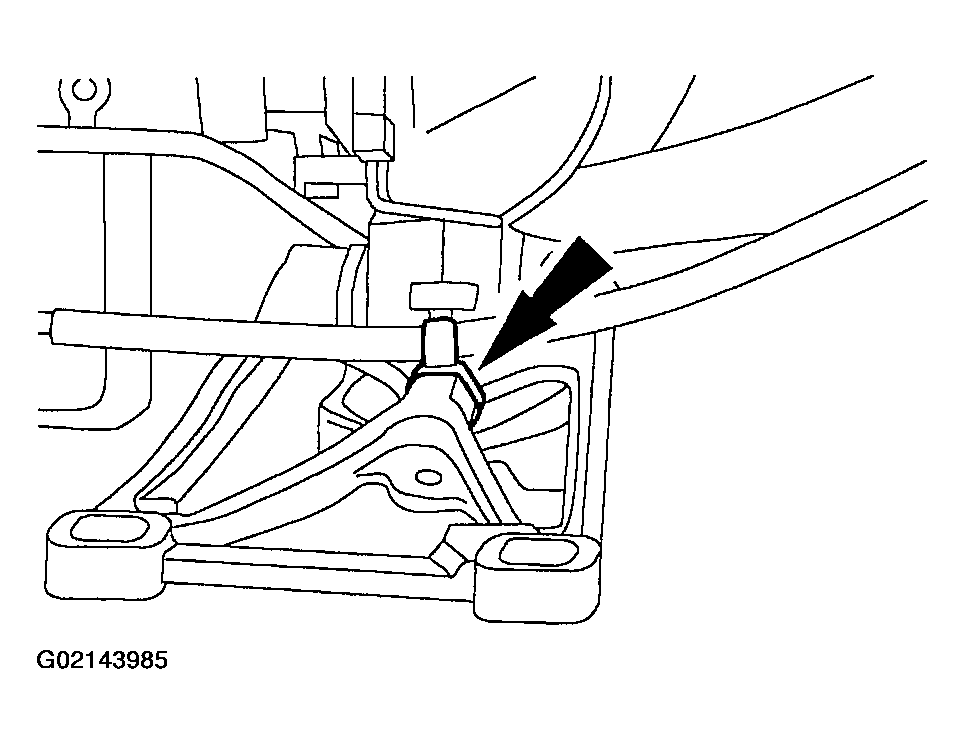

    Fig 17: Identifying Transmission Shift Cable Retainer
    G02143985
  19. Install the rear transmission mount.

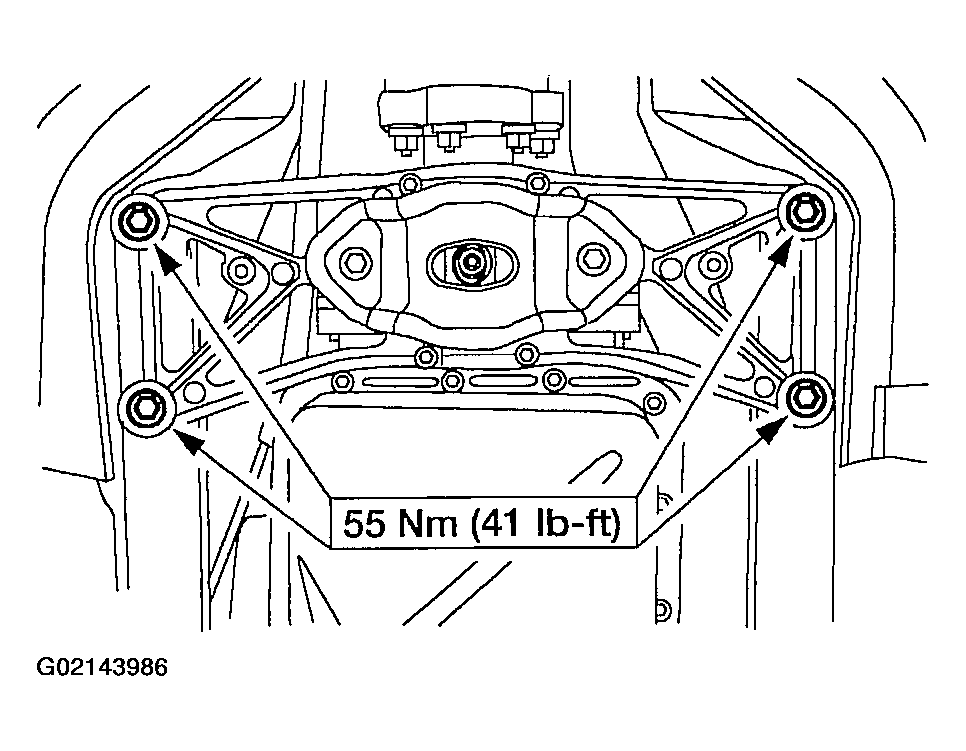

    Fig 18: Tightening Transmission Crossmember Bolts
    G02143986
  20. Remove the transmission jack.
  21. Add one gram of grease to both alignment bushing cavities.
  22. Loosen the nut and slide the front shaft assembly forward.
    Fig 19: Loosening Driveshaft Nut & Sliding Front Shaft Assembly Forward
    G02143987
    23. CAUTION: Align the index marks or driveshaft imbalance can occur.

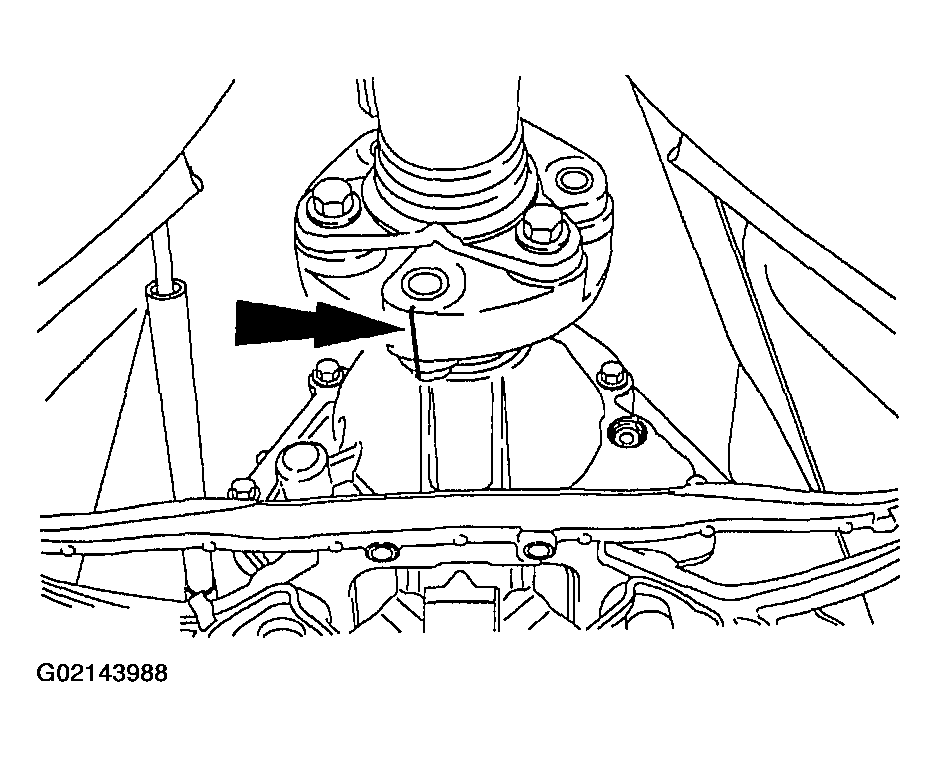

    Fig 20: Identifying Alignment Mark
    G02143988
  23. Align index marks and position the alignment bushing on the transmission flange piloting system.
    24. CAUTION: Install the bolts, washers and nuts in their original positions or driveshaft imbalance can occur. Install the driveshaft flex coupling bolts with the head of the bolt seated against the flange, and the nuts seated against the flex coupling. Install the short bolts in the front and the long bolts in the rear.
    NOTE: The bolt heads are serrated. Hold the bolt and tighten the nut.

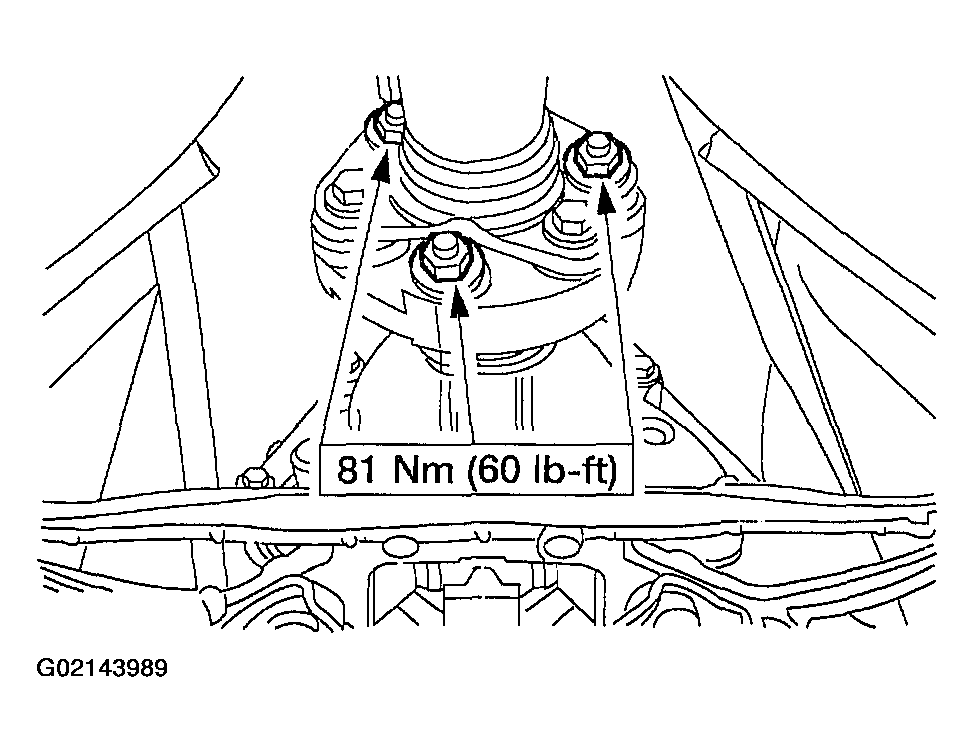

    Fig 21: Tightening Driveshaft Flex Coupling Bolts
    G02143989
  24. Install the bolts, washers and nuts.
    • Coat the nut and bolt threads with threadlock sealer.
  25. Using the special tools, tighten the nut.

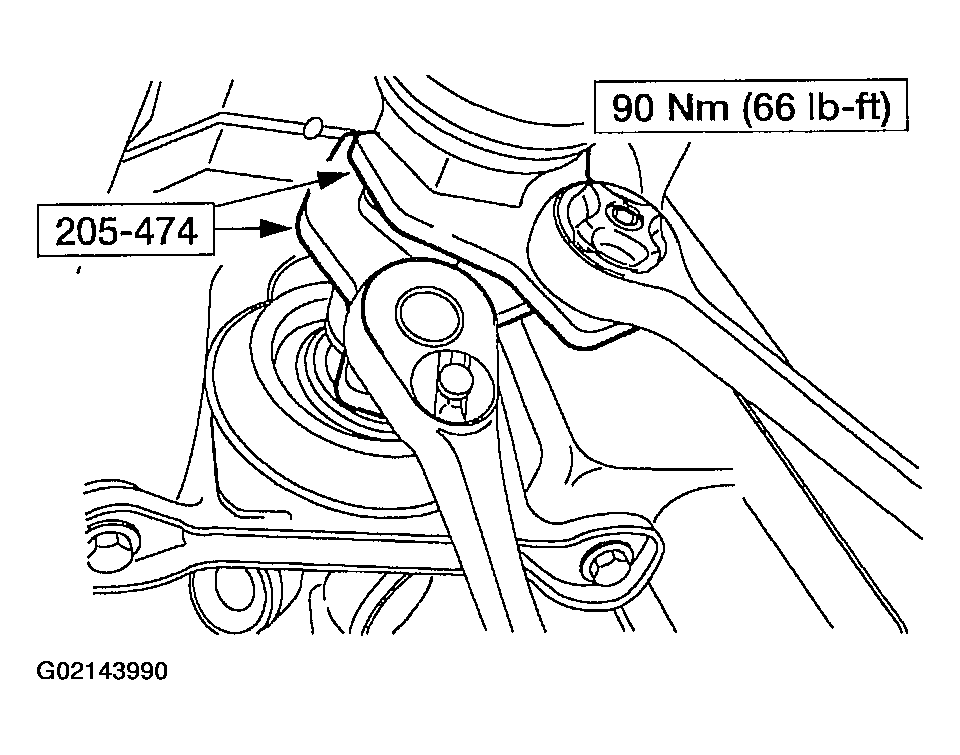

    Fig 22: Tightening Driveshaft Nut
    G02143990
  26. Install the heat shield.

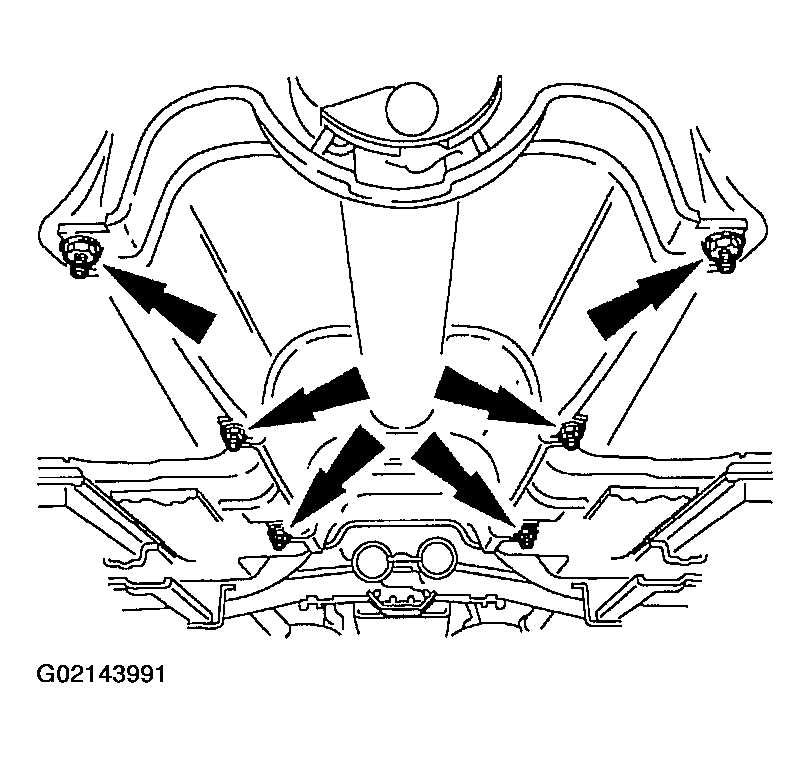

    Fig 23: Identifying Heatshield Retainers
    G02143991
  27. Lower the vehicle.
    28. NOTE: When the battery is disconnected or a new battery installed, certain transmission operating parameters can be lost. The powertrain control module (PCM) must relearn these parameters. During this learning process, you may experience slightly firm shifts, delayed, or early shifts. This operation is considered normal and will not affect the function of the transmission. Normal operation will return once these parameters are stored by the PCM.
  28. Connect the battery ground cable.
  29. Raise and support the vehicle.
  30. Carry out the fluid level check. For additional information, refer to FLUID LEVEL CHECK .
  31. Verify that the shift cable is correctly adjusted. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - EXTERNAL CONTROLS - LS .
  32. Check the operation of the transmission and inspect for leaks.
