Removal & Installation

  1. Raise and support the vehicle.
  2. Support the transmission with a transmission jack.
  3. Remove the bolts.

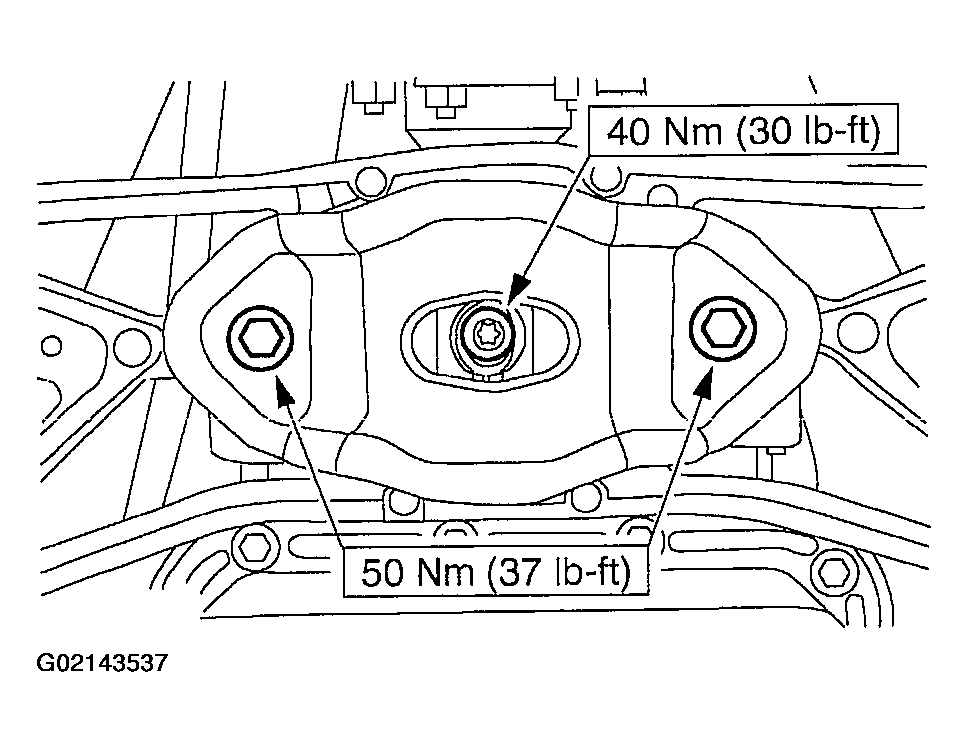

    Fig 1: Identifying Transmission Mount Bolts
    G02143537
  4. To install, reverse the removal procedure.
